Summary of Contents for Bartscher IK 20TS

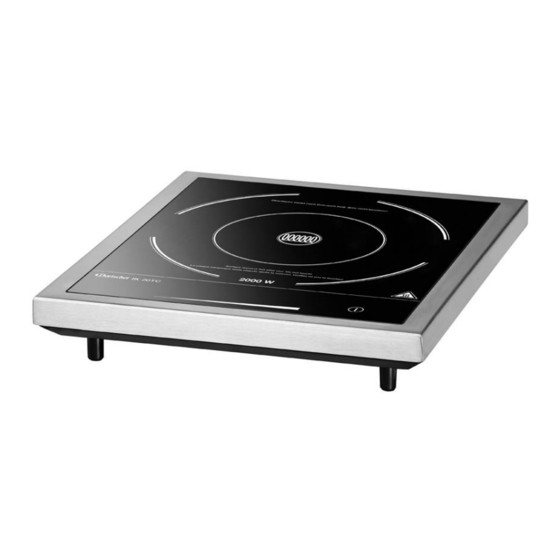

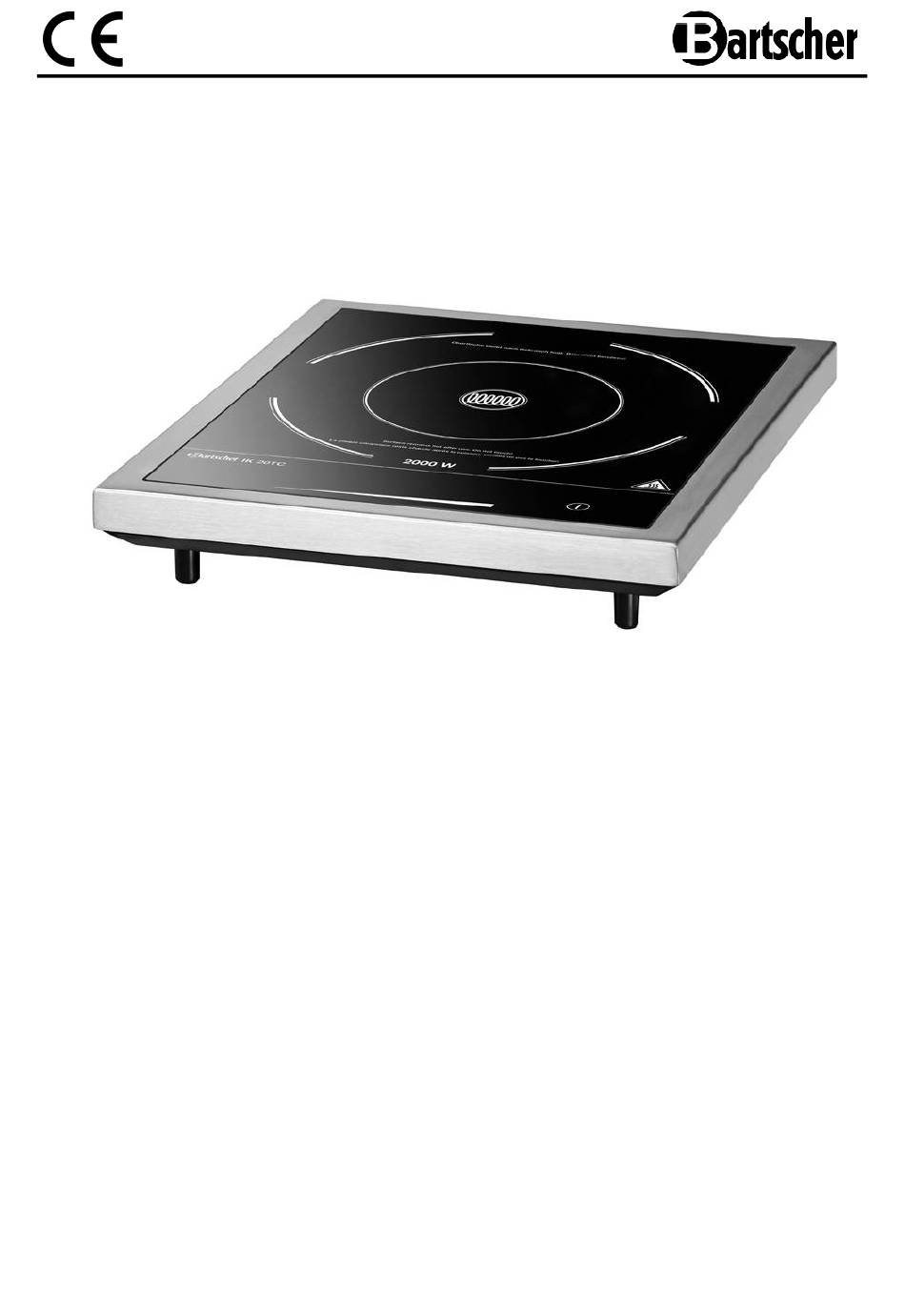

- Page 1 IK 20TS / 105848 V1/0415...
-
Page 2: Table Of Contents
6.1 Functionality of induction cookers ................ 33 6.2 Suitable and unsuitable cookware ................ 33 6.3 Operation instructions................... 35 7. Cleaning ........................39 8. Possible Malfunctions .................... 39 9. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Key To Symbols
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken. • Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. -
Page 5: Hazard Sources
WARNING! HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! To avoid them please follow the instructions. CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. - Page 6 Never operate the device with moist hands or standing on wet floor. Remove the plug from its socket: when the device is not used, in case of anomalies during operation, before cleaning. DANGER! Suffocation hazard! To avoid the hazard results please follow the instructions below. Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.
- Page 7 WARNING! Explosion hazard! To avoid the hazard results please follow the instructions below. Do not place any flammable plastic containers or acidic and basic materials near the device as it may limit its life and cause deflagration during the activation. Do not heat closed containers, e.g.
-
Page 8: Intended Use
.4 Intended use Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. The device is not suitable for continuous commercial use. The device is intended for home use or in similar places such as: in kitchens for store or office employees or in other service locations;... -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Technical data Name Induction cooker IK 20TC 105848 Code-No.: Material: glass hob, stainless steel body Timer: 0 - 180 min Temperature range: 60 ° C - 240 ° C Power levels: 8 (500 - 2000 W) Power: 2000 W / 220-240 V 50/60 Hz Dimensions:... -
Page 12: Functions Of Control Elements And Indicators
4.3 Functions of control elements and indicators ① ④ ② ⑤ ③ ⑧ ⑨ ⑦ ⑥ ① Operation mode indicator → it indicates the current mode of the device’s operation (power, power + timer, temp, temp + timer) ② Digital display of power, time and temperature →... -
Page 13: Installation
5. Installation 5.1 Positioning • Before the operation unpack the device and remove all package material. CAUTION! Never remove the rating plate and any warning signs from the device. • Place the device on top of an even, stable, dry, and water-resistant surface which supports the weight of the device and is not heat sensitive. -
Page 14: Operation
6. Operation 6.1 Functionality of induction cookers With induction cooker, an electric voltage is applied on a conductor spool beneath the glass. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect. This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass. - Page 15 2.7 litres ● Ø 18 cm ● height 11.0 cm 5.1 litres ● Ø 24 cm ● height 11.5 cm 6.1 litres ● Ø 20 cm ● height 20.0 cm Bartscher code-no. A130442 Unsuitable cookware o vessels with round bottom;...
-
Page 16: Operation Instructions
6.3 Operation instructions • Before the device operation clean it according to the instructions in section 7 „Cleaning “. CAUTION! Do not place empty cookware on the cooking surface. Heating an empty pot or pan will activate the overheating protection mechanism, an audio signal will sound and the device will switch off. - Page 17 Power mode • Press the function key . The device switches to the Power mode. Pre-set value of 1300 W is displayed. The function key is lit constantly and the device is in the operation mode. „Power“ and pan detection indicators are lit.
- Page 18 • Thanks to the device’s memory function, the previously set power level will remain unchanged. • „Power“ and „Timer“ indicator lights will come on. The time is counted down at 1-minute intervals, whereas the digital display shows alternately the power value and the remaining time.
- Page 19 • „Temp“ and „Timer“ indicator lights will come on. The time is counted down at 1-minute intervals, whereas the digital display shows alternately the temperature value and the remaining time. • When the set time runs out, an audio signal will sound and the device will be automati- cally switched off.
-
Page 20: Cleaning
7. Cleaning CAUTION! Disconnect the unit from the power supply (unplug!) before cleaning. The unit is not designed to be rinsed with running water. Do not use a pressure washer to clean the device! Be careful and do not let the water into the unit. o Clean the device regularly. -
Page 21: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
