Installation Instructions

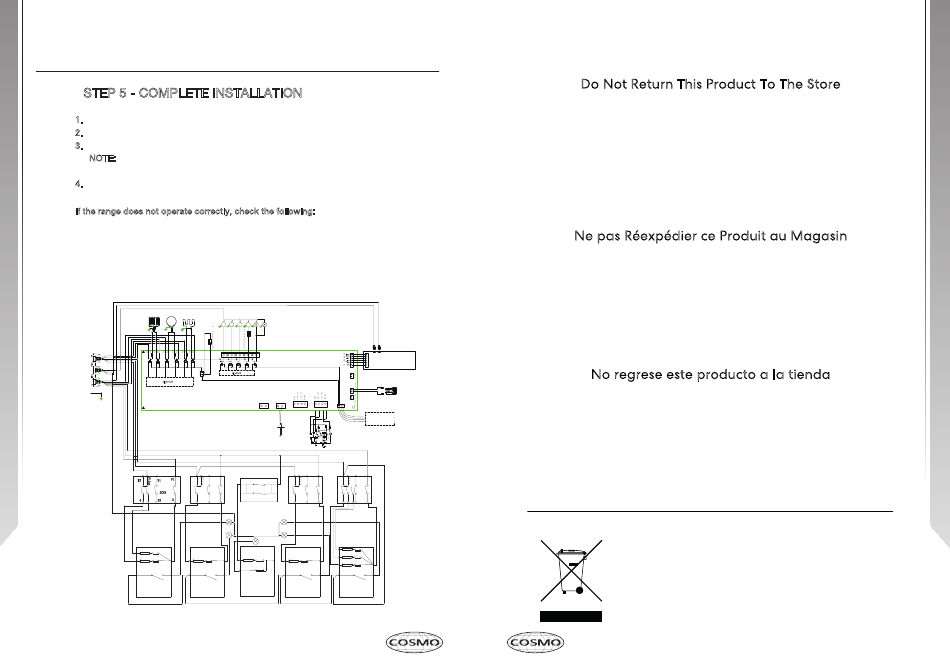

STEP 5 - COMPLETE INSTALLATION

1. Reconnect power at the circuit breaker or fuse box.
2. Turn on each element to check that it is heating correctly.
3. Turn on the oven to check that it is heating correctly.
NOTE: When the range has been on for 5 minutes, check for heat. If range is
cold, turn off the range and contact a qualified technician.
4. Check that the indicator lights on the control panel, and the interior oven
lights illuminate correctly.
If the range does not operate correctly, check the following:
•
Household fuse is intact and tight; or circuit breaker has not tripped.
•
Range is plugged into a grounded outlet.
•
Electrical supply is connected.
Contact a qualified electrician to verify the electrical supply.
Circuit Diagram
Back g rill Bottom G rill
Top Grill
L1(RED)
N(WHITE)
L2(BLACK)
G(GREEN)
P2
S1
SCER
4a
4 S2 2
4a
4 2 4
H S H
SCHE SCHE
22
24
Cyc
High Low
Cool fan Cool fan fan Latch Lamp
M M M M
1 2 3 4
L N
PCB BOARD
Baffle
GND
A Plug
Probe
PCB BOARD GND
Probe
B Plug
GND
down sensor up sensor
TO_DISP
Latch_door2 Latch_door1
DISPLAY
P1 P2 P1 P2 P1
S1
S1
2a 1
SCER SCER
1a 2
4 S2 2 4 4b 4a S2 2
HIL
HIL
HIL
HIL
HIL
4b
4a
2 P1 4 2
4 2
S H S H S
SCHE SCHE
If you have a problem with this product, please contact COSMO Customer
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
UNE PREUVE D'ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
Si tiene algún problema con este producto, por favor contacte el ayuda al
Probe socket
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE MODELO Y DE
IMPORTANT
Do Not Return This Product To The Store
Support at
+1 (888) 784-3108
WARRANTY SERVICE.
IMPORTANT
consommateurs Cosmo Customer Support au
+1 (888) 784-3108
IMPORTANTE
No regrese este producto a la tienda
cliente COSMO al
+1 (888) 784-3108
(Válido solo en E.U.A.)
SERIE PARA EL SERVICIO DE LA GARANTÍA.
Correct disposal of this product:
This marking indicates that this appliance should not be
disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
