Summary of Contents for GLP impression S500 Profile HO/HC

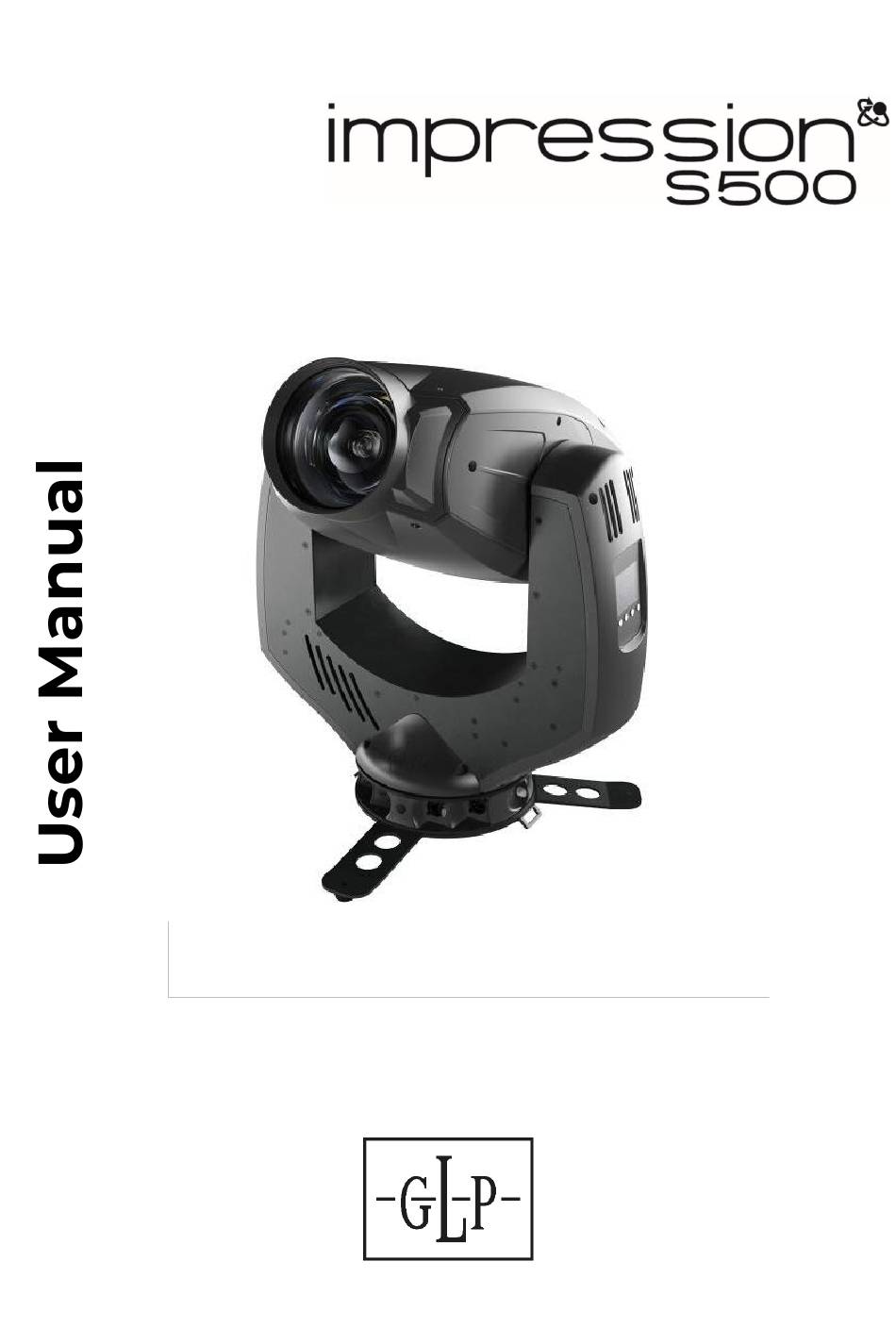

- Page 1 Profile HO/HC Document revision: 20250116-01 Fixture software version 0.4.3...
-
Page 2: Document Revisions
GLP® impression S500 Profile HO/HC User Manual © 2025 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries. -
Page 3: Table Of Contents
Safety............................4 Key to symbols ......................4 GLP Service and Support ..................5 Avoiding damage to the fixture ................ 5 impression S500 Profile HO/HC overview ............6 Features ..........................7 Control options ......................7 User setting presets ....................7 Pan and Tilt ........................8 Fixture performance (speed) options ............ -
Page 4: Safety
If you have any doubts or questions about how to use the GLP® impression S500 Profile HO/HC lighting fixture safely, contact your GLP supplier for assistance. Your GLP supplier will be happy to help. -
Page 5: Glp Service And Support
Read the fixture’s Quick Start and Safety Manual and familiarize yourself with the safety precautions that it contains. GLP and affiliated companies will take no responsibility for damage or injury resulting from disregard for the information in the user documentation. -
Page 6: Impression S500 Profile Ho/Hc Overview
2. impression S500 Profile HO/HC overview Figure 1. Impression S500 Profile HO/HC overview A - Head B - Tilt Lock C - Control panel with backlit display and NFC sensor (on side) D - Base with Safety Cable attachment points... -
Page 7: Features
Control options The impression S500 Profile HO/HC is compatible with DMX 512, RDM, Art-Net, sACN and can be fitted with a Lumenradio CRMX module. When receiving Art-Net, sACN or CRMX the fixture can output the received data to the DMX XLR port for use by other fixtures (Ethernet Config →... -
Page 8: Pan And Tilt
Pan and Tilt The impression S500 Profile HO/HC has motorized pan and tilt movement with coarse and fine (16 bit) control channels. Direction of movement With the fixture standing on the ground: • Increasing Pan moves yoke clockwise from home position. -
Page 9: Shutter
Special/Control DMX channel are also available via RDM. Zoom The impression S500 Profile HO/HC has motorized zoom control that lets you vary the beam angle from wide to narrow as the DMX value increases. You can invert this using the Fixture Settings → Zoom Invert option. -
Page 10: Focus
CMY controls. 0: Open 1: Congo Blue (UV) 2: Green 3: Orange 4: Magenta 5: Blue 6: CTC 1 7: CTC 2 8: CTC 3 (High CRI) 9: Minus green 10: Red impression S500 Profile HO/HC User Manual... -
Page 11: Gobo Wheel 1 (Rotating Gobos)
German Light Products® Gobo Wheel 1 (rotating gobos) Gobo Wheel 1 has seven rotatable gobos. Each gobo can be positioned at a fixed index position or can be continuously rotated. It is possible to rotate the full gobo wheel through all gobos. 0: open (not shown) 1: Crazy loops 2: Block of lines... -
Page 12: Framing
The variable frost allows you to soften the edges of the projected light beam. There are 2 ranges of frost, light and medium. Prism The fixture has an 8-facet prism which can be continuously rotated in either direction. impression S500 Profile HO/HC User Manual... -
Page 13: Control Panel
German Light Products® 4. Control panel Warning! DMX control is disabled when the control menus are active. Be prepared for the head to move as soon as you exit the control menus. The control panel and backlit graphic LCD display with self-charging battery allow you to change fixture settings, view readouts and use utilities quickly and intuitively, even when the fixture is disconnected from power. -
Page 14: Using The Control Panel
UP – Scrolls up or increments a number DOWN – Scrolls down or decreases a number ENTER – Confirms a setting or implements a command At any time: UP and DOWN at the same time – Temporarily rotates the display 180° impression S500 Profile HO/HC User Manual... -
Page 15: Control Button Shortcuts
The display flashes if the DMX signal is lost (the fixture will then behave according to its No Signal setting. Service and maintenance See the separate impression S500 Profile HO/HC Quick Start and Safety Manual supplied with the fixture and available for download from www.glp.de for information on service and maintenance. -
Page 16: Control Menu Structure
Displays Message: Fixture may address, protocol type, lose connection to controller Ethernet / CRMX configuration, Load Factory Defaults (!) user offsets and user presets). >>>Confirm<<< Important! The fixture may lose contact with the controller! impression S500 Profile HO/HC User Manual... -
Page 17: Main Menu
German Light Products® Main menu The following menus and commands are available in the impression S500 Profile HO/HC control panel. Options may also be set by RDM. Some options can be changed while operating using the Control/Settings channel. Menus Notes DMX Address Set fixture’s DMX start... - Page 18 Tilt Invert Reverse tilt movement Invert zoom so 0=wide, Zoom Invert 255=narrow Position Enable/disable /tilt position feedback correction Pan Disable Disable pan motors Tilt Disable Disable tilt motors Normal Normal=540° Pan Range Extended=565° Extended impression S500 Profile HO/HC User Manual...
- Page 19 German Light Products® Menus Notes Display dims after a short Auto period of inactivity if no errors and valid DMX signal Display Mode Display constantly on Display dims even if there are errors / no DMX signal Display automatically Auto inverts to match installation position Display...
- Page 20 DMX link Load factory defaults Reloads all factory default settings and default fixture >>>Confirm by pressing Enter<<< configuration settings. Important! Controller may lose connection to fixture! Default settings are written in BOLD type. impression S500 Profile HO/HC User Manual...
- Page 21 German Light Products® Rev. 20250116-02...
