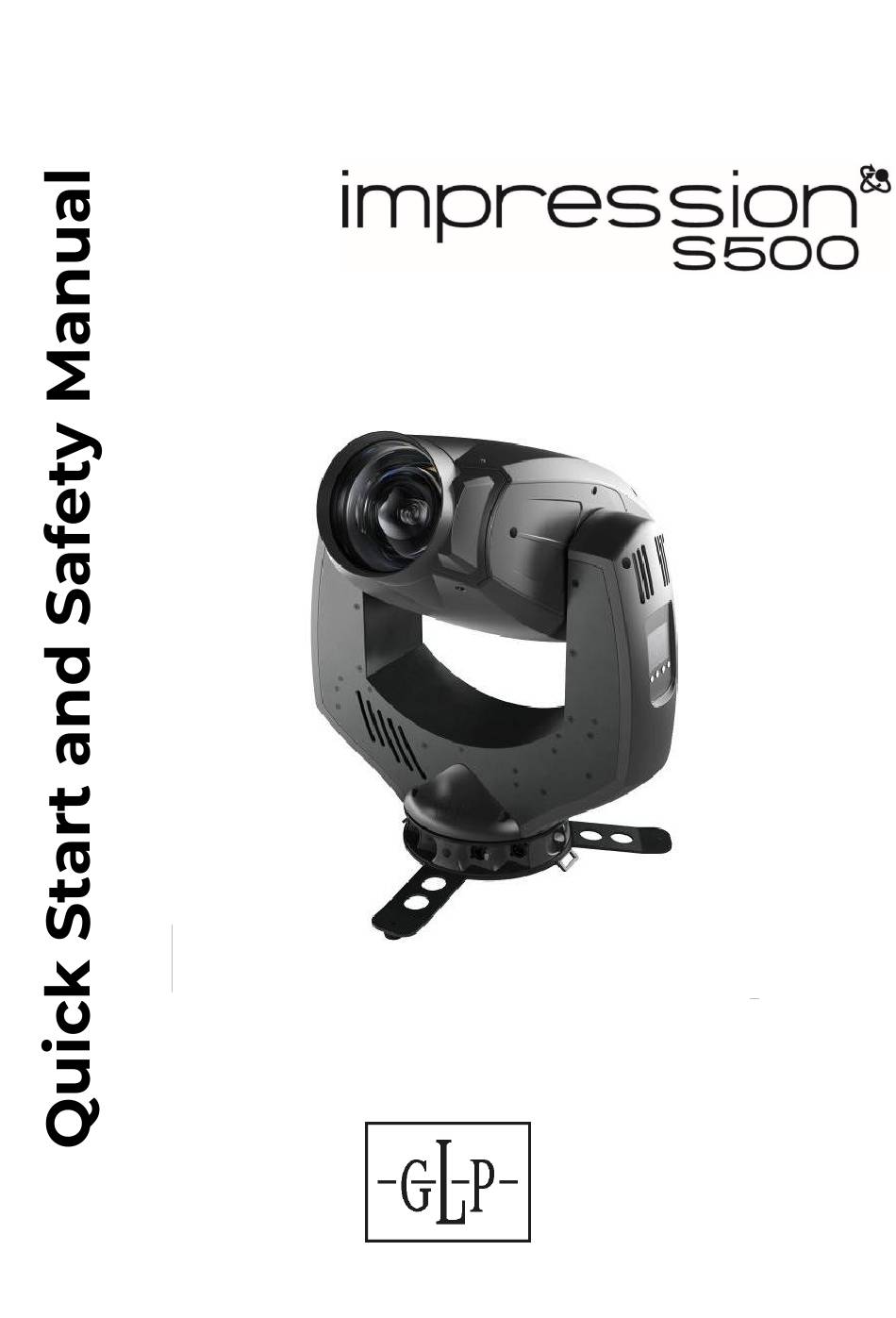

- Page 1 Profile HO/HC Software v.0.4.3 Rev. 20250116-01...
-
Page 2: Document Revisions
GLP® impression S500 Profile HO/HC Quick Start and Safety Manual © 2025 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries. -
Page 3: Table Of Contents
Avoiding damage from light sources and heat ......10 Avoiding damage from dust and airborne particles ....11 Transportation and storage ..............11 3. impression S500 Profile HO/HC overview .......... 12 4. Features ........................13 User Manual ...................... 13 Tilt lock ......................... 13 5. -
Page 4: Safety
General safety information Read this manual carefully before installing, using or servicing the GLP impression S500 Profile HO/HC lighting fixture. If you have any doubts or questions about how to use the fixture safely, contact your GLP®... - Page 5 • Check the GLP website at www.glp.de and make sure that you have the latest version of this manual. Check the fixture software version indicated on page 2 of this manual and then use the fixture’s control panel to check the version installed...
-
Page 6: Electrical Safety
Do not reapply power until the fixture has been repaired and made safe by a technician authorized by GLP. • Check that all power distribution equipment, cables and connectors are in perfect condition, rated for the electrical requirements of all connected devices, suitable for their application and suitable for the installation environment. -
Page 7: Eye Safety
• Do not stick filters, masks or other materials onto the fixture unless they are supplied or approved by GLP. Do not block the light output in any way. The front surface becomes hot during operation and can melt or ignite objects that are in contact with the surface. -
Page 8: Installation Safety And Protection From Personal Injury
Do not attempt to use a fixture that is obviously damaged. • Do not modify the fixture in any way not described in its user documentation. • Install genuine GLP parts only. Waste disposal As a consumer, you are required to return end-of-life devices to the manufacturer or to a designated collection point for the disposal of electrical and electronic equipment in order to ensure environmentally-friendly disposal. - Page 9 This reduces waste and protects the environment. Dispose of the packaging in an environmentally-friendly manner at a designated collection point. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
-
Page 10: Avoiding Damage To The Fixture
2. Avoiding damage to the fixture Important! Follow the directions in this section carefully, or the fixture may suffer damage that is not covered by the product warranty. General precautions • Do not drop the fixture or expose it to mechanical stress. -
Page 11: Avoiding Damage From Dust And Airborne Particles
- Do not aim other high-powered lighting fixtures directly at the fixture. • Do not operate the fixture in ambient temperatures outside the range 5° C (41°F) to 45° C (113°F). • Allow free airflow around the fixture. Avoiding damage from dust and airborne particles •... -
Page 12: Impression S500 Profile Ho/Hc Overview
3. impression S500 Profile HO/HC overview Figure 2. Impression S500 Profile HO/HC overview A - Head B - Tilt Lock C - Control panel with backlit display and NFC sensor (on side) D - Base with Safety Cable attachment points... -
Page 13: Features
The impression S500 Profile HO/HC has a tilt lock that can be used to stop the head moving while you are carrying or servicing the fixture. - Page 14 You can lock the head in either vertical or horizontal position. See Figure 3. The lock button is located on the side of the yoke. To engage the lock: Check that power to the fixture is shut down. Move the head into either vertical or horizontal position.
-
Page 15: Installation
Note the requirement to secure lighting fixtures with safety cables in temporary installations. Mounting options An impression S500 Profile HO/HC fixture may be installed in one of the following ways: Standing horizontally on a horizontal surface. -
Page 16: Standing The Fixture On A Horizontal Surface
Make sure that the head will not collide with anything when it tilts and pans. Installing on a rigging truss or similar structure You can suspend an impression S500 Profile HO/HC fixture from a rigging truss or pipe using the two omega brackets supplied with the fixture and rigging clamps that are available from GLP as optional accessories. - Page 17 To install the impression S500 Profile HO/HC on a rigging truss or pipe using the supplied Omega brackets: Check that the truss or pipe is secure and can safely hold ten times the weight that it will support. See Figure 6. Bolt a...
-
Page 18: Ac Mains Power
The impression S500 Profile HO/HC does not have a power ON/OFF switch. Power is applied to the fixture as soon as the power cable becomes live. - Page 19 If you need to install a powerCON TRUE1 TOP connector on a power cable, follow the instructions given in the Support area of the Neutrik website at www.neutrik.com. Respect the color coding used in the supplied power cable and in your local mains power wiring system.
-
Page 20: Connecting To Control System
We recommend the use of digital 110 Ohm DMX cable with original Neutrik 5-pin TOP-type XLR connectors. If you would like advice with planning and installing a DMX link, your GLP supplier will be happy to provide assistance. Art-Net and sACN control The impression S500 Profile HO/HC supports Art-Net and sACN control over an ethernet network connected to either of the etherCON connectors. -
Page 21: Starting And Stopping Operation
8. Starting and stopping operation Warning! Before you apply power to the impression S500 Profile HO/HC or operate it after a blackout, make sure that nobody is looking directly into the front of the fixture and that there is sufficient clearance for the head to move safely. -
Page 22: Service
Damage caused by lack of maintenance, improper service or improper cleaning is not covered by the product warranty. The user can upload firmware (device software) using D3Prog or GLP iQ.Service. All other maintenance operations must be carried out by professionals or trained and qualified personnel. - Page 23 • GLP UK: +44 1392 690140 • GLP Asia: +852 (3151) 7730 • GLP Nordic: +46 737 57 11 40 Rev. 20250116-01...
-
Page 24: Technical Specifications
10. Technical specifications Light Source Type: White light LED Light Source Count: 1 Light Source Power: 380W Light Source Lifetime: 20,000h LED Refresh Rate: Low, Optimal (default), High 1, High 2, Max CCT: HC version 6,000K, HO version 7,000K... -
Page 25: Electrical Specifications
Software Update: DMX link Via DProg iQ.Mesh via Service App GLP iQ.Tool Performance Modes: fast, normal (balanced), smooth Dimming Curves: linear, soft, S-Curve Fan Modes: regulated, high, medium, low, minimum Others: Stand Alone 1 captured Scene No Signal: blackout, hold, stand alone scene... -
Page 26: Dimensions And Weight
Construction Features: baseless design, Tilt-Lock-System Shipping Tourpack: 2-way Flight Case Omega Brackets Dimensions & Weight Height (head vertical): 642 mm / 25.3 in Width (across yoke): 471 mm / 18.5 in Length: 230 mm / 9 in Weight: 26.9 kg / 57.4 lbs... -
Page 27: Dimensions
11. Dimensions impression S500 Profile HO/HC All dimensions are in millimeters Rev. 20250116-01... - Page 28 S500 Profile HO/HC Quick-Start and Safety Manual...
