5.4.Securing the Mounting Pole

Observe the bubble level next to the rain gauge to ensure the bubble is stable within
the circle, keeping the sensor array completely level. If the sensor array is not level,
the rain gauge will not measure accurately.

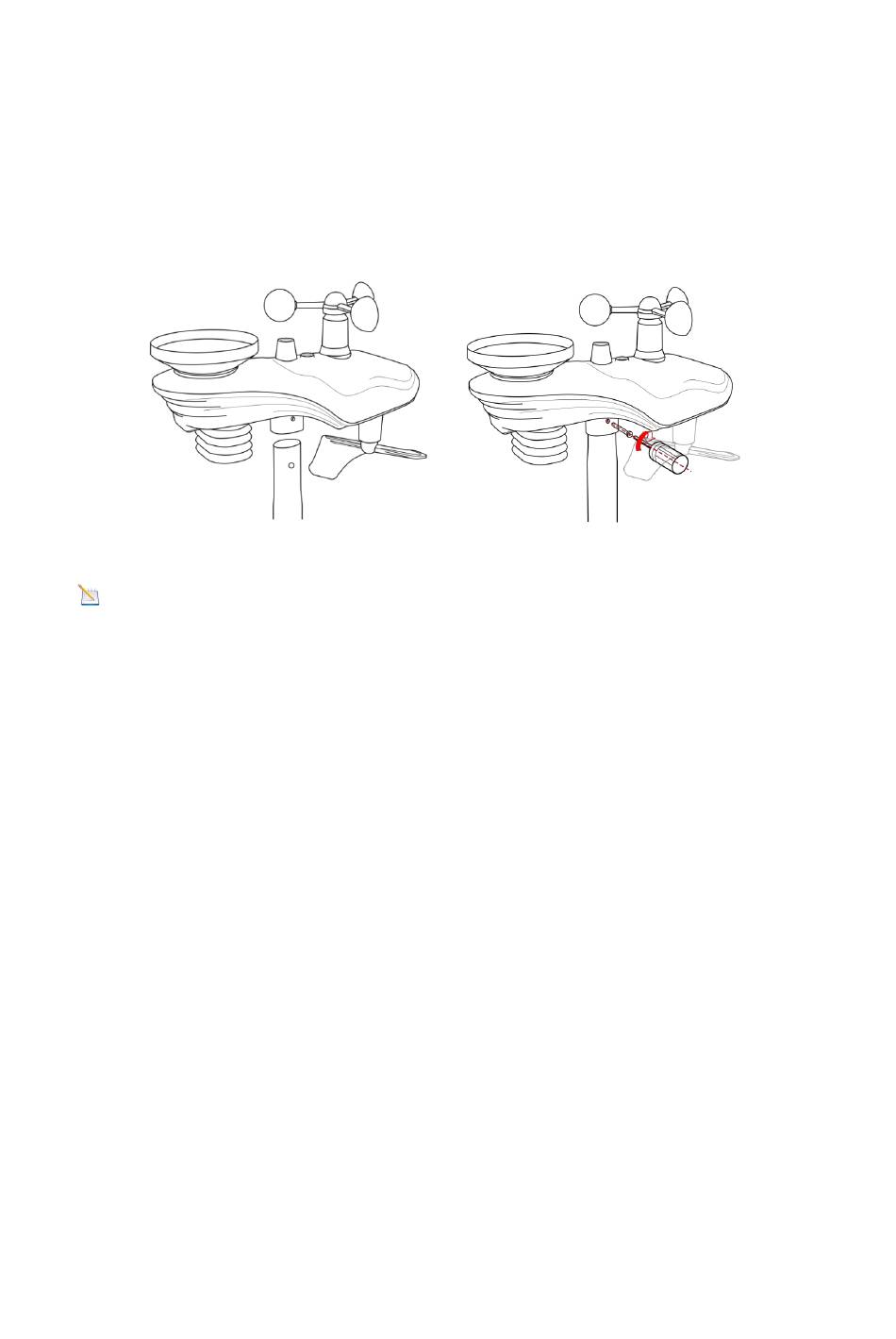

Figure 14
NOTE: If the bubble level cannot be read due to mounting limitations, a
horizontal line or level can be placed across the top of the rain gauge for easier
viewing.

5.4.1.Horizontal mounting and fixing sensors

Fasten the integrated outdoor sensor to the mounting bar bracket with two
mounting bolts (Ø4)/nuts (M3). Then, tighten the mounting bar to your existing
mounting bar with four bolts (Ø5) and nuts (M5) or secure it to a flat surface with
four self-tapping screws as shown. (Figure 15 )
