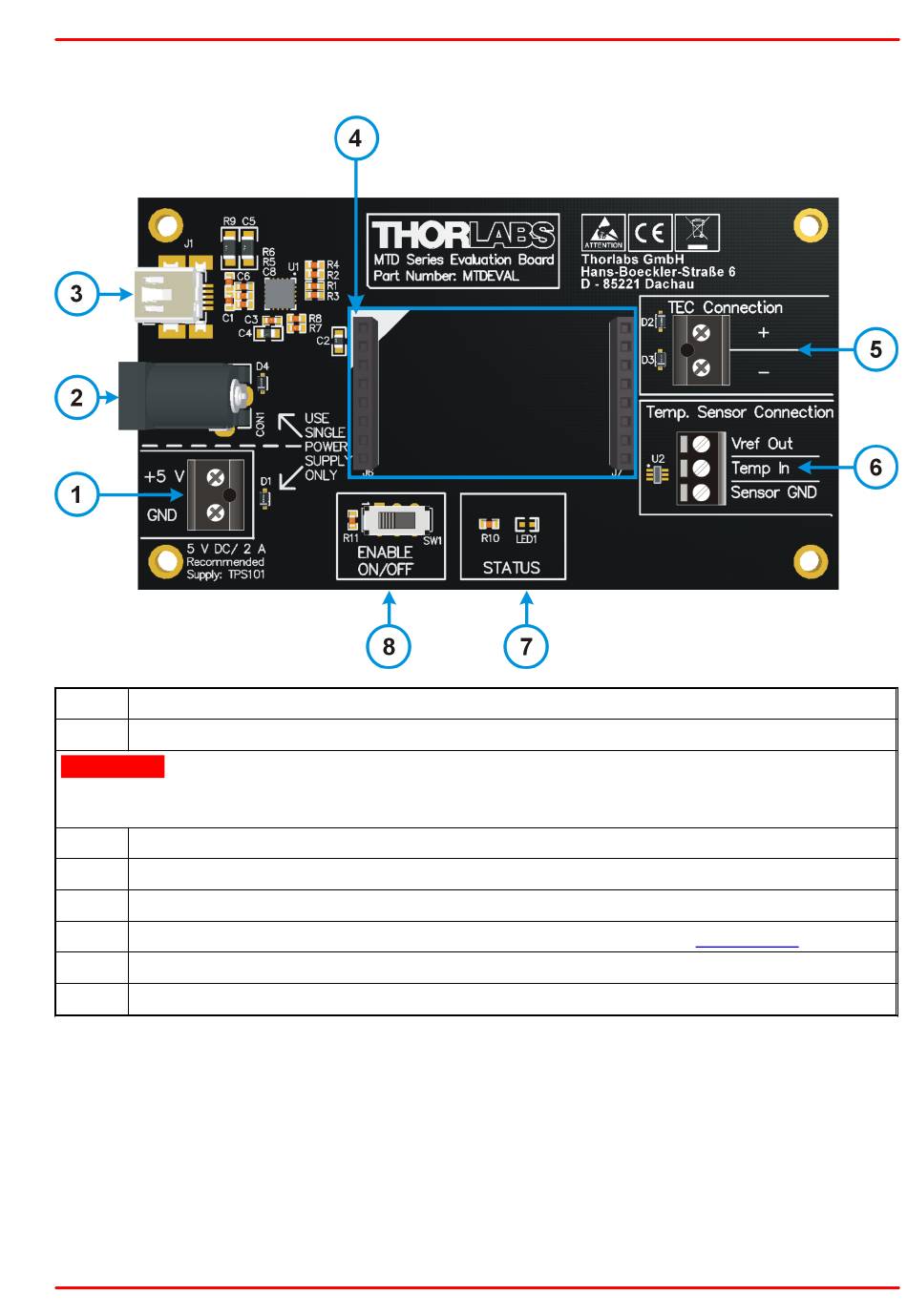

4 Operating Elements
1 Screw terminal for external DC power supply 5 V DC ± 5 %, recommended 2 A
2 Jack for connecting the TPS101 power supply (5 V DC / 2.0 A)
Attention!
Do NOT use both power supplies at once! Use either the screw terminal OR the TPS101!
Otherwise, the MTDEVAL will be damaged!
3 USB terminal for external PC control. No power supply here!
4
J6 and J7 - Sockets for adapter PCB. The white triangle marks pin 1 of the adapter
5 Screw terminal for TEC connection.
6 Screw terminal for temperature sensor connection. See section Preparation.
7 Status LED
8 SW1 ENABLE - switch TEC ON / OFF
Power Supply Connection
The MTDEVAL consumes up to 1.6 A, depending on the TEC current. For this reason, it cannot
be powered via the USB connection.
There are two alternative ways to power the MTDEVAL:
1. Thorlabs GmbH recommends to use the power supply TPS101. Connect it to the MTDEVAL
using the jack 2 in above figure.
2. Any external DC power supply that delivers (5 ± 0.25) V DC and at least 1.6 A
(recommended: 2 A) can be connected to the terminal 1. Take care for correct poling.
Do NOT use both power supplies at the same time - this will damage the MTDEVAL!
