7.5 Graphic chart

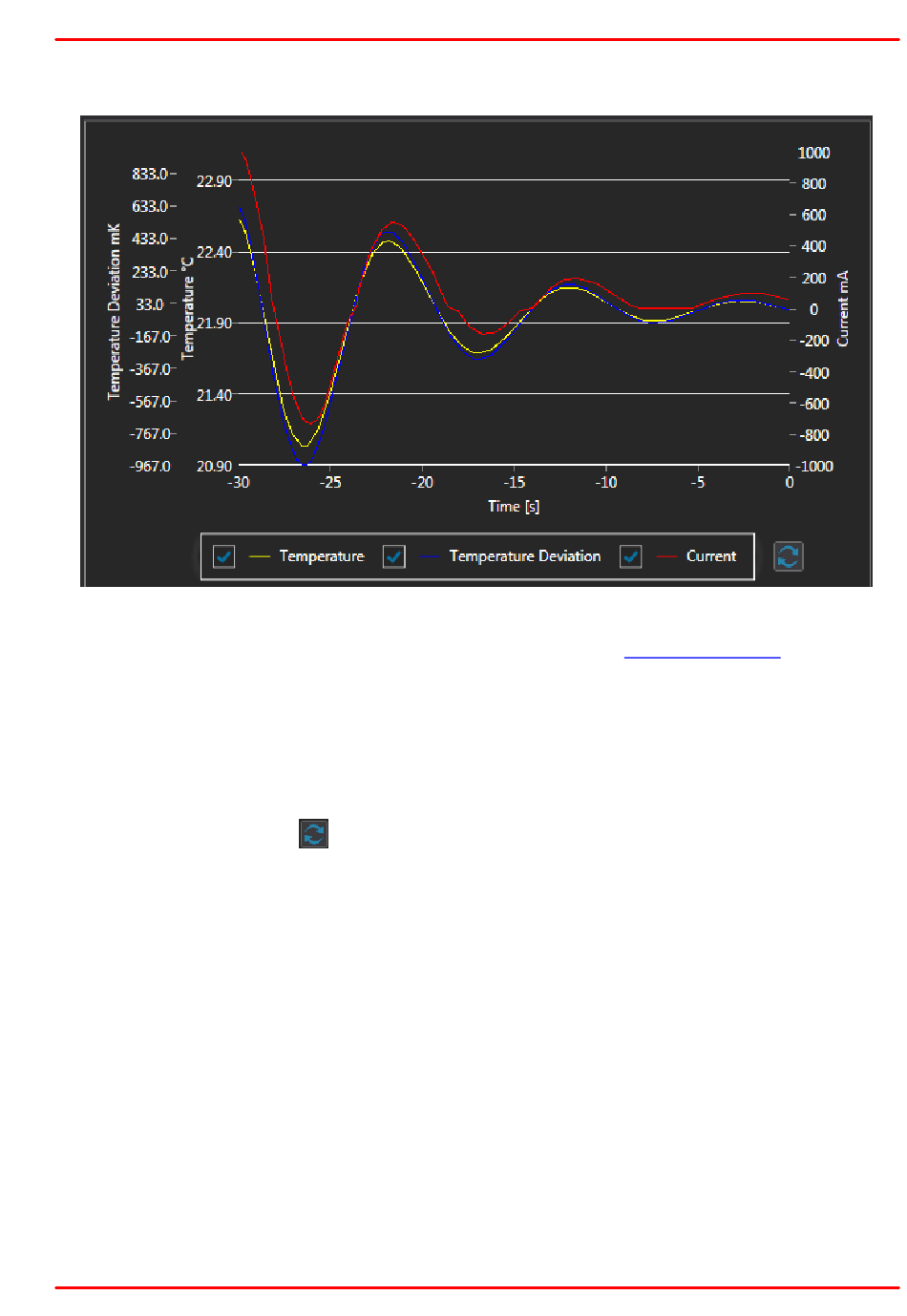

In the graphic chart, up to three curves can be displayed:
· Actual temperature in °C or °F. The unit can be selected in
· Temperature deviation in mK
· TEC current
The most recent value is displayed to the left. Each of these curves can be disabled by
unchecking the appropriate box below the chart.
The time base can be set between 1 and 360 s. Please note, that the longer the time base the
more data need to be accumulated. This may lead to a slow-down of the software.
To clear the chart, click the
© 2016 Thorlabs GmbH
button.
7 GUI Overview
Software
Settings.
