Miniature TEC Driver

Evaluation Board

MTDEVAL1

User Manual

2018

Table of Contents

Need help?

Do you have a question about the MTDEVAL1 and is the answer not in the manual?

Questions and answers

Summary of Contents for THORLABS MTDEVAL1

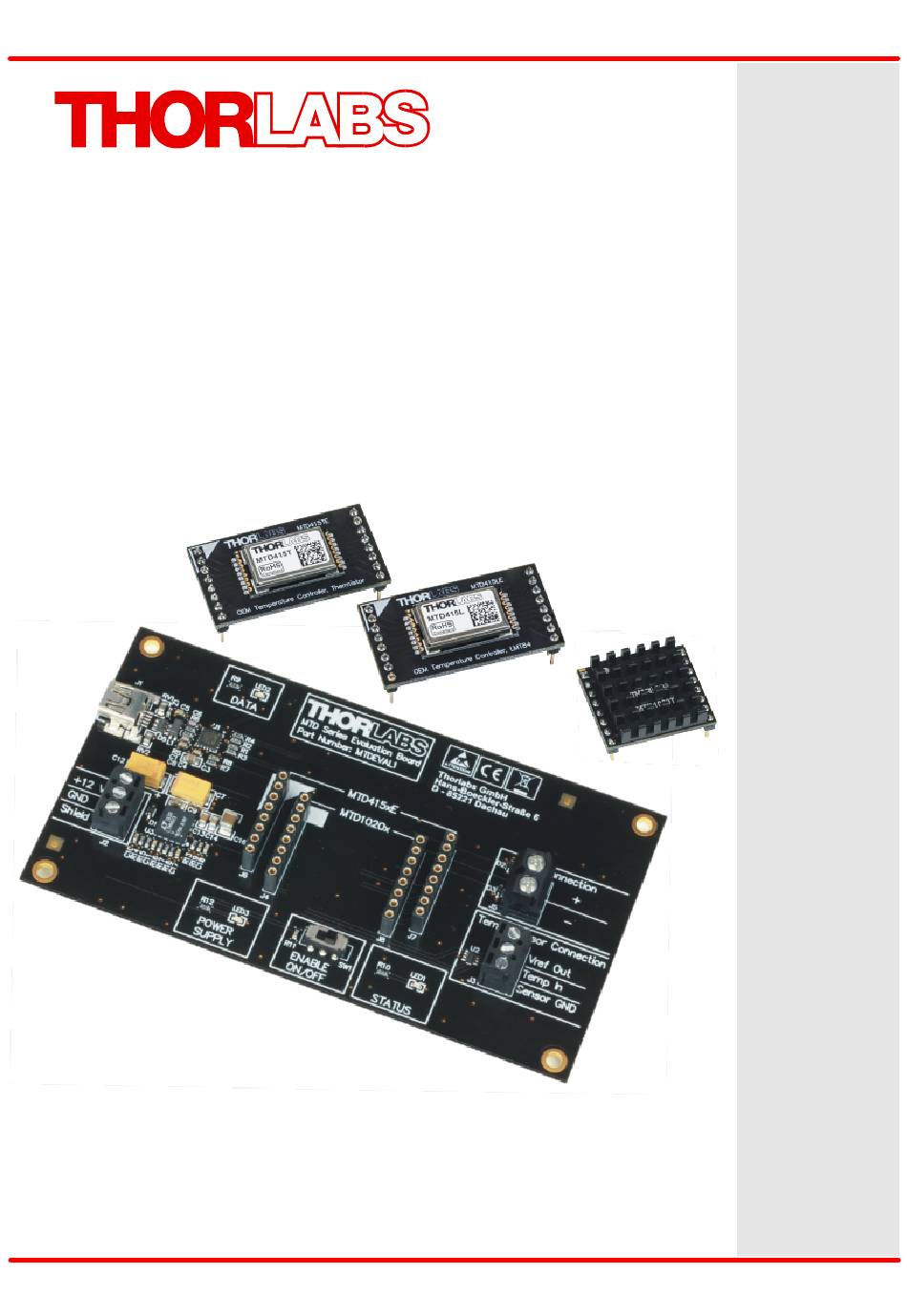

Page 1 Miniature TEC Driver Evaluation Board MTDEVAL1 User Manual 2018...
Page 3: Table Of Contents
9 Appendix 9.1 Technical Data 9.2 Dimensions 9.3 Tutorial 9.3.1 Operating Principle of a Temperature Controller 9.4 References 9.5 Warranty 9.6 Copyright and Exclusion of Reliability 9.7 Thorlabs 'End of Life' Policy 9.8 List of Acronyms 9.9 Thorlabs Worldwide Contacts...
Page 4: Foreword
Paragraphs preceeded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read this advice carefully! © 2018 Thorlabs GmbH...
Page 5: General Information
MTD Series TEC controller can be evaluated and adapted to a particu- lar thermal load. The MTDEVAL1 is powered by any stabilized 12 V / min. 2.3 A DC power supply. The links to the MTD Series Data Sheets can be found in section Documentation Reference.
Page 6 4. It is highly recommended for each user to wear antistatic shoes. 5. ESD devices should be contained in a static protective bag or container at all times during storage or transportation. © 2018 Thorlabs GmbH...
Page 7: Ordering Codes And Accessories
Windows 8.1 (32-bit, 64-bit) · ® Windows 10 (32-bit, 64-bit) For operation of the MTDEVAL1, the Microsoft .NET Framework V 4.5.1 or later is required. This software (V 4.6.1) is included with the MTDEVAL1 installation package. © 2018 Thorlabs GmbH...
Page 8: Getting Started
MTDEVAL1 2 Getting Started For proper operation of the MTDEVAL1, please observe the order of the following steps: 1. Install the software to your computer. 2. Install the daughter board (MTD415LE or MTD415TE) or the MTD1020x to the MTDEVAL1. 3. Connect the TEC and the temperature sensor.
Page 9: Operating Principle
The parameters in the volatile memory are only used during a single operating session. This memory is cleared upon power-down. When the MTDEVAL1 is powered up, the data from the flash memory are read out to the volat- ile memory.
Page 10: Operating Elements
TEC element. Power Supply Connection The MTDEVAL1 consumes up to 2.3 A, depending on the TEC current. Connect any external DC power supply that delivers (11.5 ... 13.0) V DC and at least 2.3 A to the terminal (1). Take care for correct polarity.
Page 11: Installing Software
5 Installing Software 5 Installing Software The MTDEVAL1 control software can be downloaded from our web site https://www.thorlabs.com/software_pages/ViewSoftwarePage.cfm?Code=MTDEVAL. Note It is strongly recommended that all applications open on the PC are exited prior to starting the software installation! Note Unzip the downloaded package and execute the setup.exe that can be found in unzipped folder: If no .NET Framework is installed or a version older than V 4.5.1 is detected on the computer,...
Page 13 5 Installing Software If you are prompted to reboot the computer, please do so. Note The reboot is required to ensure a proper operation of the MTDEVAL1! After rebooting, the installer automatically resumes installation: Click 'Next >' to continue. Click 'I accept...' if you do so, then 'Next >' to continue.
Page 14 MTDEVAL1 Click 'Next >' to continue. Click 'Install' to continue. Click 'Yes' to install the MTD software. © 2018 Thorlabs GmbH...
Page 17: Preparation
6 Preparation Note Do not connect the MTDEVAL1 to a PC prior to installing the software! This may lead to corrupt installation of the driver software. 1. Install the daughter board with MTD415LE or MTD415TE, or the MTD1020T in the appro- priate socket on the MTDEVAL1.
Page 18: Gui
To Start the GUI click the desktop icon: The GUI starts with the ESD-Warning: Attention The MTDEVAL1 is sensitive to electrostatic discharge. To protect the MTDEVAL1, please ob- serve the ESD precautions by following the instructions in the Safety chapter in this manual.
Page 19: Gui Overview
7 GUI 7.2 GUI Overview After connecting with the MTDEVAL1, the device information and actual settings are read out from the MTD module's non-volatile memory (flash). The GUI will be filled in with these data. Additionally, the actual status is read out and displayed.
Page 20: Menu Bar
Click to Scan USB. The USB port is scanned for a device connected to a virtual serial port MTDEVAL1 and displays the findings. Click to the button that comes up, in order to connect the MTDEVAL1.
Page 21 MTD-Series automatically turns off. Attention Turning off the Safety Functions may result in uncontrolled use of the MTD Module. Thorlabs GmbH is not liable for damage caused during use of the device when the safety functions are switched off.
Page 22 Troubleshooting... opens a dialog window with several actions that can be undertaken: Contact Technical Support: shows the Thorlabs GmbH website with contact information. Save Logfile opens a dialog to save the log. It might be helpful to attach the log file when contacting Thorlabs GmbH Technical Support.
Page 23: Device Information
7.2.2 Device Information This panel displays individual information about the connected MTD module. The UUID is a unique number that identifies the hardware. When contacting Thorlabs GmbH for technical sup- port, support, please be ready to give the UUID. 7.2.3 Program Parameters Here, the parameters can be set to program the MTD415x module.
Page 24 1.00 A Temperature Protection Delay 10 s Note When setting the MTDEVAL1 to factory defaults, the Critical Gain and Critical Period Duration are not changed, as these are parameters that shall be defined during the oscillation test. © 2018 Thorlabs GmbH...
Page 25: Graphic Chart
The time base can be set between 1 and 360 s. Please note, that a longer time base results in more data being accumulated in the chart. This may lead to a slow-down of the software. To clear the chart, click the button. © 2018 Thorlabs GmbH...
Page 26: Read-Out Values
A safety icon appears if any of the safety functions is switched off in the panel Safety Functions. Click on the icon to open the Safety Functions dialog. © 2018 Thorlabs GmbH...
Page 27: Error Messages
The TEC connection was interrupted. The TEC current is switched off, and the appropriate er- ror message is displayed. Reconnect the TEC. The MTD module will resume operation only after clicking to Clear All or by switching OFF and ON again the enable switch (8). © 2018 Thorlabs GmbH...
Page 28: Operating A Mtd Module
GUI and saves them to a file. In other words, this function does not read the actual parameters from the MTDEVAL1! Load Settings from File loads the information from the selected file to the GUI. In this case, the GUI content is compared to the content of the volatile memory of the MTD module and dif- fering parameters are highlighted.
Page 29 This way, all changed parameters become active and will be saved permanently. 2. Click to one of the highlighted parameters and press the Enter key. This way, all changed parameters become active, but they are not stored to the flash. © 2018 Thorlabs GmbH...
Page 30: Oscillation Test
P share is changed, the set temperature needs to be changed for a small amount in order the trigger the loop. Below an example experiment is described in detail: · After enabling the TEC with initial setting, the temperature is settling: P=1000; T=25.0°C © 2018 Thorlabs GmbH...
Page 31 Lower P to 5000 mA/K; decrease the set temperature to 25.0 °C - the loop still oscillates: P=5000; T=25.0 °C · Lower P to 3000 mA/K; increase the set temperature to 25.1 °C - the loop still oscillates: P=3000; T=25.1 °C © 2018 Thorlabs GmbH...
Page 32 Increase P to 2600 mA/K; increase the set temperature to 25.1 °C - the loop oscillations are still damped: P=2600; T=25.1 °C · Increase P to 2800 mA/K; decrease the set temperature to 25.0 °C - the loop oscillates again: P=2800; T=25.0 °C © 2018 Thorlabs GmbH...
Page 33 In other words, the duration of 1 period is ~ 5.085 s. 6. Enter these values in the GUI. Pressing the Enter key triggers the calculation of the PID shares and the cycle time by the firmware and immediately displays the calculated loop parameters: © 2018 Thorlabs GmbH...
Page 34 The optimized PID parameters are valid for a steady state that depends on the set tempera- ture as well as on the ambient conditions (ambient temperature, temperature of the thermally controlled object). Any changes of the operating and/or environmental conditions may re- quire a re-adjustment of the PID parameters. © 2018 Thorlabs GmbH...
Page 35: Appendix
Dimensions (W x H x D) 114.5 mm × 16.8 mm × 64 mm Weight 0.04 kg ) non-condensing All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2018 Thorlabs GmbH...
Page 40: Tutorial
The D share (differential share, or the gain at high frequencies) allows the system to quickly re- act to temperature changes, without generating oscillation of the temperature around the set point. © 2018 Thorlabs GmbH...
Page 41: References
9.4 References Data Sheets of the MTD415 Series Click to appropriate link to download the data sheet: MTD415L Miniature TEC Driver; LMT84 (or similar) Temperature Sensor MTD415T Miniature TEC Driver; Thermistor Temperature Sensor Software Download Link https://www.thorlabs.com/software_pages/ViewSoftwarePage.cfm?Code=MTDEVAL © 2018 Thorlabs GmbH...
Page 42: Warranty
For warranty repairs or service the unit must be sent back to Thorlabs GmbH. The customer will carry the shipping costs to Thorlabs GmbH, in case of warranty repairs Thorlabs GmbH will carry the shipping costs back to the customer.
Page 43: Copyright And Exclusion Of Reliability
All rights reserved. This document may not be reproduced, transmitted or translated to another language, either as a whole or in parts, without the prior written permission of Thorlabs GmbH. Copyright © Thorlabs GmbH 2018. All rights reserved.
Page 44: Thorlabs 'End Of Life' Policy
Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs GmbH, you must hand it to a company spe- cialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
Page 45: List Of Acronyms
Miniature TEC Driver Personal Computer Printed Circuit Board Portable Document File Proportional - Integral - Differential (shares) Random Access Memory Rich-Text Format File Thermo-Electric Cooler UART Universal Asynchronous Receiver Transmitter Universal Serial Bus UUID Universal Unique Identifier © 2018 Thorlabs GmbH...
Page 46: Thorlabs Worldwide Contacts
Email: europe@thorlabs.com Email: scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. 109, rue des Côtes Rua Riachuelo, 171 78600 Maisons-Laffitte São Carlos, SP 13560-110 France Brazil Tel: +33-970 444 844 Tel: +55-16-3413 7062 Fax: +33-825 744 800 Fax: +55-16-3413 7064 www.thorlabs.com...
Page 47 www.thorlabs.com...
