7.6 Read-Out Values

Status
Temperature

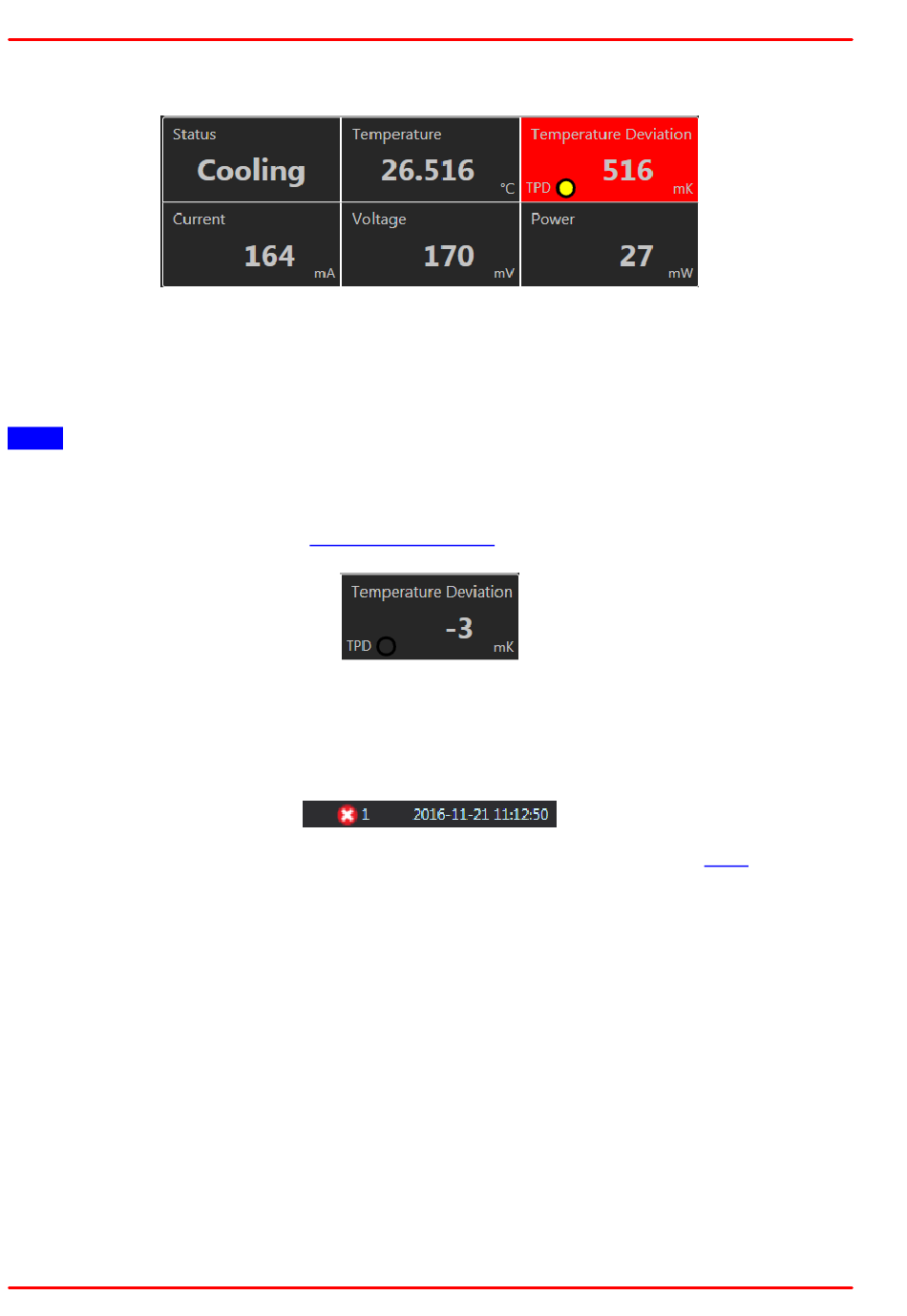

Temperature Deviation Deviation of the actual temperature from the set value.
Note
If the temperature deviation exceeds the value that is set as Temperature Window, this box
turns into red and the TPD (Temperature Delay Protection) indicator turns yellow, the status
LED is OFF. After the actual temperature remains within the temperature window at least for
the TPD time interval (to be set in
The lower row indicates the TEC current, the voltage across the TEC and the TEC input power.

7.7 Status Bar

In the status bar normally only the current date and time are displayed. If an
notification comes up, showing the number of actual error message.
20
Indicates the TEC status - cooling, heating, or disabled (if the enable
switch is set to OFF)
Actual temperature
Program Parameters pane), this box turns to normal view:
