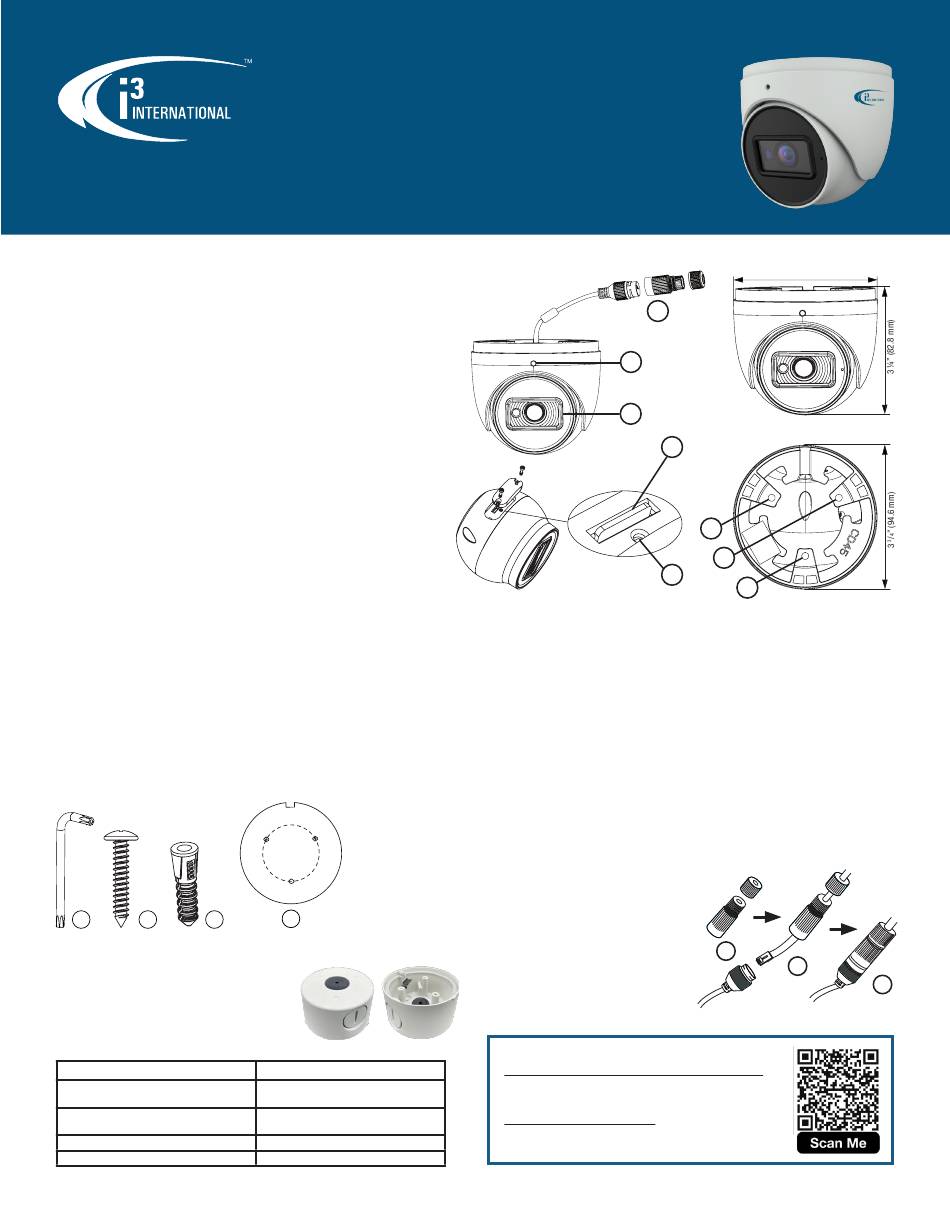

i3 International M74 User Manual

5MP Infrared Outdoor IP Turret Camera
Thank you for purchasing i3 International's M74 IP turret camera.
M74 is equipped with a fixed 2.8mm @ F1.6 lens and true WDR, and supports h.265
codec compression. The ball-and-socket design enables the camera to pivot in any
direction inside the socket mount, and the straight lens prevents accumulation of
precipitation.
Note: h.265 codec is supported by SRX-Pro v7 and above only. For backwards
compatibility and for web streaming compatibility, the camera is pre-set to h.264.
Camera's codec setting can be changed in the web GUI under Config > Image >
Video/Audio > Video Compression.
SAFETY
When installing your M74 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light and unstable light sources
• temperatures below -30° C (-22° F) and above 50° C (122° F
To avoid electrical shock and to preserve the product warranty, DO NOT
disassemble the camera. Refer servicing to qualified personnel only.
POWER SUPPLY
This camera accepts PoE power.
Ensure the supplied voltage meets the power consumption requirements of this
camera (7W) before powering the camera on. Incorrect voltage may cause irrepa-
rable damage to the video camera and will effectively void the camera warranty.
CLEANING
• For maximum optical clarity, the camera lens must remain clean. Use a soft, dry
cloth to remove finger prints and dust from the lens.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finishes.
PACKAGE CONTENTS
Ensure that the items received match those listed on the order form and the packing
slip. In addition to this manual and a fully assembled camera, the camera packing
box includes:
A. Surface Mount template x1
B. Torx bit x1
C. Round Head Screw (Tapping Type) x3
D. Plastic Anchor x3
A B C
Supported mounting options
See the table below for additional mounting
options supported by M74 camera.
Compatible Mounting Accessories:
B74 v2 - back box for surface mounting installations.
Mounting Type
Drywall / block wall mount
Surface mount (E.g. drop ceiling tile)
Pendant Mount
Electrical (Round/Hex, Single Gang) Box
Horizontal Wall Mount
Pole Mount / Corner Mount
).
D
Fig. A - Accessories (not to scale)
Part#: B74 v2
Additional Accessories required
Built-in / B74 v2
B74 v2
B74 v2 + DB60
B74 v2 + DB60 + DB60CPM
User Manual
CAMERA PARTS AND DEFINITIONS
2
3
Fig. B - M74, Parts & Dimensions
1. RJ45 Ethernet PoE Port with waterproof RJ45 connector assembly.
Insert an Ethernet cable into the port for network connection as well as PoE
(Power over Ethernet) power.
Use the included waterproof RJ45 Connector assembly to maintain the warranty.
2.
Set screw securing the camera unit to the socket housing (x1).
Loosen using the torx bit (B), adjust camera angle for preferred view, re-tighten
when done.
3. Camera lens, IR board
4.
MicroSD Card slot for on-camera video storage. (MicroSD card sold separately).
To access, remove the camera from the socket housing.
5.
Reset pinhole. Press for 10 seconds to restore camera settings to factory defaults.
To access, remove the camera from the socket housing.
6. Mounting holes (x3)
WATERPROOF RJ45 ASSEMBLY
To prevent the corrosion of the RJ45 connector and to maintain the camera warranty,
use the RJ45 waterproof assembly attached to the camera, as shown in the diagram
below.
1. Twist off the RJ45 waterproof assembly
from the RJ45 connector.
2. Feed the CAT5e/6 cable through the
opening in the connector and crimp
it using the standard RJ45 connector
provided.
3. Plug the crimped CAT5e/6 cable into
the RJ45 connector on the camera and
twist the waterproof assembly on to
re-attach it.
Scan this QR code or visit
https://i3international.com/support/documentation
to view additional documentation.
Contact our Technical Support team at: 1.877.877.7241 or
support@i3international.com if you have any questions
or concerns regarding camera installation or if you require
software services or support.
M74
3 3 / " (94.6 mm)
4
1
4
6
6
5
6
1
2
Fig. C - Waterproof connector
i3-TRNG-CAMS-M74.indd
Rev. 240621
3
