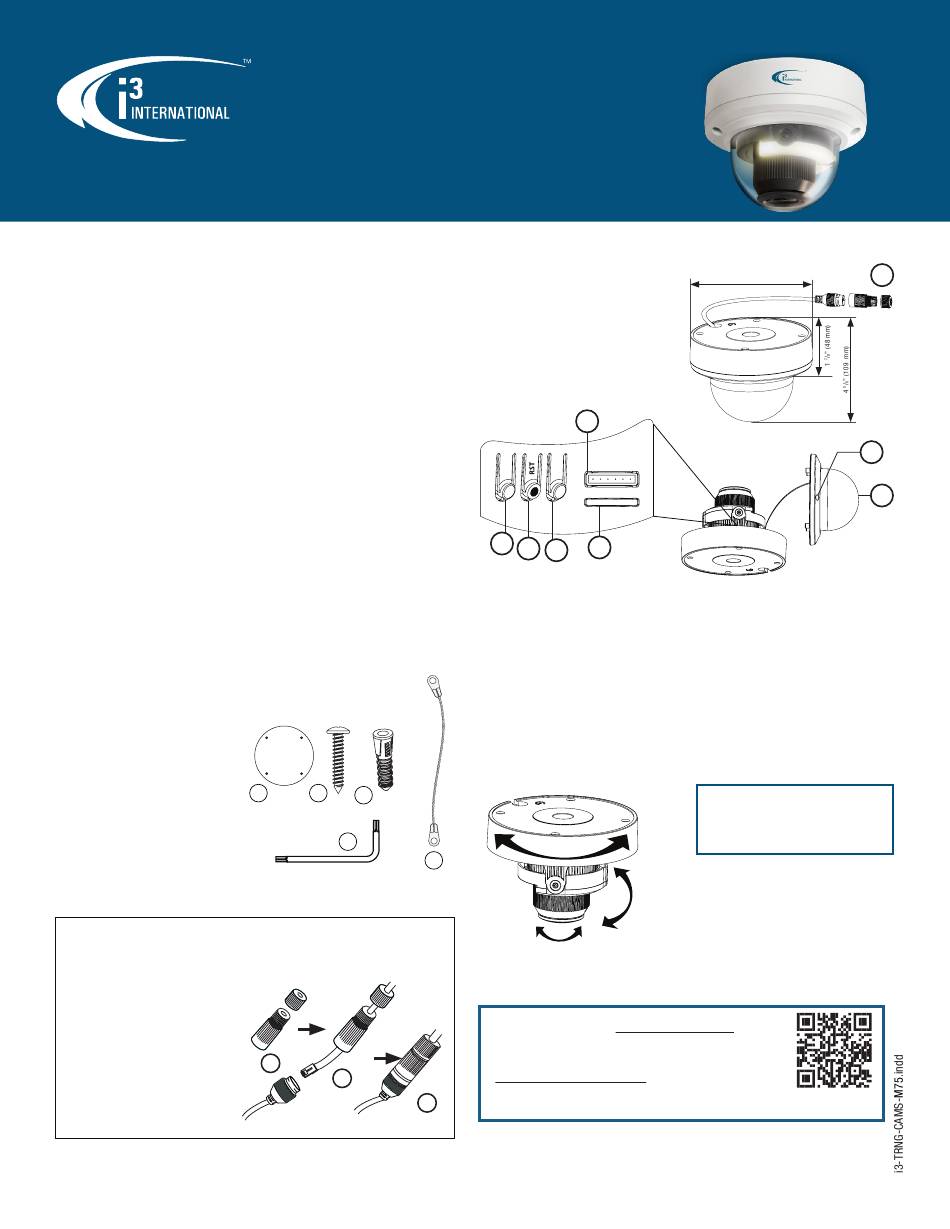

i3 International M75 User Manual

5MP IP Dome Camera with LED
Thank you for purchasing i3 International's M75 Edge Ai dome camera.
M75 is equipped with a motorized 2.8-12mm @ F1.6 lens.
This camera is compatible with the optional back box (Part#: B85).
Note: h.265 compression is supported by SRX-Pro v7 and above only.
To switch between h.264 and h.265 compressions in the camera's web settings,
go to > Remote Settings > Record > Encode > Video Code Type.
SAFETY
When installing your M75 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light and unstable light sources
• temperatures below -35° C (-31° F) and above 50° C (122° F
To avoid electrical shock and to preserve the product warranty, DO NOT
disassemble the camera. Refer servicing to qualified personnel only.
POWER SUPPLY
This camera accepts PoE power.
Ensure the supplied voltage meets the power consumption requirements of
this camera (9W) before powering the camera on. Incorrect voltage may cause
irreparable damage to the video camera and will effectively void the camera
warranty.
CLEANING
• For maximum optical clarity, the camera dome or lens must remain clean.
Use a soft, dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Do not use volatile solvents such as alcohol, benzene, or thinners,
as they may damage the surface finishes.
PACKAGE CONTENTS
Ensure that the items received match
those listed on the order form and
the packing slip. In addition to this
manual and a fully assembled camera,
the dome camera packing box includes:
A. Surface mount template (x1)
B. Round head screws, tapping type (x4)
C. Plastic anchors (x4)
D. Torx bit (x1)
E. Anti-drop string (x1)
WATERPROOF RJ45 ASSEMBLY
To prevent the corrosion of the RJ45 connector and to maintain the camera
warranty, use the RJ45 waterproof assembly attached to the camera, as shown in
the diagram below.
1. Twist off the RJ45 waterproof
assembly from the RJ45
connector.
2. Feed the CAT5e/6 cable through
the opening in the connector and
crimp it using the standard RJ45
connector provided.
3. Plug the crimped CAT5e/6 cable
into the RJ45 connector on the
camera and twist the waterproof
assembly on to re-attach it.
User Manual
).
A B
C
D
E
Figure 1. M75, Accessories
1
2
3
Figure 2. Waterproof RJ45 connector
M75
CAMERA PARTS AND DIMENSIONS
1. RJ45 Ethernet PoE Port with
waterproof RJ45 connector
assembly.
Insert an Ethernet cable into the
port for network connection as well
as PoE (Power over Ethernet) power.
Use the included waterproof RJ45
connector assembly to maintain the
camera warranty and the water-
resistant rating.
6
CVBS / LAN
+
ZOOM —
TF
2
5
3
4
Figure 3. M75, Parts and Dimensions
2. Zoom In (Tele +), lens adjustment button. Motorized lens can be adjusted remotely
through Video Pilot Client (VPC).
3. Reset button. Press for 10 seconds to restore camera settings to factory defaults.
4. Zoom Out (Wide -), lens adjustment button. Motorized lens can be adjusted remotely
through Video Pilot Client (VPC).
5. MicroSD Card slot for on-camera video storage. (up to 256GB, card sold separately).
6. CVBS/LAN port. Not in use.
7. Screws securing the dome bubble housing to camera module (x3, silver, Torx)
8. Dome bubble.
3-AXIS LENS POSITIONING
Pan
Tilt
Rotate
Figure 4. M75, 3-axis lens positioning diagram.
Scan this QR code or visit ftp.i3international.com to view
and download AnnexxusConfigurationTool v2.1 (ACT).
Contact our Technical Support team at: 1.877.877.7241 or
support@i3international.com if you have any questions
or concerns regarding camera installation or if you require
software services or support.
Rev. 230623
1
5 15 / " (150 mm)
16
7
8
Important: Do not over-rotate the
camera lens assembly beyond the stop
point to prevent twisted, disconnected,
or broken internal cables/components.
3-axis Range
Limitations:
Pan range: 350°
Rotate range: 350°
Tilt range: 75°
ACT Download &
Documentation
