Electric Windscreen Adjuster
Supplementary Manual
BMW R1300GS ABS TC 2023- (EWA-BM1)

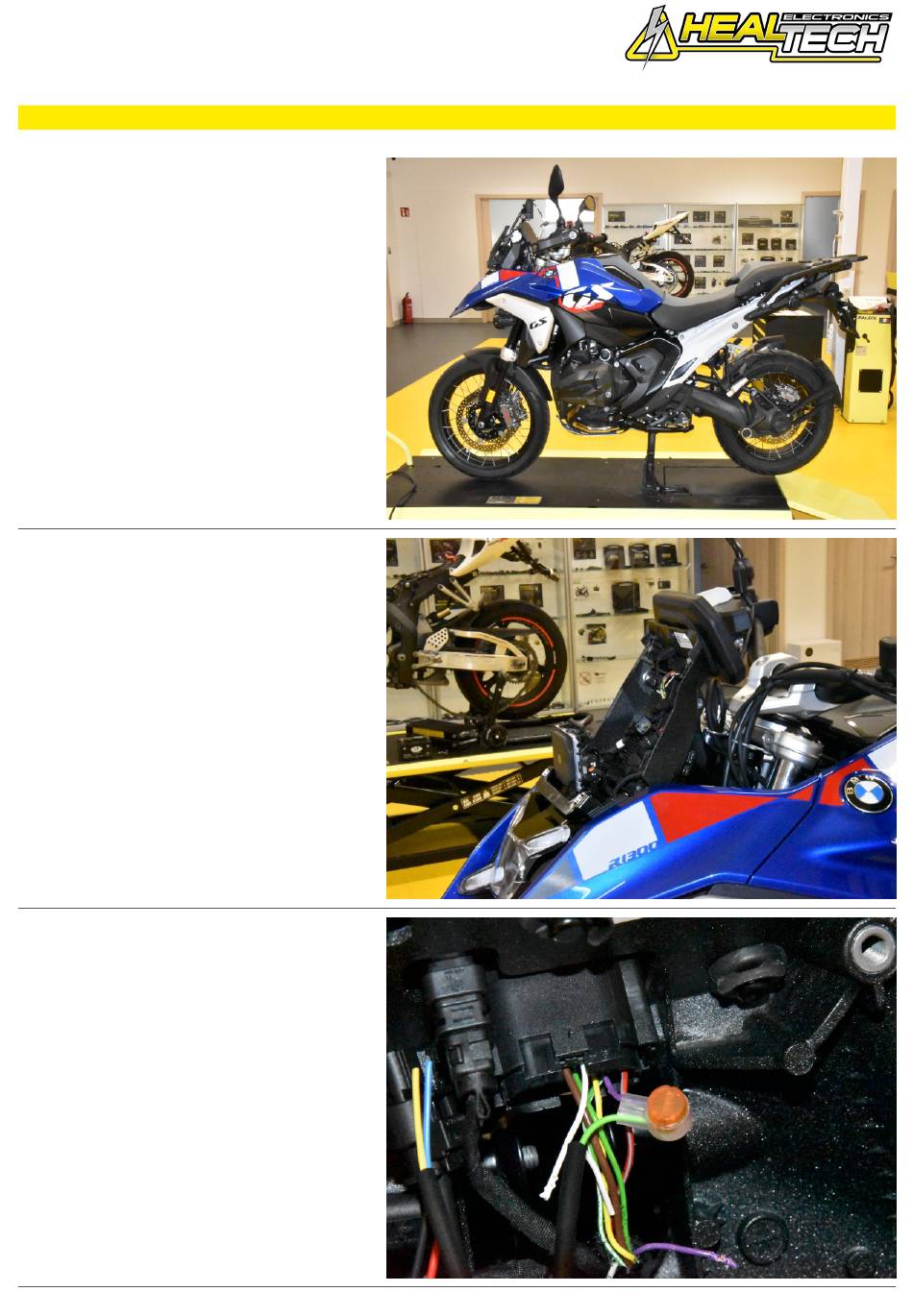

Secure the bike on a stand.
Remove the windscreen.
Remove the plastic covers from the
dashboard holder.
Locate the dashboard connector.
Cut the Purple wire about 2,5cm (1") of
the connector.
Connect the EWA Green wire to the
Purple wire end, which goes to the
dashboard. Use a yellow butt connector.
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/3
