GIPRO X-TYPE GEAR INDICATOR
Supplementary Manual
Aprilia Tuono 2006-2010 (GPXT + GPX-U01)
Remove the main seat.
Lift up or remove the fuel tank.

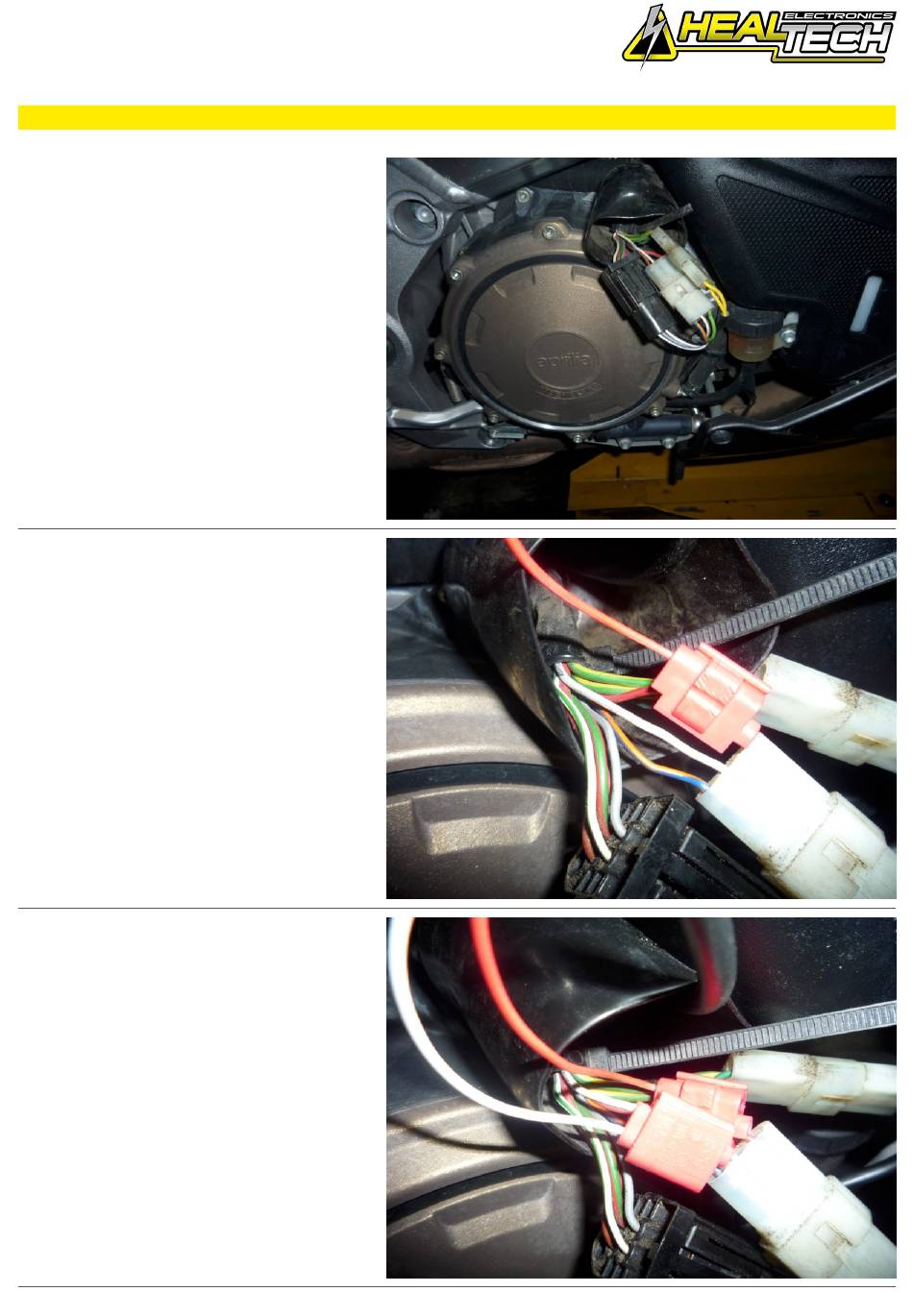

Locate the speed sensor connector.
Route the GPX cable through the top
opening of the dust boot.
Connect the GPX Red wire to the Red
wire of the speed sensor connector.
(Transparent, 3-pole connector in dust boot
behind the water reservoir tank)
Connect the GPX White wire to the
Gray/White wire of the speed sensor
connector.
(Transparent, 3-pole connector in dust boot
behind the water reservoir tank)
