ETHERNET/IP / MODBUS TCP:

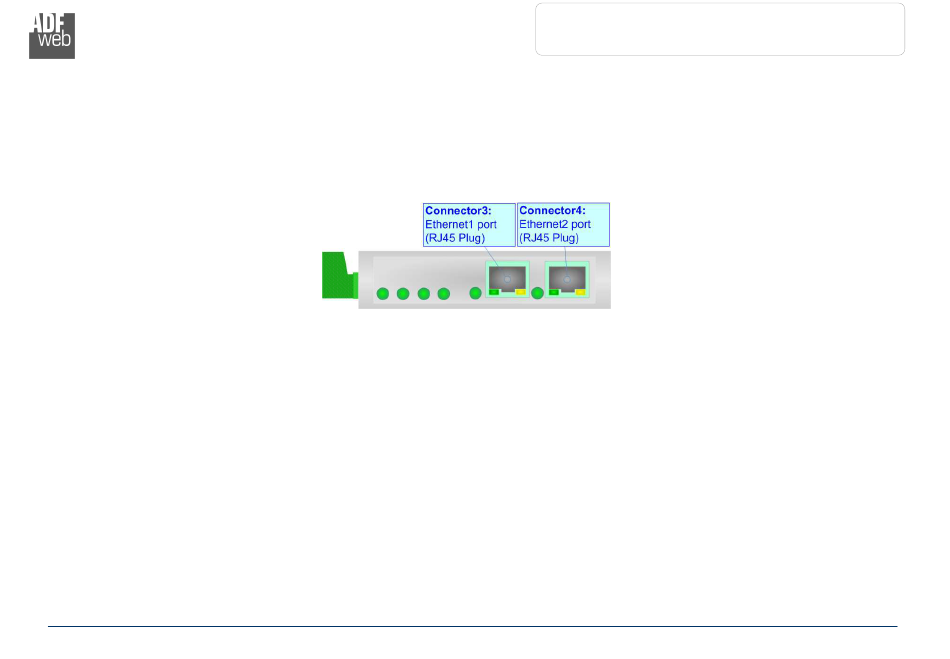

The EtherNet/IP and Modbus TCP connection must be made using Connector3 and/or Connector4 of HD67664-A1 with at least a Category 5E
cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in
cat.5 up to 100 Mbps. To connect the device to a Hub/Switch the use of a straight cable is recommended. To connect the device to a
PC/PLC/other the use of a cross cable is recommended.
