STRENGTH |
CARDIO
| FUNCTIONAL

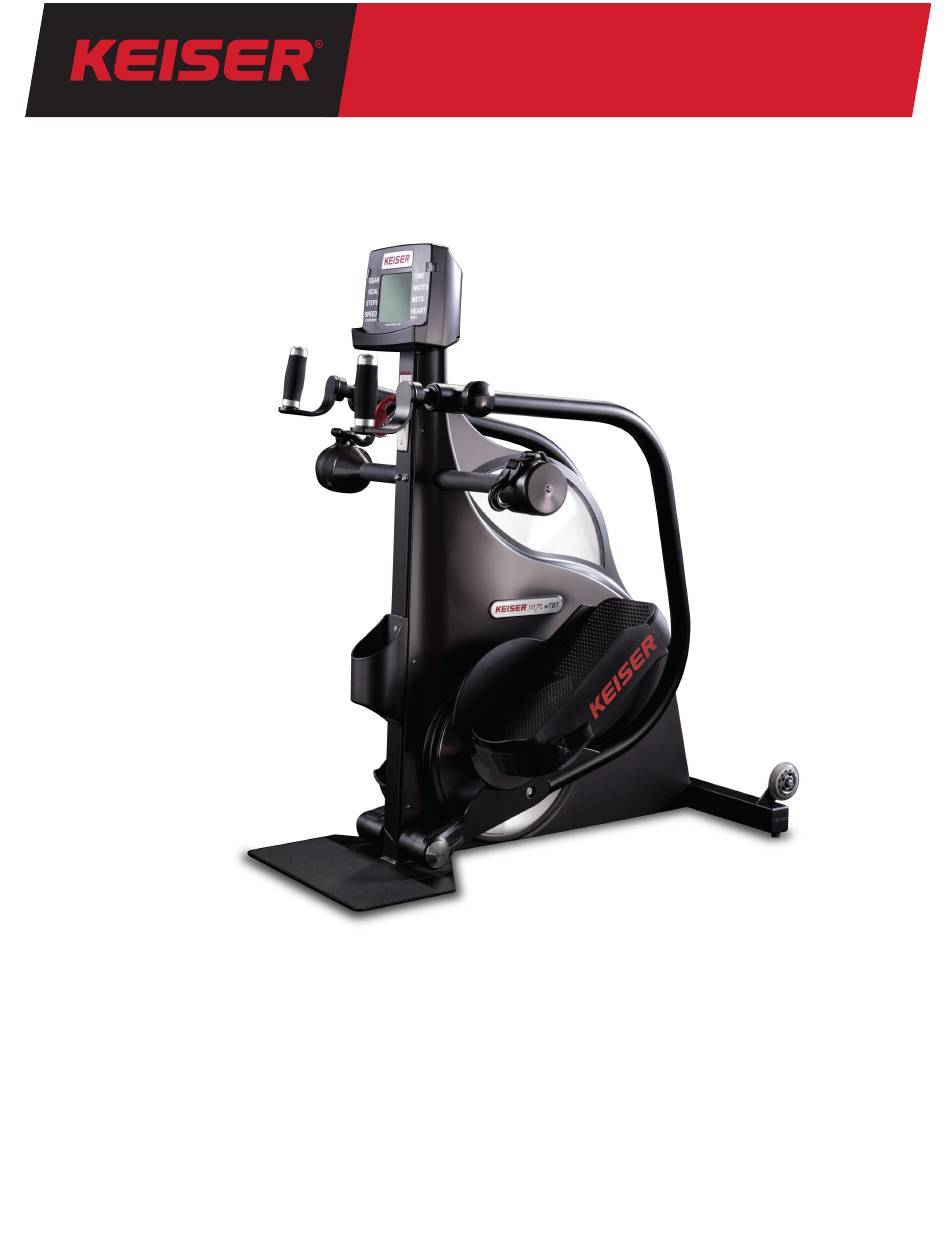

M SERIES
M7i TOTAL BODY WHEELCHAIR STEPPER
MODELS: 005200B, 005200X
INSTALLATION AND OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Keiser M Series

  • Page 1 STRENGTH | CARDIO | FUNCTIONAL M SERIES M7i TOTAL BODY WHEELCHAIR STEPPER MODELS: 005200B, 005200X INSTALLATION AND OPERATION MANUAL...
  • Page 2: Table Of Contents

    Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from Keiser Corporation. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by Keiser Corporation.
  • Page 3: General Information

    M7i installation or operation after reading this manual, our Keiser Customer Support team will be happy to assist by telephone at 1 559 256 8000 or via live chat keiser.com/support (Monday—Friday, 7 am to 5:30 pm PST), or by email at service@keiser.com.
  • Page 4: Important Safety Information

    M7i TOTAL BODY WHEELCHAIR STEPPER IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Keiser Corporation equipment to instruct all individuals, whether they are the end-user or supervising personnel, on proper usage of the equipment. Keiser Corporation recommends that all users of its equipment be informed of the following information before use.
  • Page 5: 05_Conventions Used

    M7i. Swivel the Foot Strap to the upright position. Place limitation, the Keiser M7i Total Body Wheelchair Stepper, your foot under the Foot Strap and onto the Footpad with without proper instruction and supervision violates the your heel resting against the rear wall of the Footpad.
  • Page 6: 06_Safety And Notification Labels

    If you feel faint stop exercising immediately. 555376 Maintain safety and serial number labels. Do not remove labels for any reason. They contain important information. If unreadable or missing, contact Keiser Corporation for a replacement (see back cover for contact information).
  • Page 7 M7i TOTAL BODY WHEELCHAIR STEPPER IMPORTANT SAFETY INFORMATION CONTRAINDICATIONS There are a number of contraindications in the context of the relevant fields of the M7i use. In rehabilitation, only the medical staff can determine the form and extent of therapy. Medications can have an influence on the rehabilitation (e.g. neuroleptics, benzodiazepines, barbiturates, anti-epileptics, etc.).
  • Page 8: Technical Specifications

    Arm reach minimum requirement: 12 in (305 mm) The Keiser M7i Total Body Wheelchair Stepper is categorized per ISO/EN 20957-1 as Accuracy Class A (High Accuracy) and Usage Class S (Studio, commercial use) product for use in a controlled environment such as sports or fitness facilities under the supervision of a trainer.
  • Page 9: Assembly And Placement

    NOTE: Carefully remove all parts from the box and check for any damage or missing parts (see “Parts List,” below). If parts are damaged or missing, contact your local dealer, distributor, or Keiser Customer Support by telephone at 1 559 256 8000.
  • Page 10 To transport the M7i, refer to Figure 6 and follow the 28 in (711 mm) instructions below: Tilt the M7i onto the transport wheels by pushing the Display at the Keiser logo. 2. Steer the M7i by the Display from the rear to the desired location. Figure 5. Training Area 3.
  • Page 11: Set Up And Operation

    M7i TOTAL BODY WHEELCHAIR STEPPER SET UP AND OPERATION PRODUCT OVERVIEW Figure 7. M7i Total Body Wheelchair Stepper Computer System (ANT+) Adjustment Knobs Valet Tray Arms Handles Flywheel Recoiler Safety Straps and Hooks Lock Levers Recoilers Transport Wheels Resistance Lever/Emergency Brake Leveler Foot Water Bottle Holder Footpads...
  • Page 12: 12_Proper Operation Check

    M7i TOTAL BODY WHEELCHAIR STEPPER PROPER OPERATION CHECK If all assembly requirements have been met, and you have read and understood the Important Safety Instructions, test ride the M7i under the supervision of a spotter. Adjust and fine-tune as needed. It is recommended that the M7i is pedaled in a forward rotation.
  • Page 13: 13_Leveler Foot

    M7i TOTAL BODY WHEELCHAIR STEPPER LEVELER FOOT The M7i should be placed on a level surface. If the sub-floor is not level, the Leveler Foot allows adjustment to a position that will level your M7i. Adjust the Leveler Foot by slightly lifting the right base corner of the M7i and screwing the foot in or out, refer to Figure 9.
  • Page 14: 14_Adjustment Knobs

    M7i TOTAL BODY WHEELCHAIR STEPPER ADJUSTMENT KNOBS The Adjustment Knobs allow the Handles to adjust in increments of 1 inch (25 mm) to attain a comfortable reach distance. To set the Handles using Adjustment Knob the Adjustment Knobs, refer to Figure 12 and follow the instructions below: Loosen the Adjustment Knob at least 1/2 turn counterclockwise.
  • Page 15: Computer Display

    M7i TOTAL BODY WHEELCHAIR STEPPER COMPUTER DISPLAY OVERVIEW GEAR Backlight Gears from 1—24 represent the resistance levels. The higher Sensor the gear number setting, the greater the resistance. KCAL (KILOCALORIES) Total energy expended during a workout session. STEPS Number of steps taken during a workout session. SPEED Interpreted as steps per minute (SPM), is the rate at which the user is pedaling.
  • Page 16: 16_How To Connect A Heart Rate Monitor

    M7i TOTAL BODY WHEELCHAIR STEPPER HOW TO CONNECT A HEART RATE MONITOR NOTE: • ANT+ heart rate sensor or other compatible 2.4 GHz device required (e.g., POLAR H9, POLAR H10, not included). • Connection methods may vary. Refer to your sensor’s manufacturer instructions.
  • Page 17: 17_How To Edit The Machine Id

    M7i TOTAL BODY WHEELCHAIR STEPPER HOW TO EDIT THE MACHINE ID To receive and download workout information from your M7i to a compatible fitness app, a machine ID number is required. The following is a one-time machine ID setup procedure. NOTE: Steps 1 through 7 must be completed within one minute. 1x 1x Shift the Resistance Lever up to GEAR Begin with the computer off and pull...
  • Page 18: How To Exercise On The M7I

    M7i TOTAL BODY WHEELCHAIR STEPPER HOW TO EXERCISE ON THE M7i The M7i is intended for cardiovascular, strength, and power conditioning exercise. The following sections outline the safe and proper operation of the M7i. BIOMECHANICAL POSITION Proper biomechanical positioning is necessary for a safe, comfortable, and effective workout. Follow the steps below to ensure proper biomechanical positioning before every workout: Wheelchair Position: Feet are directly over the M7i Base Plate.
  • Page 19: 19_Exercise Guideline

    M7i TOTAL BODY WHEELCHAIR STEPPER EXERCISE GUIDELINE Consult your physician before beginning any exercise program. To help ensure a safe, comfortable, and effective workout, remember to: Warm up: Proper warm up before you begin your workout helps to get your muscles ready for exercise and can help prevent serious injury.
  • Page 20: Maintenance

    HYDROTEX Acculube #2 or any compound with equivalent ® anti-wear and corrosion resistant properties. Contact Keiser Customer Support for replacement parts order, or for any matters regarding the safe operation of your M7i (see back cover for contact information).
  • Page 21: 21_Computer Battery Replacement

    M SERIES CALIBRATION All M Series equipment is factory calibrated. There is no need to calibrate. If a component associated with the resistance mechanism or computer has been replaced, contact Keiser Customer Support for the calibration procedure (see back cover...
  • Page 22: Regulatory And Compliance Notices

    M7i TOTAL BODY WHEELCHAIR STEPPER REGULATORY AND COMPLIANCE NOTICES Standards ISO/EN 20957-1 Accuracy Class A (High accuracy) and Usage Class S (Studio, commercial use); IEC/EN 60601-1 and IEC/EN 60601-1-2. Marks ANT+™ is a trademark of Garmin Canada Inc.; POLAR is the registered trademark of Electro Oy; HYDROTEX is the registered trademark of Hydrotex, ®...
  • Page 23: 23_Electromagnetic Compatibility (Emc)

    Wear parts: After being replaced, wear parts must be disposed of according to country-specific waste laws. If you have any questions about equipment disposal, please contact your local dealer or Keiser Customer Support (see back cover for contact information).
  • Page 24: Warranty Statement

    View or print your M7i warranty online at keiser.com/support/warranty. If you have any questions about your warranty, please contact Keiser Customer Support at 1 559 256 8000 or via live chat at keiser.com/support (Monday—Friday, 7 am to 5:30 pm PST), or by email at service@keiser.com.
