Ruckus Wireless Unleashed R670 Quick Setup Manual

Unleashed R670
Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Unleashed R670 access point. After completing the steps in this
guide, you will be able to place the access point (AP) at your site and
provide network access to wireless clients.
For detailed information on configuration and administration of your
Unleashed R670 AP, refer to the documentation available in the
Document Library. This AP is supported by Unleashed 200.17 and later
releases.

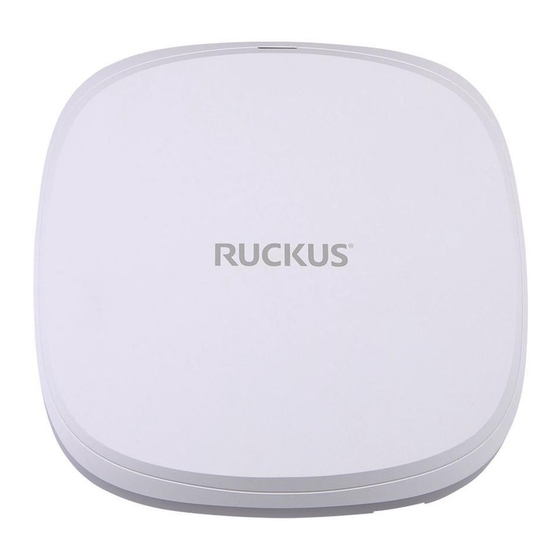

FIGURE 1 Unleashed R670 Top View
Before You Begin
Before deploying RUCKUS products, please check for the latest software
and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Copyright © 2024 CommScope, Inc. All rights reserved.
Published December 2024, Part Number 800-73692-001 Rev A
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box.
Package Contents
A complete RUCKUS Unleashed R670 installation package includes all of
the following items:
• RUCKUS Unleashed R670 Access Point
• One T-bar mounting bracket
Unleashed • Four T-bar mounting clips
• Two #6 x 0.75-in. plastic wall anchors
• Two #8 x 1.0-in. metal screws
• One 66-mm unit removal pin
• Declaration of Conformity/Regulatory flyer
Required Hardware and Tools
Required hardware:
• Computer with an Ethernet port and Wi-Fi adapter, or a mobile device
(such as an iPhone or Android)
• CAT 6 (or better) Ethernet cable
• RUCKUS 48 VDC power adapter (902-1170-XX00) (sold separately) or
IEEE 802.3at/bt-compliant Power over Ethernet (PoE) switch or PoE
injector (902-1180-XX00)
Required installation tools for mounting on a flat surface using the factory-
supplied screws and anchors:
• An electric drill with a 4.75-mm (3/16-in.) drill bit
• Phillips-head screwdriver
Optional hardware and tools:
• Customer-ordered RUCKUS secure mounting bracket kit
(902-0120-0000):
– If you are mounting the AP on a flat surface using the secure
mounting bracket kit, then you need an electric drill with 4.75-mm
(3/16-in.) drill bit.
– If you are mounting the AP on a pipe or pole using the secure
mounting bracket kit, then you will also need a 38.1-mm to 63.5-mm
(1.5-in. to 2.5-in.) pipe or pole, two pole clamps, and hand tools to
tighten the clamps.
http://
Connecting Your Computer to the AP
http:// 1. If PoE-powered, connect your PoE port on the network switch to the
PoE port on the AP using an Ethernet cable. Refer to
2. (Optional) Connect the DC cable of the DC power adapter to a
convenient and protected power source. Connect the DC output cable
of the DC power adapter to the 48 VDC port on the AP.
で
NOTE: In general, switches must have the Link Layer Discovery
(http://docs.commscope.com/?
Protocol (LLDP) enabled. The PoE switch port must run the LLDP
and Power over Ethernet/MDI (BT6) for the R670 AP to operate in
http://
full-power mode.
http://
NOTE: If the AP is powered by IEEE 802.3at PoE, the supported
feature set is reduced. For the product data sheet, refer to
www.ruckusnetworks.com/products/wireless-access-points/.
3. Verify that the PWR LED on the AP is lit a steady green.
FIGURE 2 R670 AP Ports on the Bottom Panel
TABLE 1 R670 AP Ports
No.
1
Figure 2.
Label Description
USB USB port
• Interface: USB 2.0
• Connector: USB – Type-A plug
