R670 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to install
and begin using your RUCKUS R670 tri-band 802.11be Wi-Fi 7 indoor Wi-Fi
access point (AP).
NOTE: The minimum software version for the R670 AP is SmartZone
(SZ) 7.0 or later.

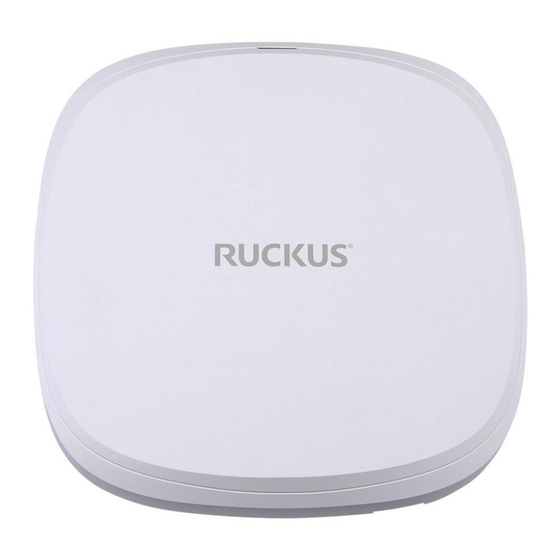

FIGURE 1 R670 Access Point: Top View
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
http://
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
(http://docs.commscope.com/?
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
Copyright © 2024 CommScope, Inc. All rights reserved.
Published October 2024, Part Number 800-73456-001 Rev B
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box
Before You Begin
Before deploying RUCKUS products, please check for the latest software
and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Before deploying your RUCKUS Access Point, verify that all items listed in
Package Contents are included in the package. If any item is damaged or
missing, notify your authorized RUCKUS sales representative. Also, make
sure that you have the required hardware and tools.
RUCKUS WLAN Configuration for 6GHz APs
For configuring a 6GHz WLAN, download the RUCKUS Solo APs
Configuration Guide - 6 GHz Radio Configuration Using CLI from
support.ruckuswireless.com/documents/4017
Package Contents
A complete R670 installation package includes all of the following items:
• R670 Access Point
• One T-bar mounting bracket
• Four T-bar mounting clips
• Two #6 x 0.75-in. long plactic wall anchors
• Two #8 x 1.0-in. long metal screws
• One 66-mm long unit removal pin
• Declaration of Conformity/Regulatory flyer
Required Hardware and Tools
Required hardware:
• Admin PC (computer with an Ethernet port and Wi-Fi adapter)
• CAT 5e (or better) Ethernet cable
• RUCKUS 48 VDC power adapter (902-1170-XX00) (sold separately) or
802.3at/bt-compliant Power over Ethernet (PoE) switch or PoE injector
(902-1180-XX00)
Required installation tools for mounting on a flat surface using the factory-
supplied screws and anchors:
• An electric drill with a 4.75-mm (3/16-in.) drill bit
• Phillips-head screwdriver
Optional hardware and tools:
• Customer-ordered RUCKUS secure mounting bracket kit
(902-0120-0000):
– If you are mounting the AP on a flat surface using the secure
mounting bracket kit, then you need an electric drill with a 4.75-mm
(3/16-in.) drill bit.
– If you are mounting the AP on a pipe or pole using the secure
mounting bracket kit, then you will also need a 38.1-mm to 63.5-mm
で
(1.5-in. to 2.5-in.) pipe or pole, two pole clamps, and hand tools to
tighten the clamps.
http://
http:// Step 1: Connecting Your Computer to the AP
1. If DC powered, connect your computer network port to the PoE port
on the AP using an Ethernet cable. Refer to
2. Connect the AC cable of the DC power adapter to a convenient and
protected power source. Connect the DC output cable of the DC
power adapter to the 48 VDC port on the AP.
http://
http://support.ruckuswireless.com/
https://
for reference.
Figure
NOTE: Alternatively, connect the AP PoE port to a PoE injector or
switch for both power and network connectivity. Connect your
computer network port to the data port of the PoE Injector or to
another port of the switch.
NOTE: In general, switches must have the Link Layer Discovery
Protocol (LLDP) enabled. The PoE switch port must run the LLDP
and Power over Ethernet/MDI (BT5) for the R670 AP to operate in
full-power mode.
NOTE: To configure the AP, connect the computer to another
switch port and manually assign an IP address in the same subnet
as the default management IP address that is depicted on the AP's
label.
NOTE: Alternatively, connect the computer and the AP with a basic
PoE switch in the following ways:
a. Connect the AP to a switch port.
b. Connect the computer to another switch port and manually
assign an IP address to configure the AP.
2.
