Ruckus Wireless R720 Quick Setup Manual

R720 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up your Ruckus
Wireless R720 Dual Band 802.11ac Multimedia Wi-Fi Access Point (AP). After completing
the steps described in this Guide, you will be able to place the R720 at your site and
provide wireless network access to users. The rest of this document refers to the R720 as
an AP.
Note: The minimum software revision for the R720 is standalone
AP base image 106.0 or later, or SmartZone 3.5 or later, or
ZoneDirector 10.0 or later.

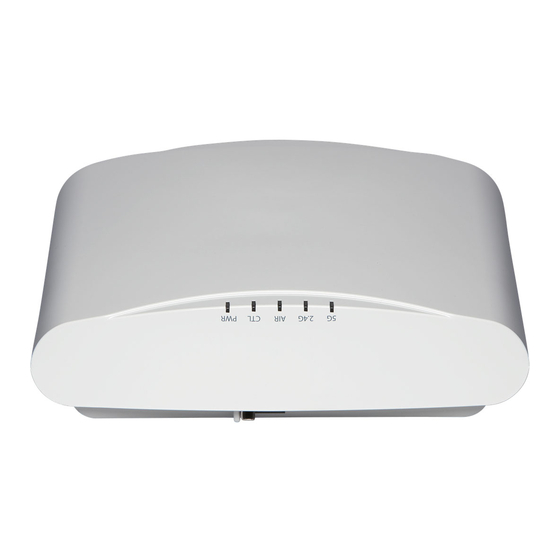

Figure 1. R720 AP
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
•
https://support.ruckuswireless.com
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com
こ の ガ イ ド の⽇本語版は https://support.ruckuswireless.com
•
で ご 覧 く だ さ い
이 가이드의 한국어 버전은 웹 사이트
•
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다
• Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com
• Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com
B Y B
EFORE OU EGIN
Before deploying your Ruckus Wireless device, please check the Ruckus Wireless Web
site for the latest software and release documentation.
• Release Notes and User Guides are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
Copyright © 2017 Ruckus Wireless, Inc.
Published April 2017, Part Number 800-70874-001 Rev C
• Open Source information is available at
http://support.ruckuswireless.com/open_source
P C
ACKAGE ONTENTS
• R720 Access Point
• One T-bar mounting assembly kit, including:
• One T-bar bracket (2 separate plastic parts)
• Two each 1.0" L x No. 8 steel Phillips panhead mounting screws and plastic
wall anchors
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
• This Quick Setup Guide
C AP
ONFIGURING THE
Continue with the following steps:
• Step 1: Collecting Setup Requirements, Hardware, and Tools
• Step 2: Connecting Your Computer to the AP
• Step 3: Preparing Your Computer for AP Setup
• Step 4: Logging Into the AP
• Step 5: Customizing the Wireless Settings
• Step 6: Placing the AP in Your Site
• Step 7: Verifying the Installation
Step 1: Collecting Setup Requirements, Hardware,
and Tools
• A computer running Windows 7 (procedures for common operating systems are
similar).
• One Cat 5e (or better) Ethernet cable.
• A Ruckus Wireless 48VDC power adapter (sold separately).
--OR--
An 802.3at-compliant Power over Ethernet (PoE) switch or PoE injector.
• --OR--
An 802.3af-compliant Power over Ethernet (PoE) switch or PoE injector
.
Note: If powered by 802.3af PoE, note that the feature set is
reduced, as follows:
- 1 x 4 radio chain operation mode
- Second Ethernet port disabled
- USB port disabled
Note: The PoE switch port must run link layer discovery protocol
(LLDP) power over Ethernet/MDI (PoE+) in order for the R720 to
operate in full-power mode. This may require enabling both LLDP
and Power via MDI (dot3) on the switch, if available.
Optional hardware and tools:
• Customer-supplied small padlock with a 3.5mm (0.14") or smaller shackle diameter,
used to fasten the AP to the secure mounting bracket or the T-bar bracket.
• Customer-ordered Ruckus Wireless 902-0120-0000 secure mounting bracket kit:
• If you are mounting the AP on a flat surface using the secure mounting bracket
kit, then you need an electric drill with 4.75mm (3/16") drill bits.
• If you are mounting the AP on a pipe or pole using the secure mounting bracket
kit, then you will also need a 38.1mm to 63.5mm (1.5" to 2.5") pipe or pole,
two included stainless steel clamps, and hand tools to tighten the clamps.
Step 2: Connecting Your Computer to the AP
A After removing your AP from its package, place it next to your computer.
B Using an Ethernet cable, connect your computer's network port to the 2.5G Eth PoE
In port on the AP (A in Figure 2).
C Using an AC adapter (sold separately), connect the AP 48VDC port (B in Figure 2) to
a convenient (and protected) power source.
Alternatively, connect the 2.5G Eth PoE In port to a PoE injector or switch for both
power and network connectivity.
Figure 2. AP ports
D Verify that the PWR LED on the AP is a steady green.
Continue with Step 3: Preparing Your Computer for AP Setup.
Step 3: Preparing Your Computer for AP Setup
Note: The following procedures assume Windows 7 as the
operating system. Procedures for other operating systems are
similar.
A On your Windows 7 computer, configure your network adapter from the Local Area
Connection settings as follows:
Start > Control Panel > Network and Sharing Center > Change
Adapter Settings
B Edit the TCP/IPv4 address settings as follows:
Local Area Connection > Properties > Internet Protocol Version 4
(TCP/IPv4) > Properties
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box appears.
IMPORTANT!
Write down all of the currently active settings so you can restore
your computer to its current configuration later (when this process
is complete).
C Select Use the following IP address (if it is not already selected) and then make the
following entries:
• IP address: 192.168.0.22 (or any available address in the 192.168.0.x
network, except 192.168.0.1)
• Subnet mask: 255.255.255.0
• Default gateway: 192.168.0.1
Leave the DNS server fields empty.
Page 1 of 4
