Summary of Contents for AND UC-450BLE

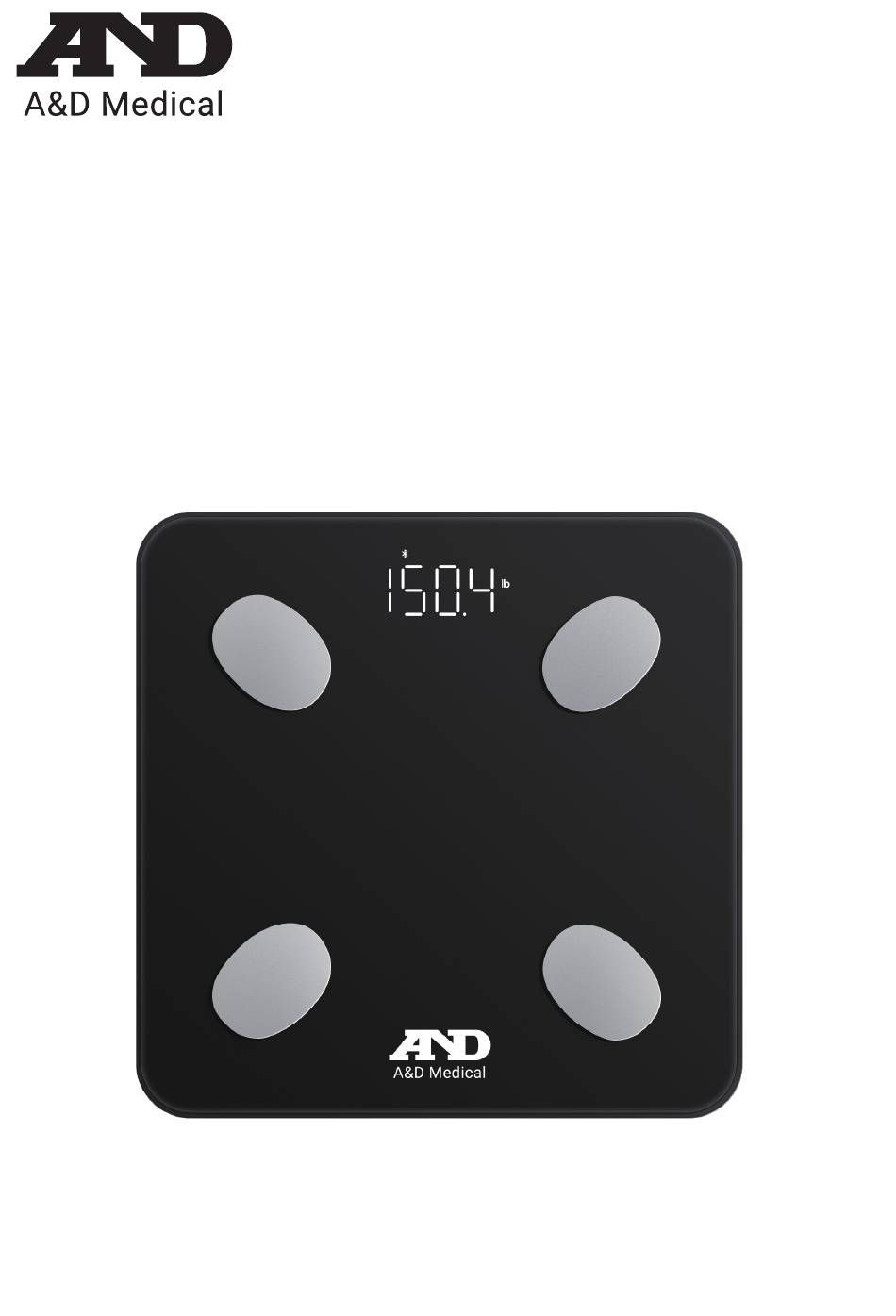

- Page 1 WIRELESS BODY COMPOSITION SCALE UC-450BLE Instruction Manual...
-
Page 2: Table Of Contents
Contents Preface General Information Safety Information Parts Identification Wireless Communication Function Scale Set Up Pairing to Mobile App E-10 Taking Measurements E-11 Troubleshooting E-13 Specifications E-15 Maintenance E-16 Warranty E-17 Appendix E-19... -
Page 3: Preface
Congratulations on purchasing a state-of-the-art A&D Medical connected scale, one of the most advanced health scales available today. Designed for ease of use and accuracy, this device will facilitate your daily weight management regimen. We recommend that you read through this manual carefully before using the device for the first time. -
Page 4: Safety Information
The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: Symbol for “THE... -
Page 5: Indications For Use
• WARNING: No modifications of this equipment is allowed. • During use, the user will contact with the upper surface and the electrode of the scale. The upper surface and the electrode of the scale is type BF Applied part. -
Page 6: Your Scale And Its Environment
• Place the scale on a flat, hard surface. Soft surfaces such as carpet will affect the performance of the scale. • Step onto the platform with bare feet. Stand still and keep full contact with the scale until the measurement is complete. -
Page 7: Parts Identification
Parts Identification LED Display Electrodes Electrodes UNIT Button Battery Compartment Sensor Components 1. Body Composition Scale (UC-450BLE) 2. Four AAA-size Alkaline Batteries (1.5V each) 3. Instruction Manual 4. Quick Start Guide... -
Page 8: Led Display
® by Bluetooth SIG, Inc. and any use of such marks by A&D is under license. Other ® trademarks and trade names are those of their respective owners. This device complies with Part 15 of FCC rules and contains the FCC ID 2AOJNGBF-2008-B. -
Page 9: Scale Set Up
General Instructions This scale applies BIA (Bio-impedance Analysis) technology. A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate body fat. The electrical current is small and may not be felt. - Page 10 Scale Set Up CAUTION • When the symbol “Lo” appears, the scale is running on low batteries and will only operate for ~10 more measurements. Please replace with a new set of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new ones.
-
Page 11: Pairing To Mobile App
Download the free A&D Medical Heart Track app from the App Store or Google Play. Follow the app screens to sign up and begin taking measurements. Note: If you are enrolled in a provider / employee program using a different app than A&D Medical Heart Track, follow the instructions provided by the program. -
Page 12: Taking Measurements
• Open the mobile app Note: Measurements can be taken without connecting to the app. The measurements will be stored in the scale and trans- ferred to the app during the next time a measurement is taken with the app connected. -
Page 13: Data Transmission
• If the data transmission fails, the symbol doesn’t display. The pending measurement data will be temporarily kept in the scale and transmitted to your smartphone when next measurement is complete. E-12... -
Page 14: Troubleshooting
Troubleshooting Error Prompt Error Description Solution Stop using this scale for Overload measurement Replace all four batteries in the same time. Please Low Battery purchase the authorized batteries for replacement When Measuring Problem Root Cause Solution Please step on the Incorrect posture platform Abnormal measuring... - Page 15 CANNOT proceed User is wearing socks or during the measurement, to analyze body fat shoes and keep full contact with the electrodes as well. User is not standing Remain on the scale Measurement data is not on the scale until until the measurement syncing with the app.
-
Page 16: Specifications
Specifications Product name Body Composition Scale (Model UC-450BLE) Dimension Scale: 11.8x11.8x1” / 300x300x25.5mm Net weight 3.7 lbs / 1.6 kg (Not including the batteries) Display Digital LED Measurement unit Pound / Kilogram Measurement range 11 lb to 397 lb / 5 kg to 180 kg 11 - <... -
Page 17: Maintenance
Dont’s: • DO use a dry soft cloth to wipe the dust. • DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to dry up the device. -
Page 18: Warranty
Canada at 1-800-461-0991 for return address, shipping and handling fee, and other instructions for processing warranty. Please ensure you have satisfactory proof of the date of Your purchase and a description of the defect. Returns will not be accepted unless a Return Material Authorization (RMA) Number has been issued from A&D Customer Service Representative. - Page 19 POSSIBILITY OF SUCH DAMAGES. Some states do not allow the exclusion of incidental or consequential damages, so that the above exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that may vary from state to state.
-
Page 20: Appendix
Warning: Portable RF communications equipment (including peripherals such asantenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the equipment UC-450BLE, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. - Page 21 Appendix Guidance and manufacturer’s declaration -electromagnetic emissions and Immunity Table 1 Guidance and manufacturer’s declaration - electromagnetic emissions Emissions test Compliance RF emissions- CISPR 11 Group 1 RF emissions- CISPR 11 Class B Harmonic emissions- IEC 61000-3-2 Not applicable Voltage fluctuations/ flicker emissions...
- Page 22 Appendix Table 3 Guidance and manufacturer’s declaration - electromagnetic Immunity Test Modula- IMMUNITY Fre- Band Distance Service Modulation tion TEST LEVEL quency (MHz) (V/m) (MHz) Pulse TETRA modulation –390 18 Hz GMRS FM ± 5 kHz 430 – 460, FRS deviation 1 0.33...
- Page 24 Manufactured by: A&D Company, Limited 1-243 Asahi, Kitamoto-shi, Saitama-ken, 364-8585 Japan aandd.jp [81] (48) 593-1119 Manufactured for): A&D Engineering, Inc. 4622 Runway Boulevard Ann Arbor, MI 48108 USA andmedical.com 1-888-726-9966 Distributed in Canada by: Auto Control Médical an A&D Company 6695 Millcreek Drive, Unit 6 Mississauga, Ontario L5N 5R8 Canada andmedical.com...
