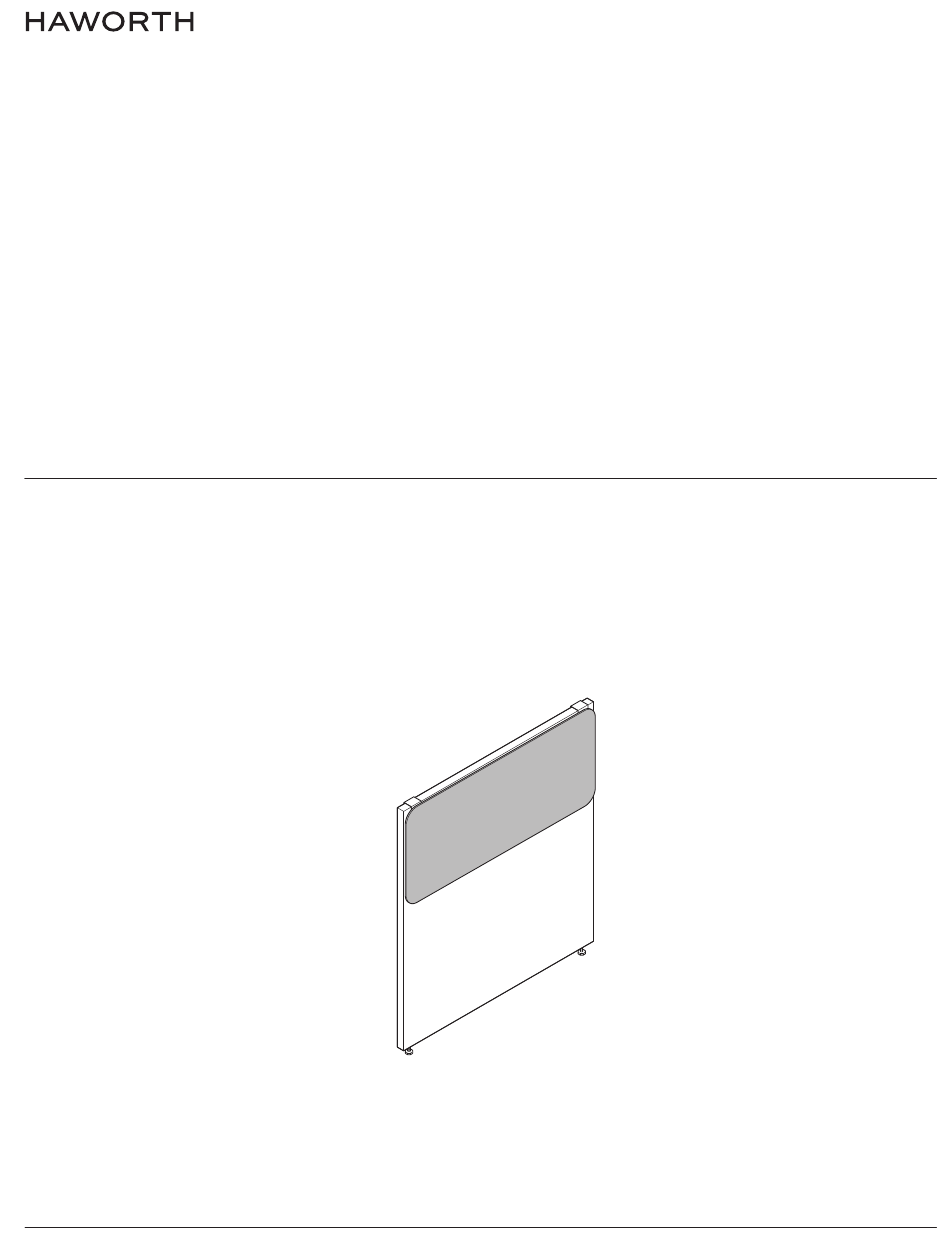

- Page 1 Gallery Panel Accessories Assembly Instructions Compose Echo Tile Echo Tile For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 Volt + Assembly Instructions Tools Required 1/8” Drill Electrical Tape COMPOSE LAMINATE TILE (A) Hooks - Qty. 2 (A2) Cleats - Qty. 4 (S48) Screws - Qty. 4 (S302) Undercut 1/4 x 3/8" Flat Head (B) Tile - Qty. 1 Customer Service: 800 426 8562 E.C.O.
- Page 3 Gallery Panel Accessories Assembly Instructions COMPOSE SCREW OPTIONS - TEMPLATE 0.04” 4-1/8” 1-1/2” 3-3/4” 1/8” Drill 1/4” 5-1/8” 1/8” Drill 1/4” Customer Service: 800 426 8562 E.C.O. No 500000048428 Part No 6100-0312 Rev 1 Page 3 of 6...
- Page 4 Gallery Panel Accessories Assembly Instructions COMPOSE TILE USING SCREWS Locate brackets with template and install to gallary panel as shown. 4 ” 0 . 0 / 2 ” 1 - 1 / 8 ” 4 - 1 ” 1 / 8 D r il ”...
- Page 5 Gallery Panel Accessories Assembly Instructions COMPOSE HOOK OPTIONS - TEMPLATE 19/64” 1-3/4” Customer Service: 800 426 8562 E.C.O. No 500000048428 Part No 6100-0312 Rev 1 Page 5 of 6...
- Page 6 Gallery Panel Accessories Assembly Instructions Drill marked holes and install screws into laminate as shown. (S48) Undercut #8 x 375" Screw Place panel hooks as shown. ECHO TILE POSTIONS Customer Service: 800 426 8562 E.C.O. No 500000048428 Part No 6100-0312 Rev 1 Page 6 of 6...
