This product conforms to UL962 and is certi ed to CAN/CSA C22.2 No. 68.
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this table.
DANGER
- To reduce the risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning or servicing.
WARNING
: TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1.
Unplug from outlet before putting on or taking o parts.
2.
Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3.
Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacturer.
4.
Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5.
Keep the cord away from heated surfaces.
6.
Do not use outdoors.
7.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8.
To disconnect, turn all controls to the o position, then remove plug from outlet.
WARNING
9.
OUTLET ONLY. SEE GROUNDING INSTRUCTIONS.
WARNING
10.
CONFIRM THAT THE APPROPRIATE CRITICAL COMPONENTS AND ACCESSORIES ARE BEING USED WITH THE
FURNISHING.
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER
- Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a quali ed electrician or serviceman if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product - if it will not t the outlet, have a proper outlet installed by a
quali ed electrician.

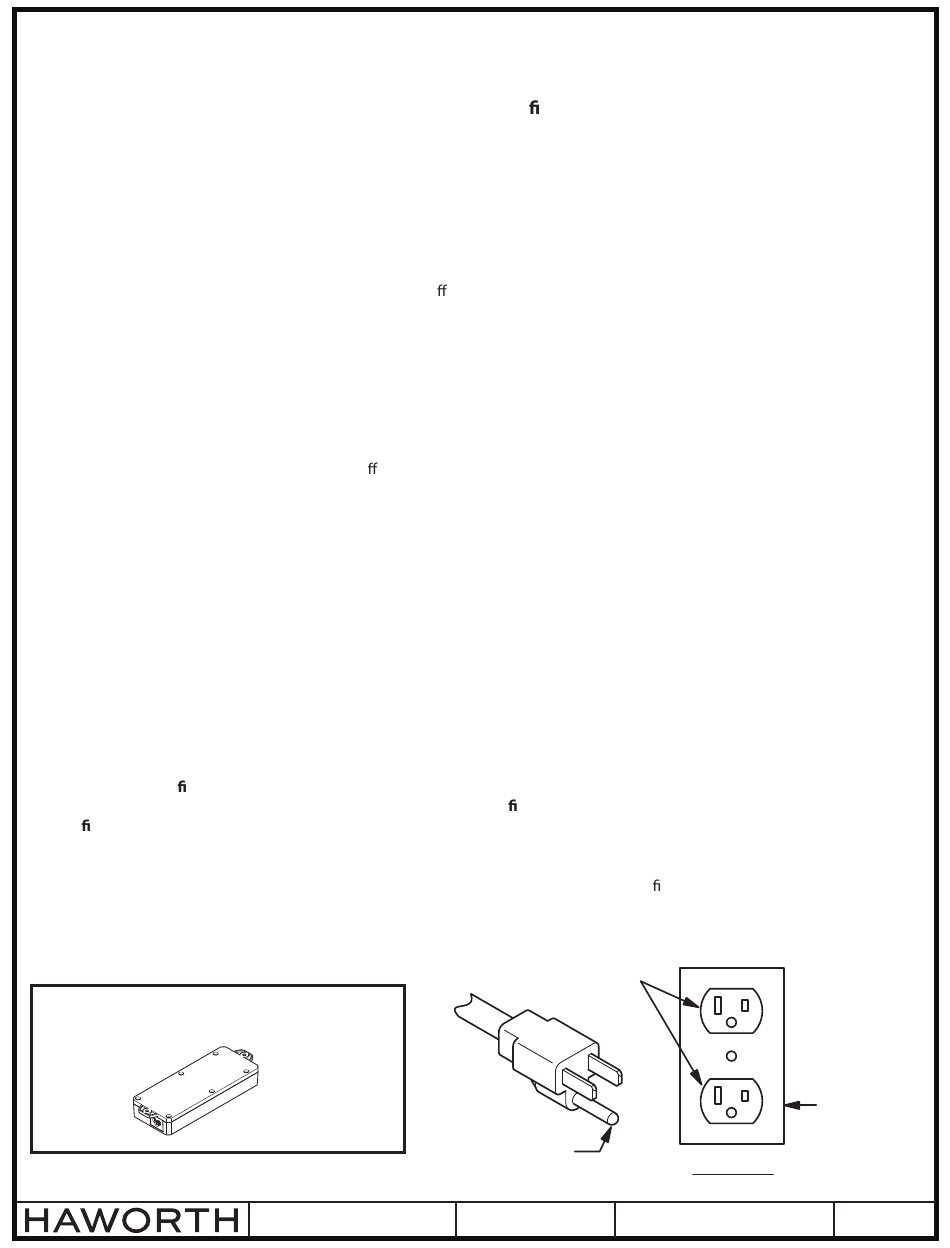

This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A
(see Figure 1). Make sure that the product is connected to an outlet having the same con guration as the plug. No adapter
should be used with this product.
Maximum Load rating including surface: 250 lbs
Electrical Rating:
120V, 60Hz, 5.2A for Echo 2 leg tables
CUSTOMER SERVICE PHONE: 1-800-426-8562
IMPORTANT SAFETY INSTRUCTIONS
For use with ECHO Electric Height Adjustable Tables, 2 Leg
For Commercial or Household Use Only
: RISK OF ELECTRIC SHOCK - CONNECT THIS FURNISHING TO A PROPERLY GROUNDED
: RISK OF ELECTRIC SHOCK, FIRE, AND INJURY. REVIEW THE ASSEMBLY INSTRUCTIONS TO
SAVE THESE INSTRUCTIONS
E.C.O. No:
245-771
GROUNDED
OUTLET
GROUNDED
1 of 7
Part No:
Page:
GROUNDED
OUTLET BOX
FIGURE 1
Rev:
6100-0226
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECHO 6100-0226 and is the answer not in the manual?

Questions and answers

Related Manuals for Haworth ECHO 6100-0226

Summary of Contents for Haworth ECHO 6100-0226

  • Page 1 IMPORTANT SAFETY INSTRUCTIONS For use with ECHO Electric Height Adjustable Tables, 2 Leg For Commercial or Household Use Only This product conforms to UL962 and is certi ed to CAN/CSA C22.2 No. 68. When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this table.
  • Page 2 ECHO® Desk Installation Instructions Scale 1 : 1 Tools Required 4mm Hex 9/16” PARTS TABLE SIZE(S) Depth Width 46” (45.68”) 29” 54” (53.68”) S200 (28.68”) 58” (57.68”) 64” (63.68”) 70” (69.68”) NOTE: Footrest is optional. LOCKING CASTER (S200) (4 Qty.) M6 X 10mm Button Head (S202) (2 Qty.)
  • Page 3 S294 (S294) (8 Qty.) M6 x 50mm Screw 9/16” LOCKING CASTER NON-LOCKING CASTER TUBE DIVIDER AND TETHER HITCH BRACKET INSTALLATION NOTE: The hitch is only used with casters. NOTE: Refer to instructions (61000228) to learn more about tether installation. TUBE DIVIDERS TETHER HITCH CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O.
  • Page 4 (6 Qty.) (S-1) #10 x 1" Pan Head Screw S200 NOTE: Clamp worksurface to hold in place. NOTE: Power access is optional. S200 (S200) (4 Qty.) M6 X 10mm Button Head WITHOUT WITH POWER POWER ACCESS ACCESS CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O.
  • Page 5 IMPORTANT! MAKE SURE CONTROL BOX (F) S202 IS FIRMLY ATTACHED TO THE WORKSURFACE! S202 (S202) (2 Qty.) M5 X 16mm Pan Head Screw (S-1) (2 Qty.) NOTE: Refer to instructions (61000190, 61000191 and 61000192) to learn more #10 x 1" Pan Head Screw about cable tray installation.

  • Page 6: Default Reset

    WAKE UP NOTE: For Programmable Paddles (K) only. Paddle (K) enters a power save mode after 10 seconds of inactivity. Prior to each use, user must “TAP AND RELEASE” paddle (K) or “TAP AND RELEASE” the menu button (K3) to activate paddle (K).
  • Page 7 Lower table all the way down Lower table all the way down Release paddle (C) Press paddle (C) down Hold down paddle (C) for 15 seconds and release “HOLD FOR 15 SECONDS” RESET NOTE: This step only applies to programmable paddle. Press and hold down paddle (C) until table moves down and continue to hold until table stops moving up MOVES DOWN SLIGHTLY...
