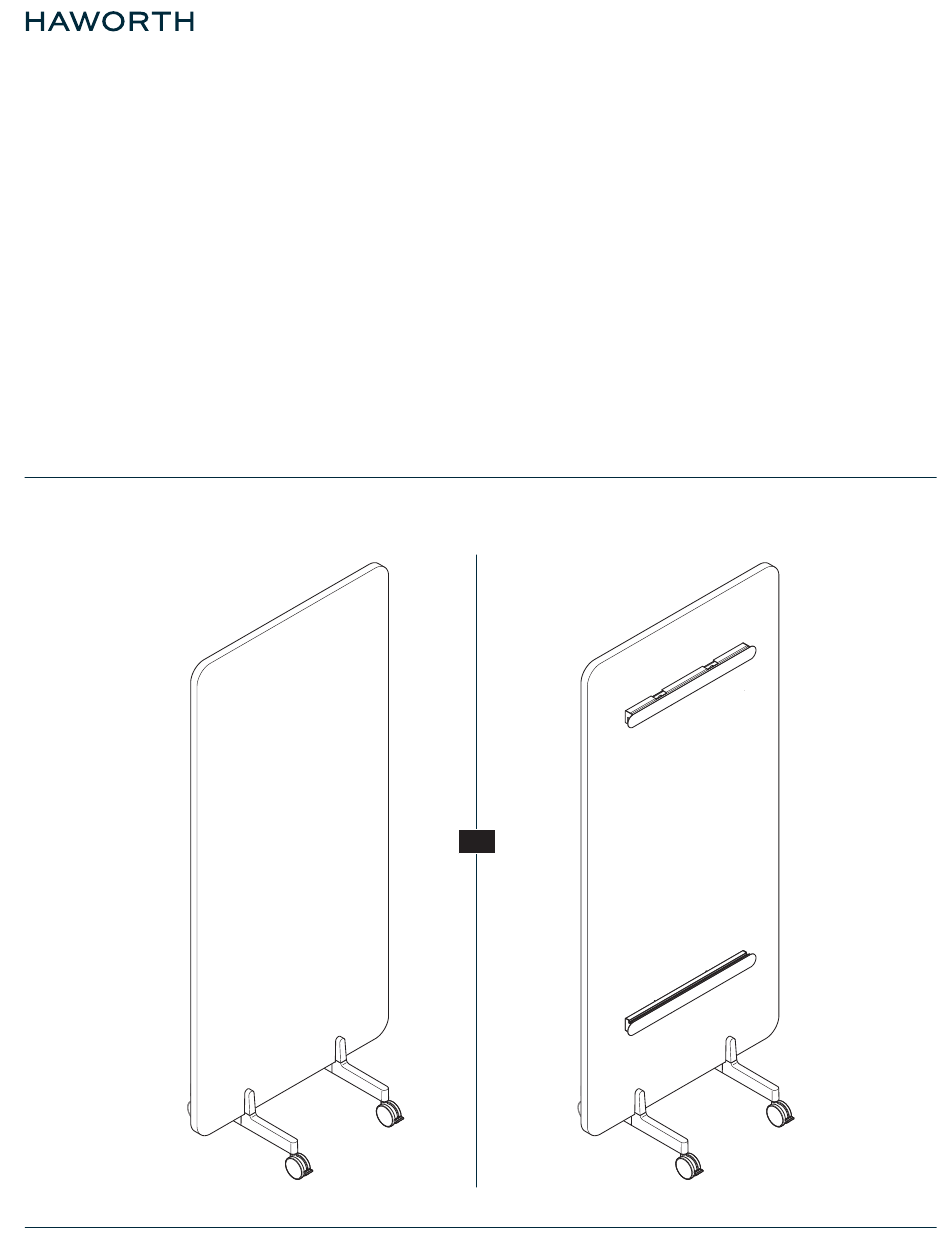

Collaborate
Assembly Instructions
Congratulations on your
purchase of a new
Collaborate Screen!
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to assemble your new screen?
Follow all the steps carefully before using your screen.
That's it! Now you're ready to get down to business with a
screen that's just right for you and your space.
OR

Advertisement

loading
Need help?

Need help?

Do you have a question about the Collaborate and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haworth Collaborate

Summary of Contents for Haworth Collaborate

  • Page 1 Follow all the steps carefully before using your screen. purchase of a new That’s it! Now you’re ready to get down to business with a Collaborate Screen! screen that’s just right for you and your space. For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...

  • Page 2: Tools Required

    Collaborate Assembly Instructions Tools Required 5/32” & 7/32” 3/8” Wrench Allen Wrench 9/16” Wrench Assembly Overview S328 S332 RAILS ARE OPTIONAL S328 S332 Scale 1 : 1 (S329) 3/16” S329 1/4-28 Square Nut (S-331) S330 3/8-16 x 1/2" Button Head Screw (S332) 1/4-20 x 3/4"...
  • Page 3 Collaborate Assembly Instructions RAILS ARE OPTIONAL (A) Hard Surface Easel (B) Rails (Top) - Qty. 1 or 2 RAILS ARE OPTIONAL (C) Rails (Bottom) - Qty. 1 or 2 (D) Support Legs - Qty. 2 Front, 2 Back Non-Monitor Monitor NOTE: Longer leg is used with Monitor applications.
  • Page 4 Collaborate Assembly Instructions Lay easel (A) down and install legs (D) S330 (S329) 3/16” 1/4-20 Square Nut S329 (S330) 1/4-20 x 2" Button Head Screw Install metal straps (E) NOTE: DO NOT install screws in the slotted holes in this step.
  • Page 5 Collaborate Assembly Instructions Squeeze support legs (D) together and install screws (S331 ) SQUEEZE NOTE: Squeeze with your hands to help even out gap. SQUEEZE TIGHTEN S331 TIGHTEN S331 SQUEEZE (S331) SQUEEZE 3/8-16 x 1/2" Button Head Screw Tighten all screws (S330) and nuts (S329) NOTE: Gap is expected.
  • Page 6 Collaborate Assembly Instructions Install casters (G & H) NOTE: Locking Caster (G) always on accessory side. CASTER LOCKING LOCKING GLIDE NON-LOCKING NON-LOCKING Rotate easel (A) onto casters Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0274 Rev 1...
  • Page 7 Collaborate Assembly Instructions Install all 4 covers (F) NOTE: If needed tap with a plastic hammer only. Install all 8 bolts (S328) with 1/4” gap 1/4” S332 S328 1/4” S328 S332 (S332) 1/4-20 x 3/4" Hex Head Bolt Customer Service: 800 426 8562 E.C.O.
  • Page 8 Collaborate Assembly Instructions Install 2 top rails (B) and 2 bottom rails (C) TIGHTEN INSTALL TOP RAIL S332 BOTTOM RAIL S332 INSTALL TIGHTEN (S332) 1/4-20 x 3/4" Hex Head Bolt Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0274...
  • Page 9 Collaborate Assembly Instructions Install markerboard (M) NOTE: Always use markerboards handle when installing, moving, and removing from rail. Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0274 Rev 1 Page 9 of 9...
