Haworth UPSIDE Series Manual

Electric height adjustable tables, 2 leg for commercial use only
Hide thumbs

Advertisement

Quick Links

Download this manual
This product conforms to UL962 and is certified to CAN/CSA C22.2 No. 68.
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this table.
DANGER
- To reduce the risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning or servicing
WARNING
- TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1.
Unplug from outlet before putting on or taking off parts.
2.
Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3.
Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recom-
mended by the manufacturer.
4.
Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5.
Keep the cord away from heated surfaces.
6.
Do not use outdoors.
7.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8.
To disconnect, turn all controls to the off position, then remove plug from outlet.
WARNING
9.
OUTLET ONLY. SEE GROUNDING INSTRUCTIONS.
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER
- Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a
qualified electrician.

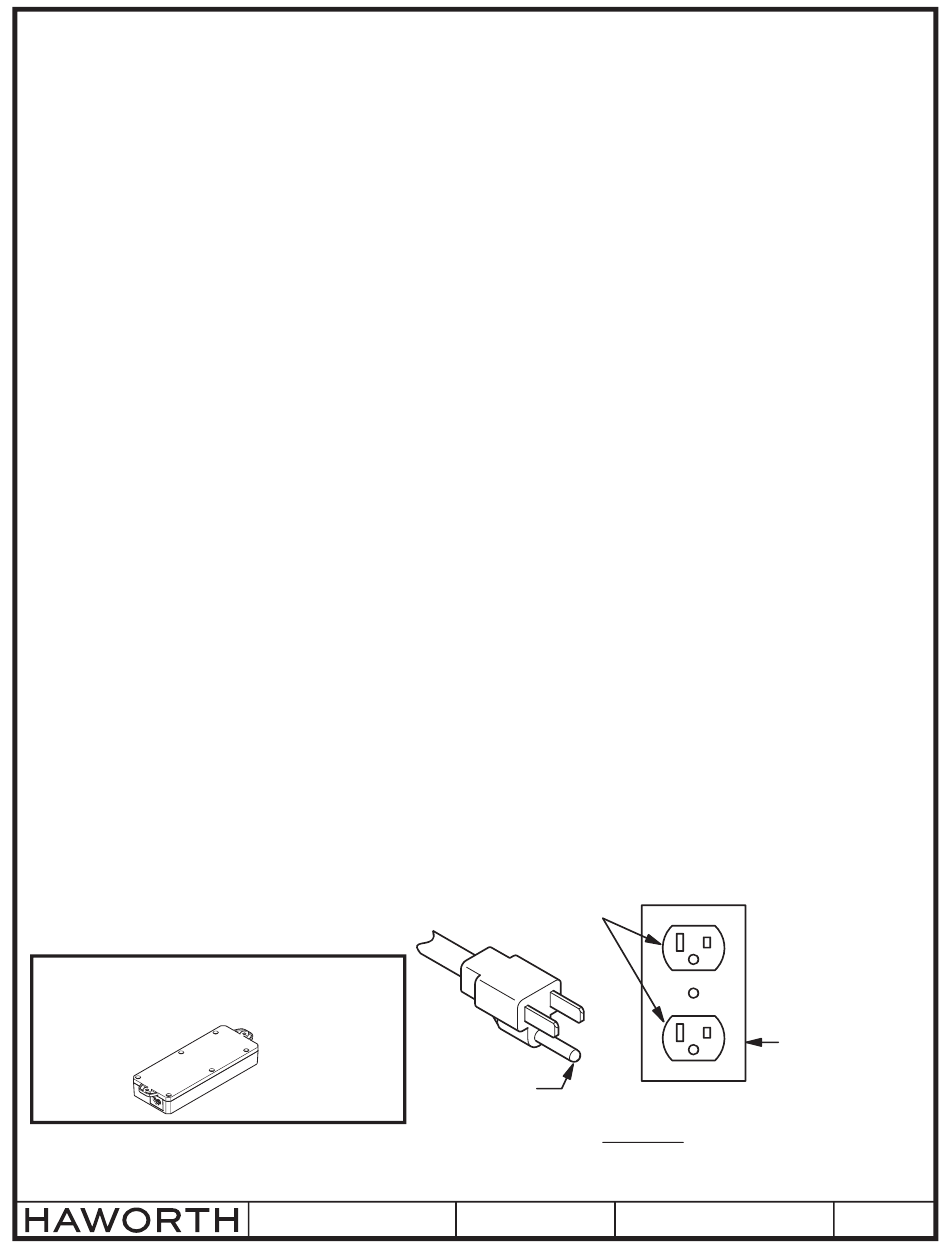

This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in Figure 1.
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used
with this product.
Max Static Load: 250 lbs (includes weight of worksurface)
Electrical Rating:
120V, 60Hz, 6.25A for Upside Standard 2 leg tables
120V, 60Hz, 6A for Upside Value 2 leg tables
CUSTOMER SERVICE PHONE: 1-800-426-8562
IMPORTANT SAFETY INSTRUCTIONS
For use with UPSIDE Electric Height Adjustable Tables, 2 Leg
For Commercial Use Only
: RISK OF ELECTRIC SHOCK - CONNECT THIS FURNISHING TO A PROPERLY GROUNDED
SAVE THESE INSTRUCTIONS
E.C.O. No:
245-650
GROUNDED
OUTLET
GROUNDED
PIN
FIGURE 1
1 of 26
Page:
GROUNDED
OUTLET BOX
Part No:
6100-0110
Rev:
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPSIDE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haworth UPSIDE Series

Summary of Contents for Haworth UPSIDE Series

  • Page 1 IMPORTANT SAFETY INSTRUCTIONS For use with UPSIDE Electric Height Adjustable Tables, 2 Leg For Commercial Use Only This product conforms to UL962 and is certified to CAN/CSA C22.2 No. 68. When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this table.
  • Page 2 UPSIDE® Height Adjustable Tables, 2 Leg Installation Instructions Scale 1 : 1 Tools Required 13mm S200 S200 S201 S201 S206 (S-90) S202 M6 X 8mm Set Screw (S200) S209 M6 X 10mm Button Head (S209) M6 X 14mm Button Head (S206) M4 - 30mm Pan Head Screw (S201)
  • Page 3 (S200) IMPORTANT! INSTALL SCREWS (S200) M6 X 10mm Button Head LOOSELY! LOOSE TIGHT S200 IMPORTANT! INSTALL CHANNEL (H1) AS SHOWN! - SLOT FACING IN AND NOTE POSITION OF LONG TAB! LONG TAB (S200) TIGHT S200 M6 X 10mm Button Head IMPORTANT! S200 TIGHTEN ALL 12...
  • Page 4 NOTE: Use bracket (B) as template and predrill holes. 1/8” Drill 1/4” WORKSURFACE (inches) C-Style C-Style T-Style T-Style 22-11/16 28-11/16 22-11/16 28-11/16 1-5/8 3-7/16 2-3/4 - 2-3/4 - 2-3/4 - 2-3/4 - 12 MAX. 12 MAX. 12 MAX. 12 MAX. WORKSURFACE (mm) C-Style C-Style...
  • Page 5 IMPORTANT! (S201) S-90 MAKE SURE SETSCREWS (S-90) ENGAGE RAILS (H1) M5 X 20mm Pan Head Screw (S-90) S201 M6 X 8mm Set Screw NON-LOCKING CASTER (S209) LOCKING CASTER M6 X 14mm Button Head NOTE: Casters are Optional and ordered separately. S209 CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O.
  • Page 6 IMPORTANT! MAKE SURE CONTROL BOX (F) IS FIRMLY ATTACHED TO THE (S202) WORKSURFACE! M5 X 16mm Pan Head Screw S202 IMPORTANT! PLUG IN CABLE (D) INSTALL SCREWS (S202) INSTALL CABLE (J) (S202) NOTE: For frame (H) less than 46 inches wide mount control module (F) outside of frame (H) as shown.
  • Page 7 (S206) M4 - 30mm Pan Head Screw S206 FLIP TABLE OVER CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O. No: 245-650 7 of 26 Rev: Page: Part No: 6100-0110...
  • Page 8 Operating Your Upside Height-Adjustable Table Note: Avoid risk of injury with your height-adjustable table through proper training. For safe operation, ensure that there is at least 1” between the height-adjustable worksurface and any adjacent objects such as storage or fixed worksurfaces. Paddle Type Your table is equipped with one of two paddle types (programmable or standard).
  • Page 9 Lower table all the way down Lower table all the way down Release paddle (C) Press paddle (C) down Hold down paddle (C) for 10 seconds and release Release paddle (C) “HOLD FOR 10 SECONDS” RESET NOTE: This step only applies to programmable paddle.
  • Page 10 PROGRAMMABLE PADDLE FEATURES PROGRAMMABLE STANDARD PADDLE PADDLE Saving the first preset height position Raise table to desired standing height (above 35.5 inches) Press button (C2) Lift paddle (C) 35.5” - ABOVE Tap paddle (C) up until “Favorite” menu is displayed Tap paddle (C) up FAVORITE Press button (C2)
  • Page 11 Saving the second preset height position Raise or lower table to desired seated height (below 35.5 inches) Press button (C2) Lift paddle (C) 35.5” - BELOW Tap paddle (C) up until “Favorite” menu is displayed Tap paddle (C) up FAVORITE Press button (C2) Press button (C2) again to set “Preset Height 2”...
  • Page 12 Moving to a preset height Lower to Preset Height 1 (42”) Tap paddle (C) down 48” 2 times rapidly 42” (PRESET HEIGHT 1) Lower to Preset Height 2 (25”) Tap paddle (C) down 2 times rapidly 42” 25” (PRESET HEIGHT 2) Raise back to Preset Height 1 (42”) Tap paddle (C) up 2 times rapidly...
  • Page 13 Set move reminder Finding and setting the “REMINDER” setting Press button (C2) Tap paddle (C) up until the Press button (C2) “REMINDER” menu is displayed REMINDER REMINDER Tap paddle (C) up until the Press button (C2) desired reminder is displayed 45.0 How move reminder bar works Resetting move reminder...
  • Page 14 Turn off reminder Press button (C2) Tap paddle (C) up until the Press button (C2) “REMINDER” menu is displayed REMINDER REMINDER Tap paddle (C) up until the Press button (C2) “turn off reminder” is displayed CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O. No: 245-650 14 of 26 Rev:...
  • Page 15 Set Upper and Lower Storage Stop Set upper storage stop Raise table to desired upper Press button (C2) storage stop height Tap paddle (C) up until Press button (C2) “Limits” is displayed LIMITS LIMITS Tap paddle (C) up until the Press button (C2) to set upper storage stop height “UPPER STORAGE STOP”...
  • Page 16 Set Upper and Lower Storage Stop Set lower storage stop Lower table to desired lower storage stop height Press button (C2) Press paddle (C) down Tap paddle (C) up until the Press button (C2) “LIMITS” menu is displayed LIMITS LIMITS Tap paddle (C) up until the Press button (C2) to set lower NOTE: Performing a reset with lower...
  • Page 17 Clear Upper and Lower Storage Stop Press button (C2) Press button (C2) Tap paddle (C) up until the “LIMITS” menu is displayed LIMITS LIMITS Press paddle (C) down until the Press button (C2) to clear upper and lower “CLEAR UPPER AND LOWER STORAGE storage stop height STOP”...

  • Page 18: The Lock Mode

    Set Lock Mode Follow steps to set “Lock Mode” Press button (C2) Press button (C2) Tap paddle (C) up until “LOCK” menu is displayed LOCK LOCK Tap paddle (C) up until “LOCK” Press button (C2) to set lock is displayed on paddle automatically after 10 seconds of inactivity The Lock Mode...
  • Page 19 Turn off Lock Press button (C2) Press button (C2) Tap paddle (C) up until “LOCK” menu is displayed LOCK LOCK Tap paddle (C) up until Press button (C2) “UNLOCK” is displayed CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O. No: 245-650 19 of 26 Rev: Page: Part No:...
  • Page 20 Set Vibration Pattern Follow steps to set “Vibration Pattern” Press button (C2) Press button (C2) Tap paddle (C) up until “VIBRATION” menu is displayed VIBRATION VIBRATION Press button (C2) Tap paddle (C) up until desired “VIBRATION PATTERN” is displayed MORE LESS VIBRATION VIBRATION...
  • Page 21 Change Collision Detection Sensitivity Follow steps to change Collision Detection Sensitivity Lower table all the way down Release paddle (C) Press paddle (C) down Hold down paddle (C) for 10 seconds and release Release paddle (C) “HOLD FOR 10 SECONDS” RESET Lift paddle (C) and hold until a number is displayed Press paddle (C) down and hold until table...
  • Page 22 Upside Table Troubleshooting Guide Note: Parts of this quide require a programmable paddle handset, service part # 8754-8401. Table height adjustment issue START Does performing Does the table a reset resolve start moving, Go to Collision the issue? then reverse Complete Detection page.
  • Page 23 Upside Table Collision Detection Is the path of motion of From the table and attached troubleshooting accessories completely Remove obstacles start page clear of obstructions on all sides, including wires? Is the control box snugly Ensure control box is secured fastened to work tightly and is flat against the surface?
  • Page 24 Upside Table Errors Does error Perform a Complete From front “H01” Duty cycle re-occur after second reset page protection error? running the table up & down? Leave table plugged into wall and idle for 20 minutes. (Table is intended to run maximum of 2 min on + 18 min off ) Error Description Troubleshooting steps...
  • Page 25 Upside Table Power Is the power cord firmly From plugged into the wall troubleshooting outlet and control box? Plug in power cord start page Is the wall outlet powered? (Do other devices power up when Resolve power issue plugged in?) Is the paddle firmly plugged into the control Plug in paddle...
  • Page 26 2) Flip table onto soft, clean surface 3) Loosen all frame screws 4) Tighten all frame screws 5) Flip table 6) Plug in table Perform a reset Issue resolved? Complete Contact Haworth corrections CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O. No: 245-650 26 of 26 Rev: Page:...
