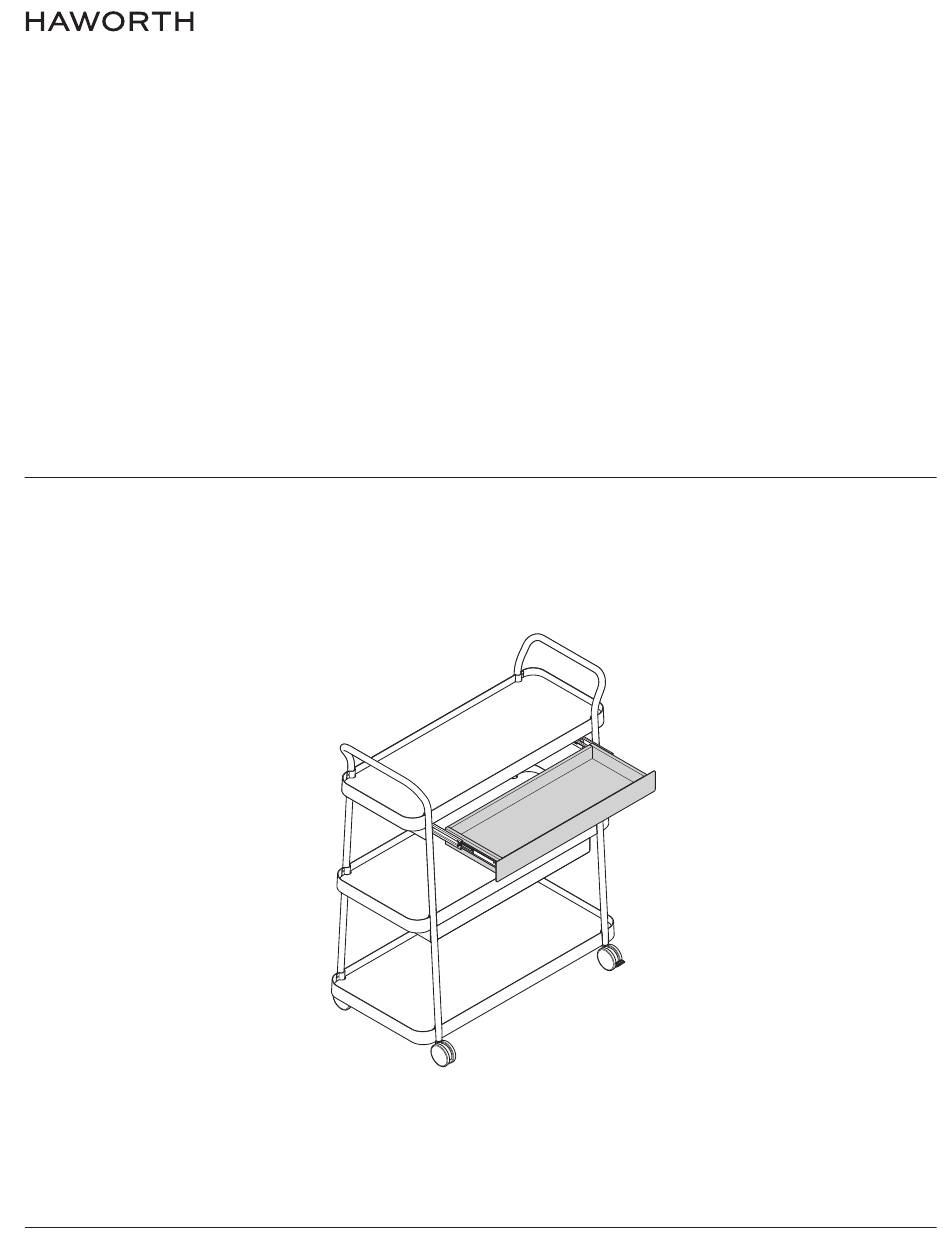

Haworth Collaborate Accessory Drawer Assembly Instructions

Download this manual

Collaborate

Assembly Instructions

Congratulations on your

purchase of a new Collaborate

Accessory Drawer!

For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com

Let's start to assemble your new Accessory Drawer?

Follow all the steps carefully before using your accessory

Drawer.

Need help?

Do you have a question about the Collaborate Accessory Drawer and is the answer not in the manual?

Page 1 Congratulations on your Let’s start to assemble your new Accessory Drawer? purchase of a new Collaborate Follow all the steps carefully before using your accessory Drawer. Accessory Drawer! For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
Page 2 Collaborate Assembly Instructions Tools Required Magnetic Tip Assembly Overview (S-3) #10 x 5/8" Pan Head Screw (A) Cart (B) Drawer Frame (C) Drawer (S-3) #10-24 x 5/8” Screws - Qty. 4 Customer Service: 800 426 8562 E.C.O. No 5_58906 Part No 6100-0278 Rev 1 Page 2 of 5...
Page 3 Collaborate Assembly Instructions Remove drawer (C) Rotate Cart (A) upside down Customer Service: 800 426 8562 E.C.O. No 5_58906 Part No 6100-0278 Rev 1 Page 3 of 5...
Page 4 Collaborate Assembly Instructions Install drawer frame (B) using predrilled holes as shown (S-3) #10 x 5/8" Pan Head Screw NOTE: Orient the drawer to open from either side of cart (A). NOTE: Drawer (C) CANNOT open in the direction of the markerboard rail (D).
Page 5 Collaborate Assembly Instructions Rotate Cart (A) onto casters Install drawer(s) (C) Customer Service: 800 426 8562 E.C.O. No 5_58906 Part No 6100-0278 Rev 1 Page 5 of 5...
