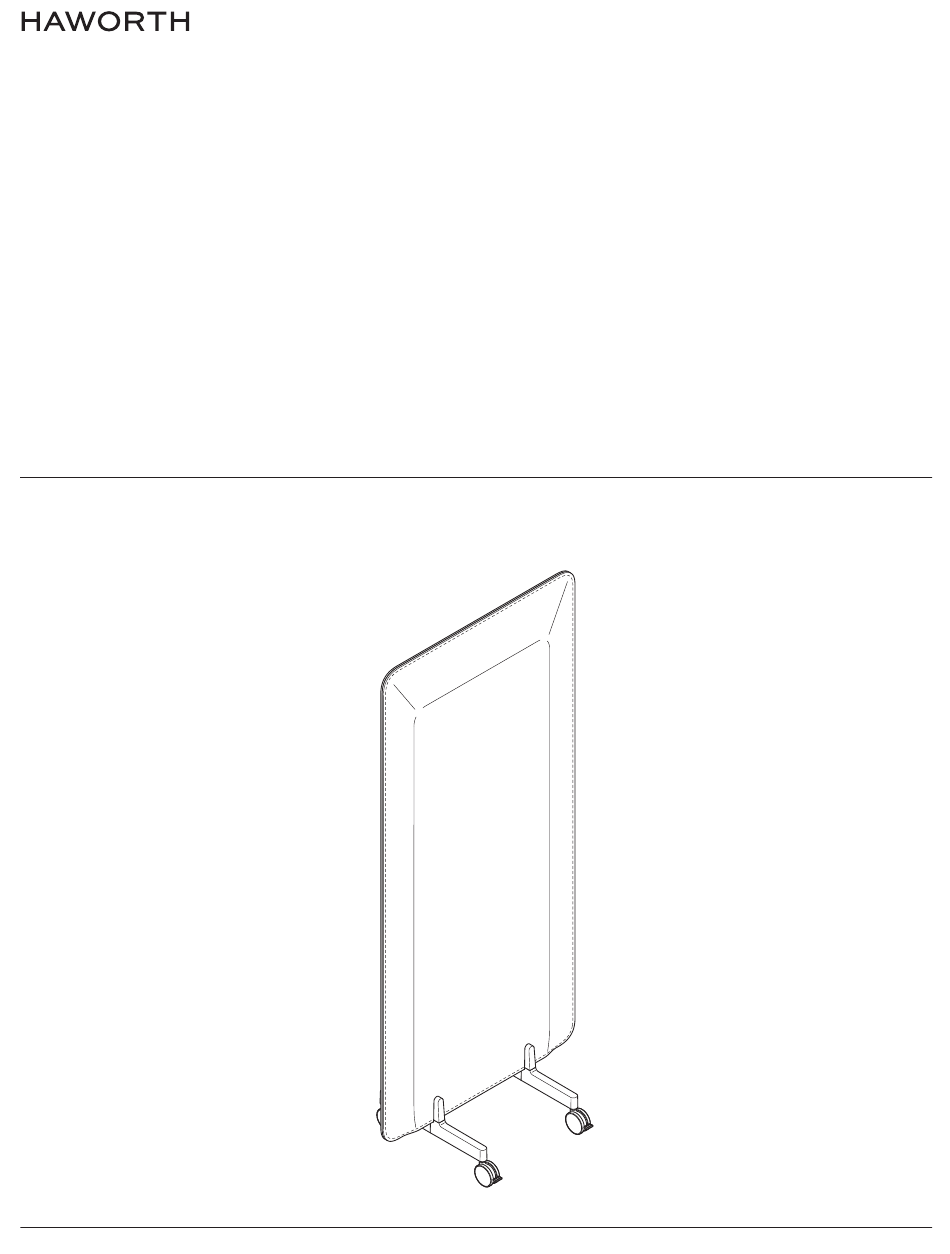

Collaborate
Assembly Instructions
Congratulations on your
purchase of a new
Collaborate Fabric Screen!
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to assemble your new screen?
Follow all the steps carefully before using your screen.
That's it! Now you're ready to use your new screen.
36" to 48"

Advertisement

loading
Need help?

Need help?

Do you have a question about the Collaborate and is the answer not in the manual?

Questions and answers

Related Manuals for Haworth Collaborate

Summary of Contents for Haworth Collaborate

  • Page 1 Follow all the steps carefully before using your screen. purchase of a new That’s it! Now you’re ready to use your new screen. Collaborate Fabric Screen! 36” to 48” For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...

  • Page 2: Tools Required

    Collaborate Assembly Instructions Tools Required 5/32” & 7/32” Magnetic Tip 3/8” Wrench Allen Wrench 9/16” Wrench Assembly Overview NOTE: Install fabric (A) before installing support legs (D). S154 S154 (S329) 3/16” S329 1/4-28 Square Nut (S154) S330 #10-24 x 1/2" Screw (S331) 3/8-16 x 1/2"...
  • Page 3 Collaborate Assembly Instructions (A) Fabric Surface Easel (D) Support Legs - Qty. 2 Front, 2 Back (J) Vertical Frame - Qty. 2 Non-Monitor No Pin Monitor NOTE: Longer leg is used with Monitor applications. 42”, 45”, 66”, 69” (E) Metal Straps - Qty. 2 height 16”...
  • Page 4 Collaborate Assembly Instructions Assemble frame (J & K) NOTE: Install screws (S154) S154 in the order as shown. NOTE: Make sure these holes are facing out. NOTE: Make sure these holes are facing out. S154 (S154) #10-24 x 1/2" Screw Slide fabric (A) over frame (K &...
  • Page 5 Collaborate Assembly Instructions Loosely install legs (D) DO NOT TIGHTEN S330 NOTE: Align holes in fabric (A) with frame holes (J). DO NOT TIGHTEN (S329) 3/16” 1/4-28 Square Nut (S330) S329 1/4-28 x 2" Button Head Screw Install metal straps (E) NOTE: Install metal straps (E) with only 2 screws (S331).
  • Page 6 Collaborate Assembly Instructions Squeeze support legs (D) together and install screws (S331 ) SQUEEZE NOTE: Squeeze with your hands to help even out gap. SQUEEZE TIGHTEN S331 TIGHTEN S331 SQUEEZE (S331) SQUEEZE 3/8-16 x 1/2" Button Head Screw Tighten all screws (S330) and nuts (S329) NOTE: Gap is expected.
  • Page 7 Collaborate Assembly Instructions Install casters (G & H) CASTER LOCKING LOCKING GLIDE NON-LOCKING NON-LOCKING Rotate easel (A) onto casters Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0275 Rev 1 Page 7 of 8...
  • Page 8 Collaborate Assembly Instructions Install all 4 covers (F) NOTE: If needed tap with a plastic hammer only. Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0275 Rev 1 Page 8 of 8...
