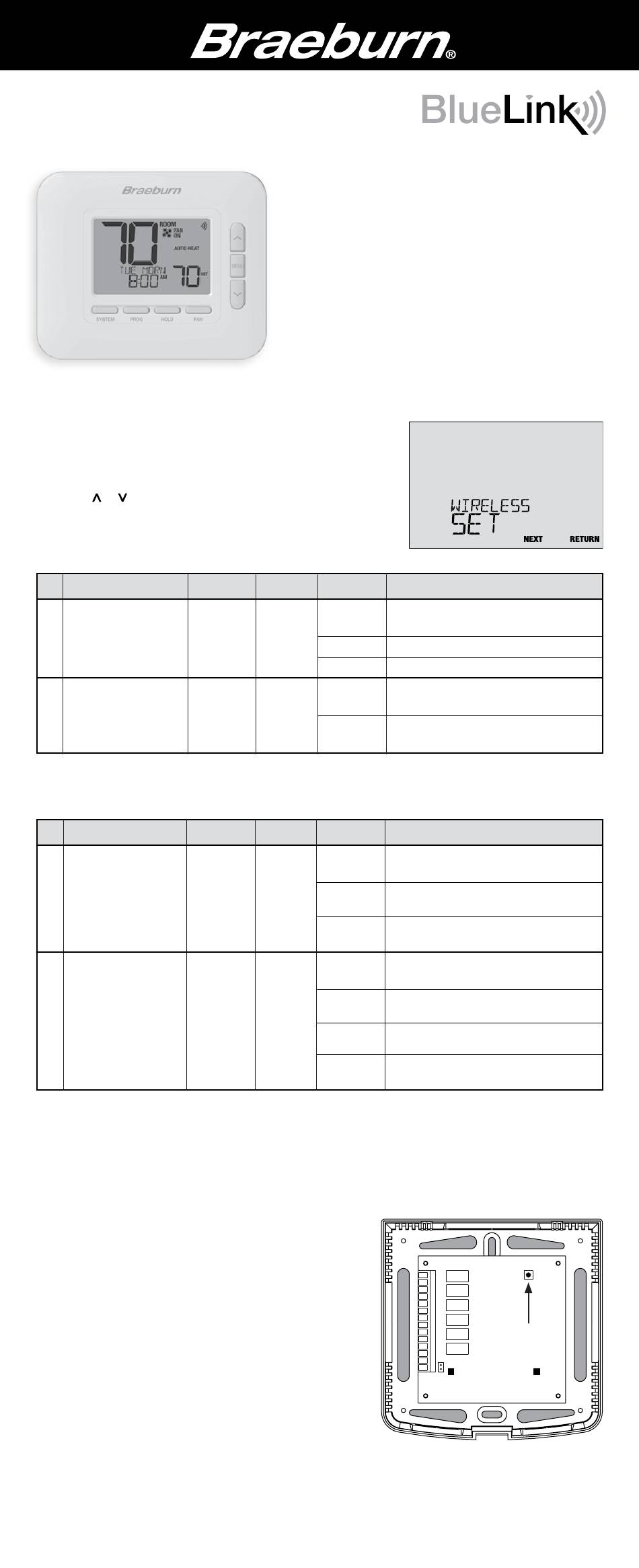

Braeburn 8500 Setup Manual

Wireless
Setup Guide
The Wireless Menu allows you to pair wireless devices, review devices
currently paired, and to clear wireless connections when necessary.
To Enter the Wireless Menu
1 Press and release the MENU button
2 Use the
or buttons to select WIRELESS SET
3 Press NEXT (HOLD) to confirm this choice and enter the Wireless Menu
4 Press NEXT (HOLD) or BACK (PROG) to move to the next or previous setting
5 Press RETURN (FAN) to exit or wait 30 seconds
No. Option
Wireless Pairing Mode PAIR
1
2 Control Module
Pairing Mode
No. Option
3 Wireless Sensor
Pairing Mode
4 Wireless Clear
Pairing Wireless Devices - CONTROL MODULE
1 Wire and Install the Control Module: Properly wire and
configure your thermostat. NOTE: The control module requires
24 VAC power on the RC and C terminals in order to operate.
Ensure the control module LED labeled PWR lights up blue
before proceeding.
2 Power Up Thermostat: Power up the thermostat using either
2 AA batteries or using the optional 24V hardwired power
connections. The thermostat display should start up.
3 Initiate CMOD Wireless Pairing Mode: Use option #2 of the
Wireless Menu to initiate Wireless Pairing mode.
4 Put the Control Module into Wireless Pairing Mode:
Open the cover of the Control Module and hold the CONNECT
button for 3 seconds. The far right LED labeled COMM will start
to flash slowly. This indicates the Control Module is now
attempting to pair with the thermostat. When the pairing is
successful, the COMM LED will turn solid blue to indicate a successful connection. The thermostat display
should indicate PAIRED CMOD to confirm the pairing was successful.
5 Press NEXT (HOLD) to advance to pairing Wireless Sensors, or press RETURN (FAN) to exit the Wireless Menu.
Model 8500
Universal Programmable
Wireless Thermostat Kit
Leave this Setup Guide
with thermostat.
Displayed Default
NONE
CMOD PAIRING
Displayed Default
PAIRING SENS
CLEAR NONE
Available Description
NONE
Select if you do not want to initiate
wireless pairing
CMOD
Select to pair with a control module
SENS
Select to pair with wireless remote sensors
PAIRING
The thermostat is ready to pair with a
control module.
PAIRED
The thermostat is already paired with a
control module.
Available Description
PAIRING
The thermostat is ready to pair
SENS
with a sensor.
PAIRED
The thermostat is paired with a
IDS1
wireless indoor sensor
PAIRED
The thermostat is paired with a
ODS
wireless outdoor sensor.
NONE
Select if you do not want to clear any
wireless pairing.
CMOD
Clear the pairing with the
control module.
SENS
Clear the pairing with all
sensors.
ALL
Select to clear wireless connections with
the control module and all wireless sensors.
PWR
®
8500-105-01
continued
Connect
Button
COMM
