Braeburn Premier 5300 User Manual

Premier series universal auto changeover thermostat up to 2 heat / 2 cool conventional and heat pump
Hide thumbs

Advertisement

Quick Links

Download this manual

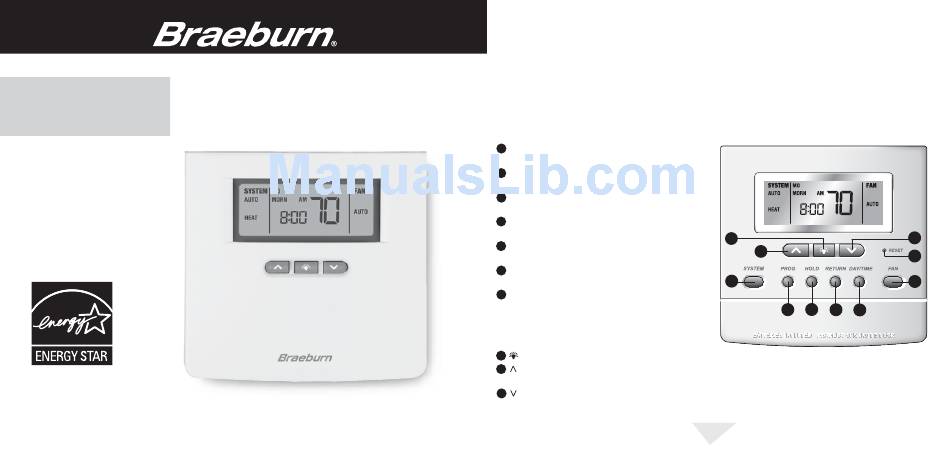

Premier Series
MODEL
5300
Universal Auto Changeover Thermostat
Up to 2 Heat / 2 Cool
Conventional and Heat Pump
USER
MANUAL
READ ALL INSTRUCTIONS
BEFORE PROCEEDING
For more information on energy
savings, go to www.energystar.gov
Braeburn Systems LLC, as an Energy Star partner has determined that this product meets the Energy Star Guidelines developed by the
U.S. Environmental Protection Agency & the U.S. Department of Energy for maximum energy efficiency.
© 2006 Braeburn Systems LLC • Patents Pending • All Rights Reserved. Pub. No. 5300-110-002
CONTENTS
1

QUICK REFERENCE

3
2
PROGRAMMING
4
USER SETTINGS
1
QUICK REFERENCE
SYSTEM Button: Selects AUTO (Heat/Cool), COOL, OFF, HEAT
1
or EMER.
2
PROG Button: Program setup mode, selects setpoint time,
temperature and fan setting for each program.
HOLD Button: Enables extended hold, clears extended hold
3
or temporary override.
RETURN Button: Used to enter user settings and returns
4
thermostat to normal mode from program mode.
DAY/TIME Button: Selects hour, minute and day setting.
5
Selects program day in Program setting mode.
FAN Button: Selects AUTO, ON, CIRC (recirculate) and
6
PROG (program) modes.
RESET Button: Located on front of thermostat, will return
7
programming, clock, differential settings, filter check monitor,
adjustment limit from setpoint, keypad lock, temperature
hold, short cycle timer and recirculating fan to default
settings if previously programmed.
Button: Turns on backlight for 10 seconds.
8
Button: Increases setting (time, temperature, etc.). Scrolls between
9
option settings.
Button: Decreases setting (time, temperature, etc.). Scrolls between option settings.
10
ADDITIONAL OPERATION FEATURES
TROUBLESHOOTING
Inside of model 5300 shown
8
9
1
2
4
3
5
1
10
7
6

Advertisement

loading

  Also See for Braeburn Premier 5300

Braeburn Premier 5400 User Manual
Braeburn Premier 5400 User Manual 15 pages
/braeburn 5300 Installer's Manual
/braeburn 5300 Installer's Manual 10 pages

  Related Manuals for Braeburn Premier 5300

  Summary of Contents for Braeburn Premier 5300

  • Page 1: Quick Reference

    Button: Decreases setting (time, temperature, etc.). Scrolls between option settings. Braeburn Systems LLC, as an Energy Star partner has determined that this product meets the Energy Star Guidelines developed by the U.S. Environmental Protection Agency & the U.S. Department of Energy for maximum energy efficiency.

  • Page 2: User Settings

    PROGRAMMING PROGRAMMING USER SETTINGS USER SETTINGS cont. 2.1 Setting Current Time of Day and Day of Week 2.3 Setting Thermostat System Selection The system can be selected by pressing the System button. There are five possible systems to select from – NOTE: It is important for you to set the current time of day (note AM/PM indicator in display), and the current day of week AUTO, COOL, OFF, HEAT and EMER...
  • Page 3 PROGRAMMING PROGRAMMING USER SETTINGS USER SETTINGS cont. cont. 2.4.1 Setting the First and Second Stage Differentials 2.4.3 Setting the Extended Hold (Vacation) Mode (see also section 3.5) The default setting is Long (indefinite) Hold. If the HOLD feature is activated, the current setpoint will be held First Stage Differential until HOLD is released.
  • Page 4 PROGRAMMING PROGRAMMING USER SETTINGS USER SETTINGS cont. cont. 2.4.6 Setting the Recirculating Fan Cycle (see also section 3.9) 2.5 Setting Your Energy Saving Programs cont. 4 Event 13. Press the RETURN button, the display will show “XXX SET OC”, where “XXX” is the Recirculating Fan off cycle. 14.
  • Page 5 PROGRAMMING PROGRAMMING USER SETTINGS USER SETTINGS cont. cont. 2.5 Setting Your Energy Saving Programs cont. 2.5 Setting Your Energy Saving Programs cont. 4 Event • Make sure you select either HEAT or COOL by pressing the system button as appropriate. You should not enter a program in the OFF position.
  • Page 6 PROGRAMMING PROGRAMMING USER SETTINGS USER SETTINGS cont. cont. NOTE: 2.5.1 Entering Your Program–7 Day Mode If Auto Changeover is enabled in the installer options, the heating and cooling programs share time and The 7 Day mode has separate Whole Week or Individual Day programming to allow you to change the daily fan settings.
  • Page 7 PROGRAMMING PROGRAMMING USER SETTINGS USER SETTINGS cont. cont. 2.5.2 Entering Your Program – 5-2 Day Mode (Residential) Commercial 1. Press the PROG button to enter the Program setting mode. The 5-2 Day mode has separate Weekday and Weekend Program Groups that allow you to change the daily SYSTEM MOTUWETHFR SA SU Press the SYSTEM button to select HEAT to set heating times and...
  • Page 8 The 5390 Remote Indoor Sensor senses the air temperature at a remote location and sends the information to will be displayed in the place of the current room temperature, the 5300 thermostat. If installed at setup, the display temperature is either the temperature at the sensor or an and the indicator SET will be displayed.
  • Page 9 ADDITIONAL ADDITIONAL OPERATION FEATURES OPERATION FEATURES cont. cont. 3.6 Filter Check Monitor (see section 2.4.2 for setting) 3.4 Temporary Program Override SYSTEM Temporary Program Override is the temporary change of the program set temperature. This feature is not The Filter Check Monitor displays a reminder for required filter available when the thermostat is in the non-programmable mode.
  • Page 10 ADDITIONAL ADDITIONAL OPERATION FEATURES OPERATION FEATURES cont. cont. 3.8 Adaptive Recovery Mode (ARM™) 3.9 Recirculating Fan Feature (see section 2.4.6) In order to maximize comfort and energy efficiency, this thermostat is equipped with Adaptive Recovery Mode The Recirculating Fan Mode provides more even temperature SYSTEM (ARM™).

  • Page 11: Troubleshooting

    ADDITIONAL ADDITIONAL OPERATION FEATURES OPERATION FEATURES cont. cont. 3.12 Compressor Protection and AC Power Monitor 3.13 Low Battery Detection and Replacement This thermostat includes an automatic compressor protection feature to avoid potential damage to the cooling This thermostat requires two (2) properly installed “AA” Alkaline batteries to maintain the system clock and to system from short cycling.
  • Page 12 TROUBLESHOOTING TROUBLESHOOTING cont. cont. SYMPTOM POTENTIAL SOLUTION SYMPTOM POTENTIAL SOLUTION Thermostat does not Thermostat will not Check to see if OFF is shown in display. This indicates that the system is turned off at Check current time of day, day of week program settings. Make sure to verify AM/PM follow program turn on heating or indicator is accurately displaying desired time settings.
  • Page 13 TROUBLESHOOTING TROUBLESHOOTING cont. cont. SYMPTOM POTENTIAL SOLUTION SYMPTOM POTENTIAL SOLUTION See Review Set Temperature section of this manual to verify the current setpoint and The room is too Thermostat turns on Increase or decrease second (auxiliary) stage temperature differential setting as make any modifications that are necessary.
  • Page 14 Non-Programmable mode selected during Installer Setup. See section 4.2 of the Technical Assistance: www.braeburnonline.com program mode. Installer Guide. Call us toll-free: 866-268-5599 (U.S. Only) 630-844-1968 (Outside the U.S.) © 2006 Braeburn Systems LLC • Patents Pending • All Rights Reserved. Pub. No. 5300-110-002...
