Eaton ALL-PRO WPFLD-TRN Instruction Manual

WPFLD-TRN
ENGLISH

ITEMS REQUIRED

(Purchase separately)
• Phillips screwdriver
• Electrical wiring tools
• Wire nuts
• Water tight cord connector
• Bracket attachment hardware
• Appropriate tools

IMPORTANT SAFETY INSTRUCTIONS

When using product, basic precautions should always be followed, including the following:
• Heed all warnings, including below warnings AND those included on product.
• Save these instructions and warnings.
• cULus LISTED for use with LED WP Wall Pack series.
• Disassembling your fixture will void the warranty.
• Suitable for wet locations.

WARNING

• Read and follow these instructions.
• Risk of fire/electric shock. If not qualified, consult an electrician.
• Disconnect power at fuse or circuit breaker before installing or servicing.

CAUTION

• Connect fixture to a 120 volt, 60 Hz power source. Any other connection voids
the warranty.
• Fixture should be installed by persons with experience in household wiring or by a
qualified electrician. The electrical system, and the method of electrically connecting
the fixture to it, must be in accordance with the National Electrical Code and local
building codes.
• Suitable for mounting within 4 feet of the ground.
• Fixture is suitable for ground mounting.
SAVE THESE INSTRUCTIONS.
Questions?/Des questions?/ ¿Preguntas? 1-800-334-6871 ConsumerProducts@eaton.com

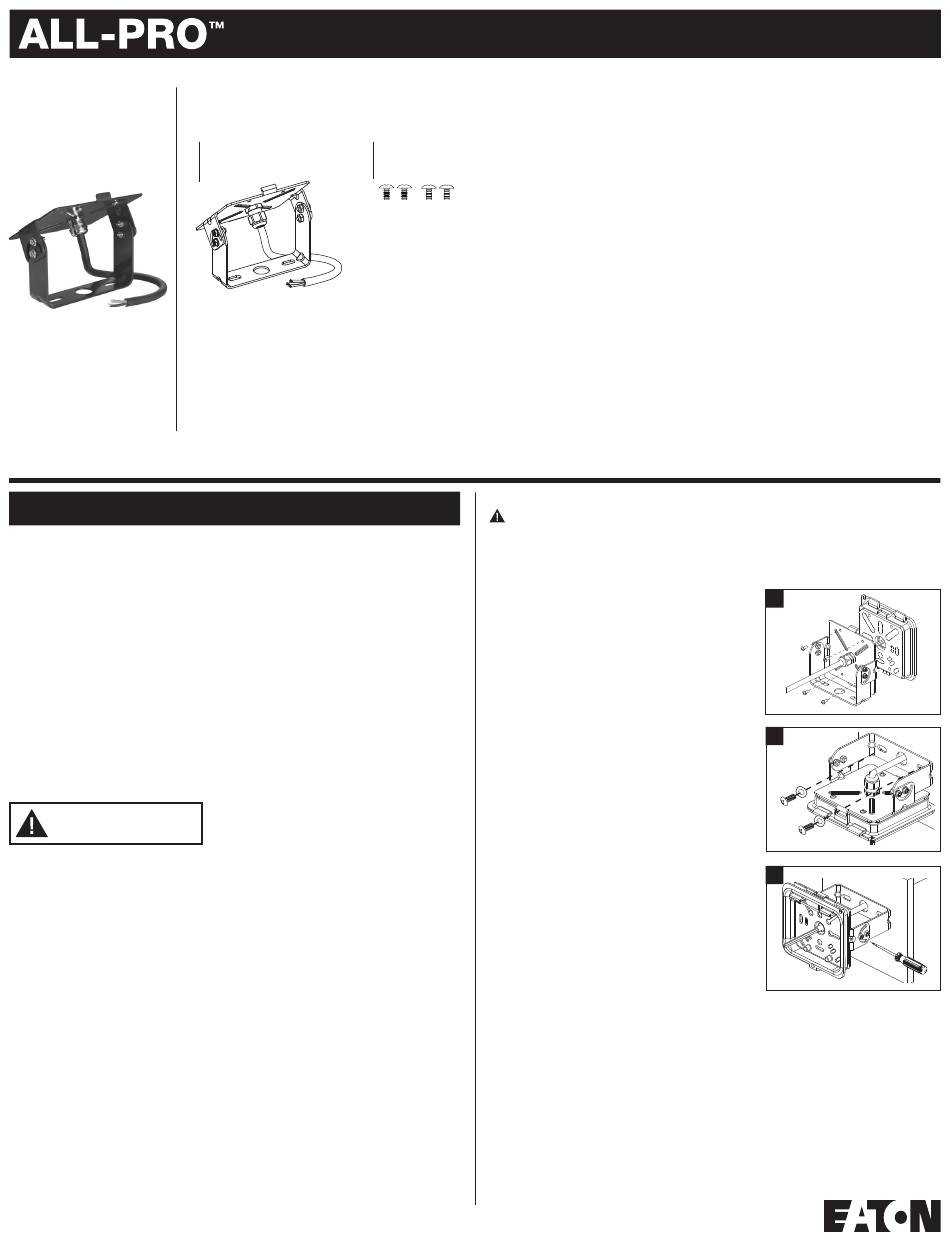

PACKAGING CONTENTS/ CONTENU DE L'EMBALLAGE/CONTENIDO DEL PAQUETE
A. Trunnion Bracket B. (4) Wall pack attachment screws
Trunnion Support
Trunnion Soporte
Instruction Manual/Manuel d'instructions/ Instrucciones
(4) Vis de retenue pour ensemble mural
(4) tornillos de sujeción del paquete para pared

MOUNTING AND WIRING YOUR FIXTURE

WARNING: Risk of electric shock. Disconnect
power at fuse or circuit breaker before installing
or servicing.
1. Remove the back cover from the Wall Pack fixture
(Purchase separately).
2. Route the trunnion cord through the center hole of
the back cover and attach the trunnion plate to the
back cover using the 4 screws (B) provided (Fig. 1).
Tighten screws until the gasket is fully compressed,
making sure that the top and bottom alignment tabs
on the trunnion plate align with the recessed areas of
the back cover.
3. Make electrical connections from the trunnion
cord to the supply wiring, making sure to follow
all National Electrical Code and all applicable local
codes and ordinances. Be sure to use an appropriate
weather-tight seal at the trunnion cord entry point
(not included.)
4. Mount the trunnion base bracket to the desired
installation surface using appropriate mechanical
hardware (recommended hardware: ¼'-20 lag bolts
or studs with lock washers, not included.) (Fig. 2).
5. Loosen pivot screws and lock screws on the trunnion
bracket and rotate the back cover into position for
wiring the Wall Pack to the installed trunnion bracket
and back cover assembly (Fig. 3). Follow all instruc-
tions found in the installation instruction sheet in the
LED Wall Pack fixture packaging.
6. Adjust the aiming angle of the fixture by loosening
the pivot screws and lock screws on the trunnion
bracket and rotating the assembly to the desired
angle. Retighten the pivot and lock screws to ensure
that the fixture is not loose.
1
1
2
3
