Instruction Leaflet IL14946I
Instructions for Type AMT Vari-Depth
Mechanism for Above Handle (Variable-Width)
Effective November 2012
Supersedes IL14946H 03/98
Contents
Description
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 3
®
Handle
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMT Vari-Depth and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton AMT Vari-Depth

Summary of Contents for Eaton AMT Vari-Depth

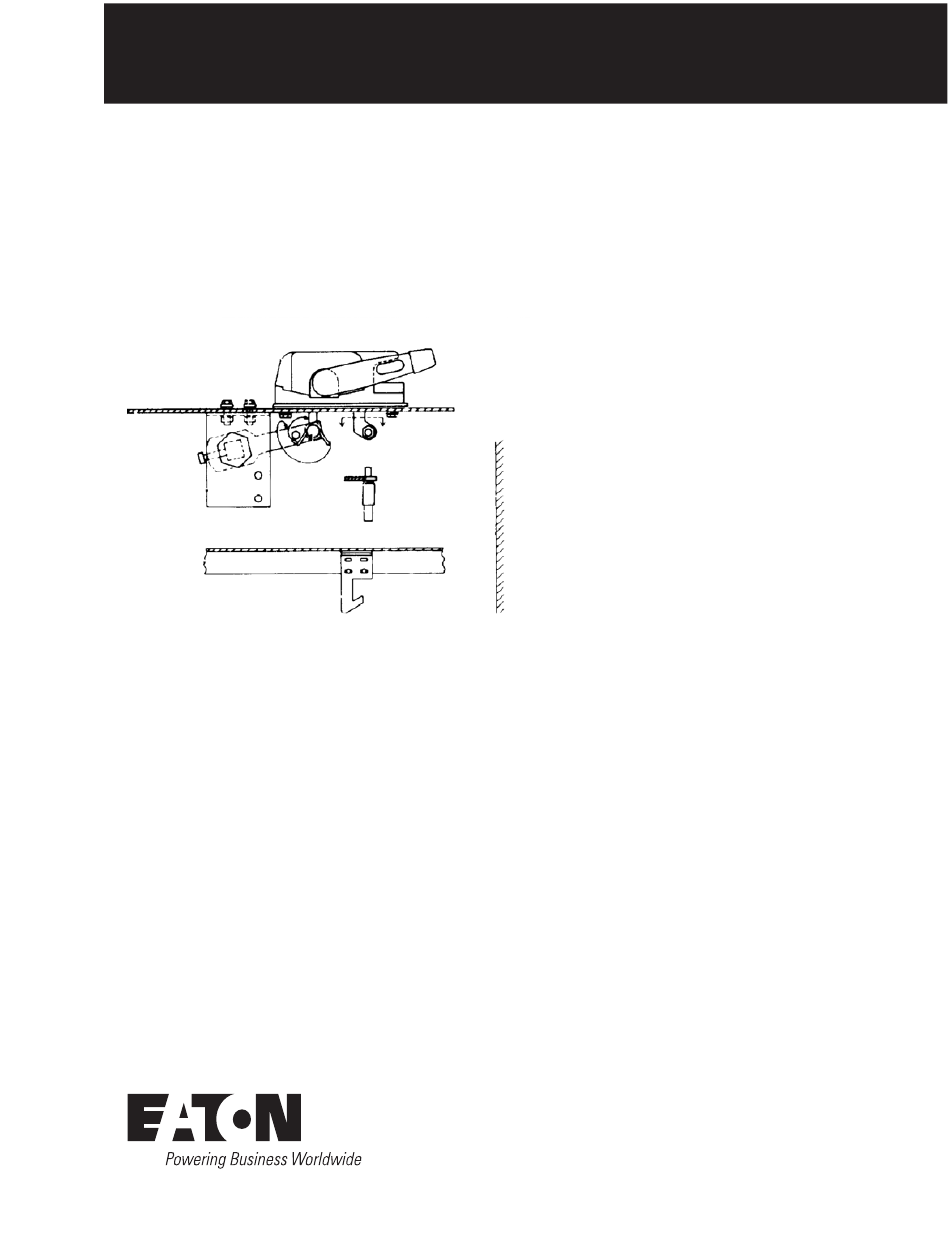

  • Page 1 Effective November 2012 Instruction Leaflet IL14946I Supersedes IL14946H 03/98 Instructions for Type AMT Vari-Depth ® Handle Mechanism for Above Handle (Variable-Width) Contents Description Page Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 3...
