Your AT7 comes with:
USB Stick with LANforge software
•
USB-C power adapter
•
USB TTL serial adapter
•
Ethernet cable
•
Assembly Steps:

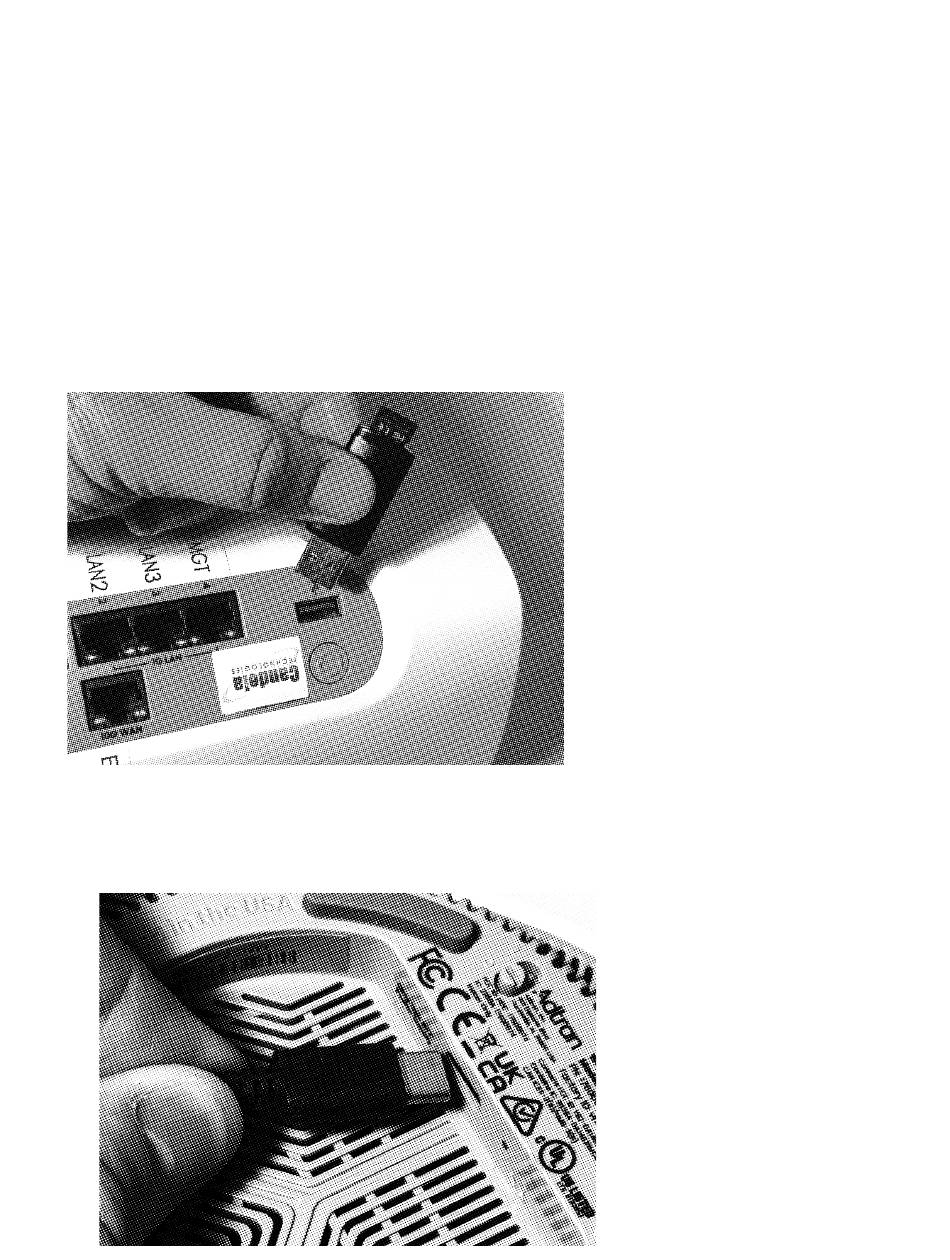

1. Plug the USB stick into the USB A socket of the cable panel.
2. Flip the unit upside down and plug the USB-C charging cable in. Do not connect to
wall power yet.
LF0355-AT7 Quick-start
Advertisement
Related Manuals for ADTRAN AT7
Summary of Contents for ADTRAN AT7
- Page 1 LF0355-AT7 Quick-start Your AT7 comes with: USB Stick with LANforge software • USB-C power adapter • USB TTL serial adapter • Ethernet cable • Assembly Steps: 1. Plug the USB stick into the USB A socket of the cable panel.
- Page 2 3. Connect the 3-pin jumper cable into the USB TTL port on the opposite side of the bottom recess from the power port. You will have to pry back a little rubber dust cover. Remember that UART TTY cables connect with TX → RX and RX → TX. The lower right socket on the UART header does not get a pin.
- Page 3 4. Connect the USB-A end of the TTL converter to your laptop. You can use Putty or minicom to connect to it later. 5. Connect the Ethernet cable to the management (MGT) port on the AT7 to either your management switch or your laptop.
-
Page 4: Connect Via Ssh
6. Plug the USB power brick to wall power. A green LED will turn on in the recessed base of the AT7. This confirms wall power, but not system on/off status. 7. Slide the gray power switch from 0 to 1 to turn the unit on. You will notice LEDs on the cable panel Ethernet ports shine when the unit is switched on. - Page 5 Connect via 11. If you want to view the VNC desktop, you have to enable the feature and reboot the system: lanforge 1. Login as 2. At the prompt, type: sudo ./start_vnc Enter sudo reboot Enter 3. When the system comes back, connect VNC to the DHCP address or 192.168.1.101 display :1 .
