ADTRAN Total Access 5000 Product Features

Product Features

I Critical, major and minor alarm
contact closures
Ethernet interface for SNMP,
I
TL1 and file transfer via FTP
and TFTP
I Hot swappable
I Extended temperature hard-
ened components (-40°C to
+65°C)
I Shelf configuration storage
(System Configuration
Archival) and restore via FTP
or TFTP
I System Inventory View
Control Module Report
I
Generation
I Auto Upgrade for maintaining
system software release
versions
Industry-leading 10 year
I
warranty
System Control Module

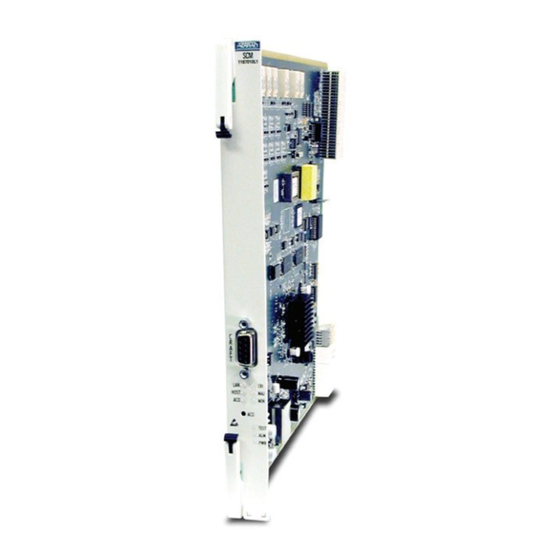

Total Access ® 5000 System Control Module
The ADTRAN ® Total Access 5000 System
Control Module (SCM) facilitates flexible,
economical management while supporting
both local and remote provisioning. The card
is hot-swappable and provides console access
and alarm contact closures.
The SCM provides SNMP, TL1 and Telnet
remote console functionality through both
inband and out of band TCP/IP interfaces.
The SCM provides local asynchronous
management interfaces via a front panel DB-9
console port (CRAFT) and two back panel
DB-9 console ports (ADMIN and NTWK
MGMT). The console port on the front panel
provides connectivity via the system menus,
while the admin and network management
ports offer access for menus, TL1 and
terminal server functionality.
Additionally, the SCM maintains a copy of the
provisioning for each module in the shelf. In
the event of a module exchange, the previous
provisioning information will be restored if
the new module is of the same type. The SCM
maintains a copy of the system configuration
archival (SCA) file, which can be uploaded to
an external file server and used for disaster
recovery.
