2. Presentation

The Eaton® ModularEasy is an essential part of your Parallel system. It allows the connection of 2 UPS
together, moreover, it possible to service or even replace the UPS without affecting the connected loads.
You can safely eliminate the effects of UPS maintenance and guard the integrity of your equipment.
Providing outstanding reliability, the Eaton ModularEasy unique benefits include:
• easy and fast connection to UPS due to Input/Output and signal "all in one" patented connector
(ModularEasy 5/6kVA range)
• "make before break" feature to allow full servicing (electrical power continuity) when switching from
UPS position to Bypass (and vice versa)
• communication feature with UPS: detection of ModularEasy connection and switch position
(Normal or Bypass)
• load connection by both terminal blocks and IEC outlets (16A C19).

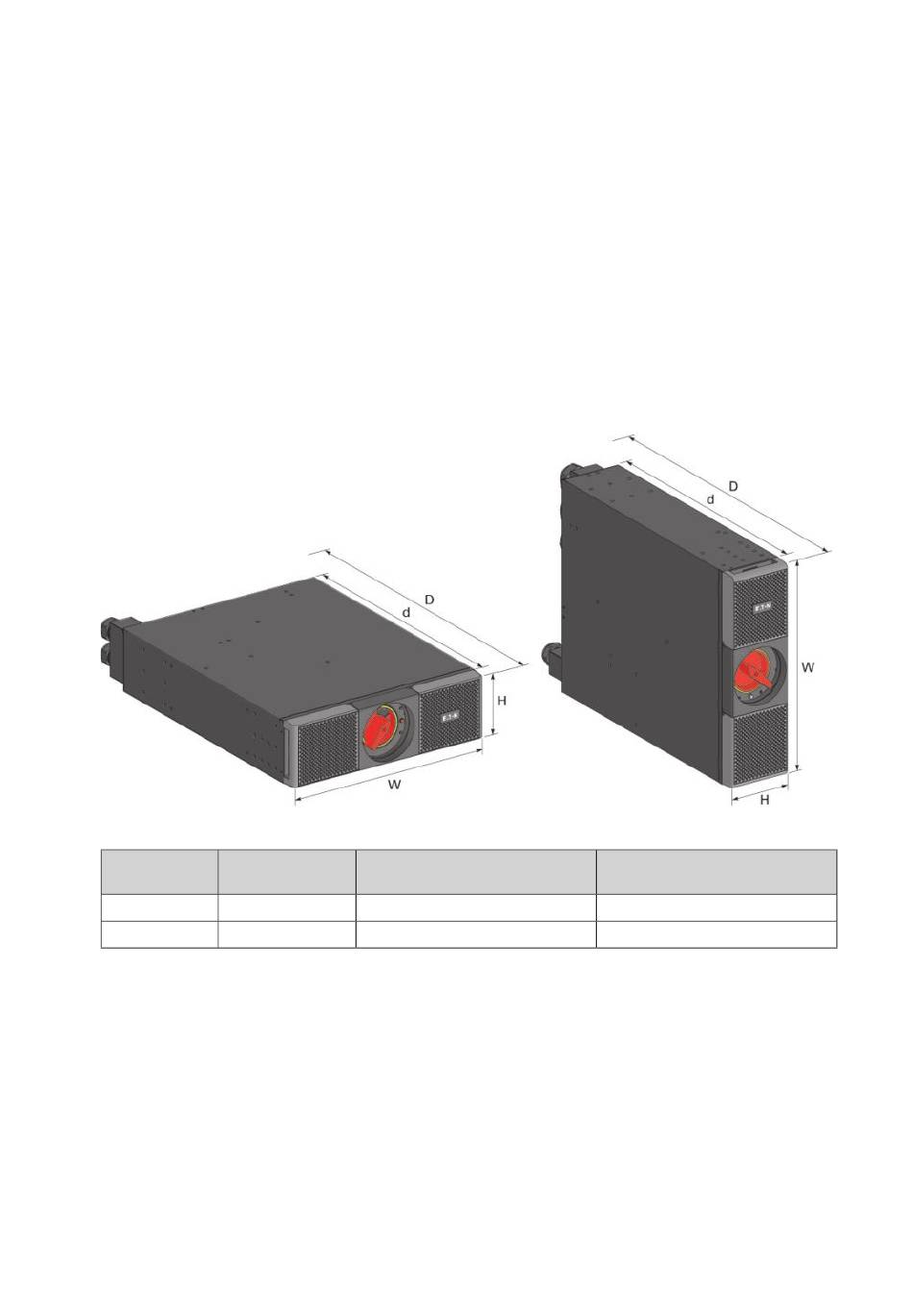

2.1 Standard installation

Rack installation

Description
9PXMEZ6Ki
9PXMEZ11Ki
Page 6
Weight Overall Dimensions (inch/mm)
(lb/kg) D x W x H
22.8 / 10.3 27 x 17 x 5 / 690 x 440 x 130
32.6 / 15 27 x 17 x 5 / 690 x 440 x 130

Tower installation

Rack Dimensions (inch/mm)
d x W x H
21.3 x 17 x 5 / 540 x 440 x 130
21.3 x 17 x 5 / 540 x 440 / 130
614-09354-01_EN
