Eaton 5PX 1500i RT2U, 5PX 2000i RT2U, 5PX 200i RT2U Manual

Introduction

The 5PX range has been designed with the utmost care.

We recommend that you take the time to read this manual to take full advantage of the many features of your UPS (Uninterruptible Power System).

Before installing 5PX, please read the booklet presenting the safety instructions. Then follow the indications in this manual.

To discover the entire range of EATON products and the options available for the 5PX range, we invite you to visit our web site at www.eaton.com or contact your EATON representative.

Presentation

Standard positions

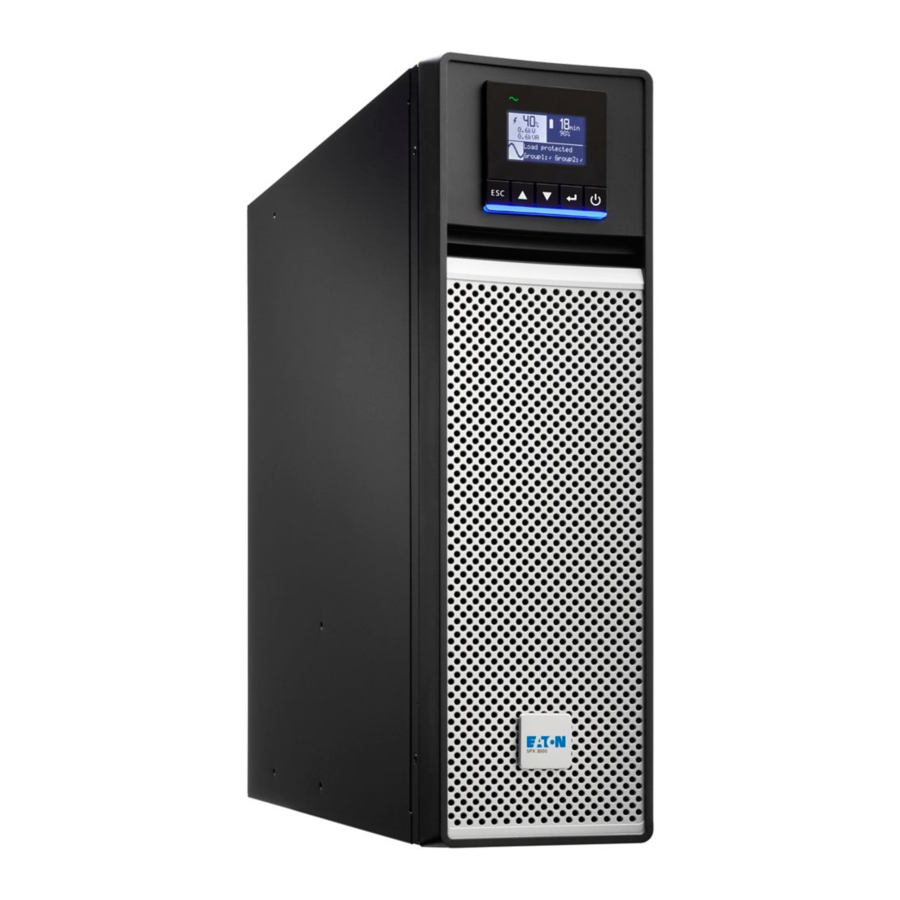

Tower position

Standard positions - Tower position

Rack position

Standard positions - Rack position

Description Weights (kg/lb) Dimensions (mm/inch) D x W x H
5PX 1500i RT2U 27.60 / 60.90 x 441.2 x 86.2 / 20.6 x 17.4 x 3.4
5PX 2000i RT2U 28.50 / 62.80
5PX 2200i RT2U 28.50 / 62.80
5PX 3000i RT2U 38.08 / 84.00 x 441.2 x 86.2 / 25.5 x 17.4 x 3.4
5PX 3000i RT3U 37.33 / 82.30 x 441.2 x 130.7 / 19.6 x 17.4 x 5.1
5PX EBM 48V RT2U 32.80 / 72.30 x 441.2 x 86.2 / 20.6 x 17.4 x 3.4
5PX EBM 72V RT2U 46.39 / 102.30 x 441.2 x 86.2 / 25.5 x 17.4 x 3.4
5PX EBM 72V RT3U 44.26 / 97.60 x 441.2 x 130.7 / 19.6 x 17.4 x 5.1

Rear Panels

Rear Panels - Part 1

  1. USB communication port
  2. RS232 communication port
  3. Connector for automatic recognition of optional battery modules
  4. Slot for optional communication card
  5. Connector for ROO (remote ON/OFF) or RPO (Remote Power Off) control
  6. Connector for optional battery modules
  7. 16 A outlet for connection of equipment (Primary group)
  8. Two groups of 2 programmable outlets for connection of equipment (Group 1 and 2)
  9. Groups of 4 outlets for connection of equipment (Primary group)
  10. Socket for connection to AC-power source

Rear Panels - Part 2

  1. Connectors for battery modules (to the UPS or to the other battery modules)
  2. Connectors for automatic recognition of battery modules

Control panel

The UPS has a five-button graphical LCD. It provides useful information about the UPS itself, load status, events, measurements and settings.
Control panel

The following table shows the indicator status and description:

Indicator Status Description

Green
On The UPS is operating normally

Yellow
On The UPS is on battery mode
Flashing The battery voltage is below the warning level

Red
On The UPS has an active alarm or fault. See troubleshooting for additional information.

LCD description

As default, or after 5 minutes of inactivity, the LCD displays the screen saver.

The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen.
LCD description

The following table describes the status information provided by the UPS

warning Note. If other indicator appears, see troubleshooting for additional information.

Operation status Possible cause Action
Standby mode
The UPS is OFF, waiting for start-up command from user Equipment is not powered until button is not pressed.
Normal mode
The UPS is operating normally. The UPS is powering and protecting the equipment.
In AVR mode

Load protected LED is ON No beep
The UPS is operating normally but the utility voltage is outside normal mode thresholds. The UPS is powering the equipment through a Automatic Voltage Regulation device. The equipment is still normally protected.
On Battery

Battery LED is on 1 beep every 10 seconds
A utility failure has occured and the UPS is in Battery mode. The UPS is powering the equipment with the battery power. Prepare your equipment for shutdown.
End of backup time

Battery LED is blinking 1 beep every 3 seconds
The UPS is in battery mode and the battery is running low. This warning is approximate, and the actual time to shutdown may vary siginificantly. Depending on the UPS Load and number of Extended Battery modules (EBMs), the "Battery Low" warning may occur before the battery reach 25% capacity.

Display functions

Press the Enter () button to activate the menu options. Use the two middle buttons ( and ) to scroll through the menu structure. Press the Enter () button to select an option. Press the button to cancel or return to the previous menu.

Menu map for Display Functions.

Main menu Submenu Display information or Menu function
Measurements Load W VA / Load A pf / Output V Hz / Input V Hz / Battery V min / Efficiency / Power usage
Control Load Segments Group 1: ON / OFF
Group 2: ON / OFF
These commands overrule user settings for load segments.
Start battery test Starts a manual battery test
Reset fault state Clears active fault
Restore factory settings Returns all settings to original values (UPS restart required)
Reset power usage Clears power usage measurements
Settings Local settings Sets product general parameters
Input / output settings Sets Input and output parameters
ON / OFF settings Sets ON / OFF conditions
Battery settings Sets battery configuration
Fault log Displays event log or alarms
Identification UPS Type / Part Number / Serial Number / Firmware release / Com card address

User settings

The following table displays the options that can be changed by the user.

Description Available settings Default settings
Local settings Language [English] [Français] [Deutsch] [Italiano] [Português] [Español] [Русский]
Menus, status, notices and alarms, UPS fault, Event Log data and settings are in all supported languages.
English
User selectable when UPS is powered for the first time.
LCD settings Authorises to modify LCD screen brightness and contrast to be adapted to room light conditions.
Audible alarm [Yes] [No]
Authorises to enable or disable the buzzer if an alarm occurs.
Yes
In/Out settings Output voltage

[200 V] [208 V] [220 V] [230 V]

[240 V]

230 V
User selectable when UPS is powered for the first time.
Input thresholds

[Normal mode] [Extended mode] Extended mode authorises lower input voltage (150 V) without transferring to battery.

This can be used if the load can withstand low voltage supply.

Normal mode
Sensitivity [High] [Low]
High: for sensitive equipment, UPS will easily transfer to battery when utility conditions are becoming bad.
Low: for equipment that can withstand bad utility conditions, in that case, the UPS will not transfer to battery.
High
Load segments - Auto start delay [No Delay] [1 s] [2 s]...[65354 s] The equipment are powered with the specified delay. Group 1: 3 s
Group 2: 6 s
In/Out settings Load segments - Auto shutdown delay [Disable] [0s] [1 s] [2 s]...[65354 s] During a power outage, authorises to keep some equipment running while turning off other equipment. This feature allows to save battery power. Group 1: Disable
Group 2: Disable
Overload prealarm [5%] [10%] [15%] [20%]... [100%] [105%]
Gives a warning when a predefined critical percentage of load is reached.
[105%]
ON/OFF settings Cold start [Disable] [Enable]
Authorises the product to start on battery power.
Enable
Forced reboot [Disable] [Enable]
If set to Enable, when a shutdown sequence is sent through communication port, it allows, if mains recovers during the sequence, to shutoff the output during 10 s.
Enable
Auto restart [Disable] [Enable]
Authorises the product to restart automatically when mains recovers after a complete battery discharge.
Enable
Energy saving [Disable] [Enable]
If Enable, UPS will shutdown after 5min of back-up time, if no load is detected on the output.
Disable
Sleep mode [Disable] [Enable]
If disable, LCD and communication will turn OFF immediately after UPS is OFF.
If enable, LCD and communication stays ON 1h30 min after UPS is OFF.
Disable
Remote command [Disable] [Enable]
If enable, shutdown or restart commands from software are authorised.
Enable
Battery settings Automatic battery test [No test] [Every day] [Every week] [Every month]
Available only if battery charge mode is set to constant charge.
Every week (in constant charge, otherwise following ABM battery test method)
Low battery warning [10%] [20%] [30%] [40%] [50%] [60%] [70%] [80%] [90%] The alarm triggers when the set percentage of battery capacity is reached during a back-up time. 20%
Restart battery level [10%] [20%] [30%] [40%] [50%] [60%] [70%] [80%] [90%] [100%] If set, automatic restart will occur only when percentage of battery charge is reached. 0%
Battery charge mode [ABM cycling] [Constant charge] ABM cycling
EBM number setting [0] [1] [2] [3] [4]
Using standard EBM, UPS detects automatically the amount of EBM connected.
EBM automatic detection, otherwise 0
Deep discharge protection [Yes] [No]
If set to Yes, the UPS automatically prevents battery from deep discharge by adapting end of back-up time voltage threshold.
Yes

Installation

Unpacking and contents check

Installation in tower position

  1. 5PX UPS
  2. connection cable to AC-power source (5PX 2200 and 3000 models only)
  3. 2 connection cables for the protected equipment
  4. RS232 communication cable
  5. USB communication cable
  6. 2 cable locking systems
  7. Software CD-ROM
  8. Manual CD-ROM
  9. Safety instructions
  10. Quick start
  11. Mounting kit for 19-inch enclosures

Elements supplied depending on the version or optional

  1. 2 supports for tower position (RT 2U version only)
  2. FlexPDU module (optional)
  3. connection cable between FlexPDU module and UPS
  4. NMC communication card (optional, standard on Netpack versions)
  5. HotSwap MBP module (optional)
  6. connection cables between HotSwap MBP module and UPS

information Packing materials must be disposed of in compliance with all local regulations concerning waste. Recycling symbols are printed on the packing materials to facilitate sorting.

Installation in tower position

Installation in tower position

warning Note. The two supports for the tower position are used on the RT 2U version only.

Installation in rack position

Follow steps 1 to 4 for module mounting on the rails.
Installation in rack position

information The rails and necessary hardware are supplied by EATON.

Communication ports

Connection of RS232 or USB communication port (optional)

The RS232 and USB communication ports cannot operate simultaneously.
Connection of RS232 or USB communication port

  1. Connect the RS232 (33) or USB (34) communication cable to the serial or USB port on the computer equipment.
  2. Connect the other end of the communication cable (33) or (34) to the USB (1) or RS232 (2) communication port on the UPS.

information The UPS can now communicate with EATON power management software.

Installation of the communication cards (optional, standard on the Netpack versions)

information It is not necessary to shutdown the UPS before installing a communication card.

  1. Remove the slot cover (4) secured by screws.
  2. Insert the communication card in the slot.
  3. Secure the card cover with the 2 screws.

Characteristics of the contact communication port (optional)

  • Pins 1, 3, 4, 5, 6, 10: not used
  • Pin 2: common (user)
  • Pin 7: low battery
  • Pin 8: operation on battery power
  • Pin 9: UPS ON, equipment supplied
    n.o.: normally open contact

When a signal is activated, the contact is closed between the common (pin 2) and the pin for the corresponding signal.

Contact characteristics (optocoupler)

  • Voltage: 48 V DC max
  • Current: 25 mA max
  • Power: 1.2 W

Connection with a FlexPDU (Power Distribution Unit) module (optional)

Connection with a FlexPDU module

  1. 5PX 2200i / 3000i: connect the UPS input socket (10) to the AC-power source using the cable (31) supplied.
    5PX 1500i / 2000i: use the power cable of the protected equipment.
  2. 5PX 2200i / 3000i: connect the input socket on the FlexPDU module (50) to the UPS outlet (7) using the cable (43) supplied. 5PX 1500i / 2000i: connect the input socket on the FlexPDU module (50) to one of the outlets (9).
    The cable and the connectors are marked in red.
  3. Connect the equipment to the outlets (47), (48) and (49) on the FlexPDU module. These outlets differ, depending on the version of the FlexPDU module.
  4. Fit the connection securing system that prevents the plugs from being pulled out accidentally.

Connection with a HotSwap MBP module (optional)

The HotSwap MBP module makes it possible to service or even replace the UPS without affecting the connected loads (HotSwap function).
Connection with a HotSwap MBP module

  1. Connect the input socket (58) on the HotSwap MBP module to the AC-power source using the cable (31) supplied.
  2. Connect the UPS input socket (10) to the "UPS Input" (57) on the HotSwap MBP module, using the cable (46) supplied. These cables and the connectors are marked blue.
  3. Connect the UPS outlet (7) to the "UPS Output" (56) on the HotSwap MBP module, using the cable (46) supplied.
    5PX 1500i: connect one of the UPS outlets (9) to the "UPS Output" (56) on the HotSwap MBP module.
    These cables and the connectors are marked in red.
  4. Connect the equipment to the out-lets (51) and (52) on the HotSwap MBP module. These outlets differ, depending on the version of the HotSwap MBP module.


Do not use UPS outlets (8) and (9) to supply equipment because use of switch (55) on the HotSwap MBP module would cut supply to the equipment.

HotSwap MBP module operation

The HotSwap MBP module has a rotary switch (55) with two positions:

Normal t he load is supplied by the UPS, LED (53) is on.
Bypass t he load is supplied directly by the AC-power source. LED (54) is on.

UPS start-up with the HotSwap MBP module

  1. Check that the UPS is correctly connected to the HotSwap MBP module.
  2. Set switch (55) to Normal position.
  3. Start the UPS by pressing the ON/OFF button on the UPS control panel. The load is supplied by the UPS.
    LED (53) "UPS ON - OK to switch" on the HotSwap MBP module goes ON.

HotSwap MBP module test

  1. Set switch (55) to Bypass position and check that the load is still supplied.
  2. Set switch (55) back to Normal position.

UPS connection without a FlexPDU or HotSwap MBP module

warning Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source and the true electrical consumption of the total load.
UPS connection without a FlexPDU/HotSwap MBP module

  1. 5PX 1500i / 2000i: connect the UPS input socket (10) to the AC-power source using the cable of the protected equipment. 5PX 2200i / 3000i: connect the supplied cable (31) (250 V - 16 A) to the socket (10), then to the AC-power source.
  2. Connect the loads to the UPS using the cables (32).
    It is preferable to connect the priority loads to the four outlets marked (9) and the non-priority loads to the four outlets marked (8) that can be programmed in pairs (1 and 2).
    For the 5PX 2200i / 3000i models, connect any high-power devices to the 16 A outlet (7).
    information To program shutdown of outlets (8) during operation on battery power and thus optimise the available backup time, please check the in/out settings.
  3. Fit the connection securing system (35) that prevents the plugs from being pulled out accidentally.

warning Note. The UPS charges the battery as soon as it is connected to the AC-power source, even if button is not pressed.

Once the UPS is connected to the AC-power source, eight hours of charging are required before the battery can supply the rated backup time.

Operation

Start-up and Normal operation

To start the UPS:

  1. Verify that the UPS power cord is plugged in.
  2. The UPS front panel display illuminates and shows EATON logo.
  3. Verify that the UPS status screen shows .
  4. Press the button on the UPS front panel for at least 2 seconds.
    The UPS front panel display changes status to "UPS starting...".
  5. Check the UPS front panel display for active alarms or notices. Resolve any active alarms before continuing. See "Troubleshooting".
    If the indicator is on, do not proceed until all alarms are clear. Check the UPS status from the front panel to view the active alarms. Correct the alarms and restart if necessary.
  6. Verify that the indicator illuminates solid, indicating that the UPS is operating normally and any loads are powered and protected. The UPS should be in Normal mode.

Starting the UPS on Battery

information Before using this feature, the UPS must have been powered by utility power with output enabled at least once.
Battery start can be disabled. See the "Cold start" setting in "ON/OFF Settings".

To start the UPS on battery:

  1. Press the button on the UPS front panel until the UPS front panel display illuminates and shows a status of "UPS starting...". The UPS cycles through Standby mode to Battery mode. The indicator illuminates solid. The UPS supplies power to your equipment.
  2. Check the UPS front panel display for active alarms or notices besides the "Battery mode" notice and notices that indicate missing utility power. Resolve any active alarms before continuing. See "Troubleshooting". Check the UPS status from the front panel to view the active alarms. Correct the alarms and restart if necessary.

UPS Shutdown

To shut down the UPS:

  1. Press the button on the front panel for three seconds.
    The UPS starts to beep and shows a status of "UPS shutting OFF...". The UPS then transfers to Standby mode, and the indicator turns off.

Operation on Battery Power

Transfer to battery power

  • The connected devices continue to be supplied by the UPS when AC input power is no longer available.
    The necessary energy is provided by the battery.
  • The and indicator illuminates solid.
  • The audio alarm beeps every ten seconds.

information The connected devices are supplied by the battery.

Low-battery warning

  • The and indicator illuminates solid.
  • The audio alarm beeps every three seconds.

information The remaining battery power is low. Shut down all applications on the connected equipment because automatic UPS shutdown is imminent.

End of battery backup time

  • LCD displays "End of backup time".
  • All the LEDs go OFF.
  • The audio alarms stops.

Return of AC Input Power

Following an outage, the UPS restarts automatically when AC input power returns (unless the restart function has been disabled) and the load is supplied again.

UPS remote control functions

5PX offers a choice between two remote control functions.

  • RPO: Remote Power Off allow a remote contact to be used to disconnect all the equipment connected to the UPS. Restarting the UPS requires manual intervention.
  • ROO: Remote ON/OFF allows remote action of button to shut down the UPS.

These functions are obtained by opening a contact connected between the appropriate pins of connector (5) on the rear panel of the UPS (see figures below).

Remote control connection and test

  1. Check that the UPS is OFF and disconnected from the AC input source.
  2. Remove connector (5) after unscrewing the screws.
  3. Connect a normally closed volt-free contact (60 V DC / 30 V AC max., 20 mA max., 0.75 mm2 cable cross-section) between the two pins of connector (5) (see diagram).

Contact open: UPS shutdown
Contact closed: UPS start-up (UPS connected to AC power and AC power is available)

warning Note. The local ON/OFF control using button overrides the remote-control function.

Contact open: UPS shutdown, LED goes ON.
To return to normal operation, deactivate the remote external contact and restart the UPS by pressing button .

  1. Plug connector (5) into the back of the UPS.
  2. Connect and restart the UPS following the previously described procedures.
  3. Activate the external remote shutdown contact to test the function.


This connector must only be connected to SELV (Safety Extra-Low Voltage) circuits.

Troubleshooting

Operation status Possible cause Action
Batteries disconnected
The UPS does not recognise the internal batteries If the condition persists, contact your service representative
The batteries are disconnected Verify that all batteries are properly connected. If the condition persists, contact your service representative.
Overload
Power requirements exceeds the UPS capacity (greater than 105% of nominal) Remove some of the equipment from the UPS. The UPS continues to operate, but may shutdown if the load increases. The alarm resets when the condition becomes inactive.
End of battery life
The end of the battery life is reached. Contact your service representative for battery replacement.
Event
An UPS event occurs
Example:
Remote Power OFF, the RPO contact has been activated to shutdown the UPS and now prevents restart.
Set the contact back to its normal position and press button to restart.
UPS fault
An internal failure occured with the UPS

The UPS does not protect the equipment anymore.

warning Note. the alarm message and the UPS Serial Number, then contact your service representative.

Troubleshooting a UPS equipped with the HotSwap MBP module

Indication Diagnostic Correction
1 The load is no longer supplied when the rotary switch (55) on the HotSwap MBP module is set to Bypass position.
  • The protected devices are connected to the UPS output instead of to the HotSwap MBP module.
  • The AC-power cord is connected to the UPS input instead of to the HotSwap MBP module.
Check the wiring between the UPS and the HotSwap MBP module (see "Connection with a HotSwap MBP module" section).
2 The load is no longer supplied when the rotary switch (55) on the HotSwap MBP module is set to Normal position.
  • The UPS is shut down.
  • The wiring between the UPS and the HotSwap MBP module is incorrect.
  • Start the UPS.
  • Check the wiring between the UPS and the HotSwap MBP module (see "Connection with a HotSwap MBP module" section).
3 The load is no longer supplied after AC-power fails.
  • The rotary switch (55) on the HotSwap MBP module is set to Bypass position.
  • The wiring between the UPS and the HotSwap MBP module is incorrect.
  • Set the rotary switch (55) on the HotSwap MBP module to Normal position.
  • Check the wiring between the UPS and the HotSwap MBP module (see "Connection with a HotSwap MBP module" section).

Maintenance

Battery-module replacement

Safety recommendations

The battery can cause electrocution and high short-circuit currents. The following safety precautions are required before servicing the battery components:

  • remove watches, rings, bracelets and all other metal objects from the hands and arms,
  • use tools with an insulated handle.

Battery-tray removal

  1. Remove the middle part.
  2. Remove the left-hand side of the front panel by pushing the button and then by sliding the part.
    Battery-module replacement - Tray removal - Step 1
  3. Disconnect the battery block by separating the two connectors (never pull on the wires).
    Battery-module replacement - Tray removal - Step 2
  4. Remove the metal protection cover in front of the battery (two screws).
    Battery-module replacement - Tray removal - Step 3
  5. Pull the plastic tab to remove the battery block and replace it.
    Battery-module replacement - Tray removal - Step 4

Mounting the new battery module

warning Carry out the above instructions in reverse order.

  • To ensure safety and high performance, use only batteries supplied by EATON.
  • Take care to firmly press together the two parts of the connector during remounting.

Maintenance on a UPS equipped with the HotSwap MBP module

Maintenance on a UPS equipped (HotSwap MBP module)

The HotSwap MBP module makes it possible to service or even replace the UPS without affecting the connected loads (HotSwap function).

Maintenance

  1. Set switch (55) to Bypass position. The red LED on the HotSwap MBP module goes ON, indicating that the load is supplied directly with AC input source power.
  2. S top the UPS by pressing the button on the UPS control panel. LED (53) "UPS ON - OK to switch" goes OFF, the UPS can now be disconnected and replaced.

Return to normal operation

  1. Check that the UPS is correctly connected to the HotSwap MBP module.
  2. Start the UPS by pressing the button on the UPS control panel. LED (53) "UPS ON - OK to switch" on the HotSwap MBP module goes ON (otherwise, there is a connection error between the HotSwap MBP module and the UPS).
  3. Set switch (55) to Normal position.
    The red LED on the HotSwap MBP module goes OFF.

Technical specifications

Technical specifications

(1) The high and low thresholds can be adjusted using UPS settings (up to 150-294 V).
(2) Up to 40 Hz in low -sensitivity mode (programmable using UPS settings).
(3) Adjustable to 200/208/220/230/240 V (23% derating at 200 V, and 10% derating at 208 V on 2.2 kVA, 17% derating at 200 V on 3 kVA)
(4) 5PX EBM 48V RT2U: 2 strings, each 4 x 12 V / 9 Ah.
(5) 5PX EBM 72V RT2U and 5PX EBM 72V RT3U: 2 strings, each 6 x 12 V / 9 Ah.

When the appliance is used in EU area, use an external circuit breaker in front of line with rating 16 A, 250 V which is IEC/EN 60898-1 standard compliant;

When the appliance is used in America area, use an external circuit breaker in front of line with rating 20 A, 250 V.

This product is designed for IT power distribution system.

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important information:

shock hazard RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.

warning Important instructions that must always be followed.

information Information, advice, help.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Eaton 5PX 1500i RT2U, 5PX 2000i RT2U, 5PX 200i RT2U Manual

Advertisement

Need help?

Need help?

Do you have a question about the 5PX 1500i RT2U and is the answer not in the manual?

Questions and answers

Table of Contents
