Tennant 7300 Instruction Bulletin

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 387043

SYNOPSIS / PROBLEM:

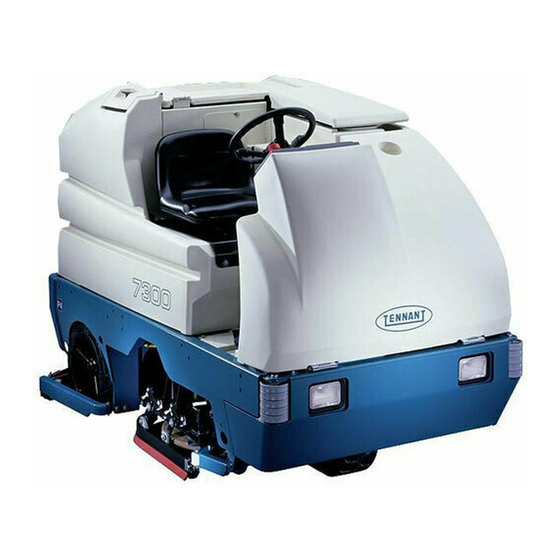

This kit contains the parts needed to install a rollout battery kit on the model 7300 scrubber
and 8300 sweeper/scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: LIFT OR CHAIN HOIST
(Estimated time to complete: 1 hour)

PREPARATION:

(Refer to FIG. 1)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
1. Open the top battery compartment cover, and secure in position with the cover support rod.
2. Open the rear battery compartment door.
3. Disconnect battery pack from the machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.

INSTALLATION:

(Refer to FIG. 1)
1. Remove battery pack from battery compartment with chain hoist or lift.
NOTE: When servicing machine, use hoist or lift that will support the weight of the
battery pack.
2. Mount the safety cable (1) to the solution tank, on the inside of the battery compartment,
with an existing bolt. Discard the old washer from the bolt, before mounting the safety
cable (1).
(Refer to FIG. 1)
3. Lay the two rollout battery track assemblies in mounting position on the floor of the battery
compartment.
(Refer to FIG. 1)
NOTE: The rollout battery track assemblies (B.O.M. parts 2 thru 6) are pre- -assembled.
IB 340378 (12-00)
No. 340378
Machine: 7300/8300
Published: 12-00/01
System: OPTIONS
1
