quiko MOOVY QK-M800BFX Use And Maintenance Manual

Automations for sliding gates (230/110/24v)

Advertisement

V11/2023
MOOVY
AUTOMATIONS FOR SLIDING GATES (230/110/24V)
E
N
G
L
I
S
H
I
T
A
L
I
A
N
O

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOOVY QK-M800BFX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for quiko MOOVY QK-M800BFX

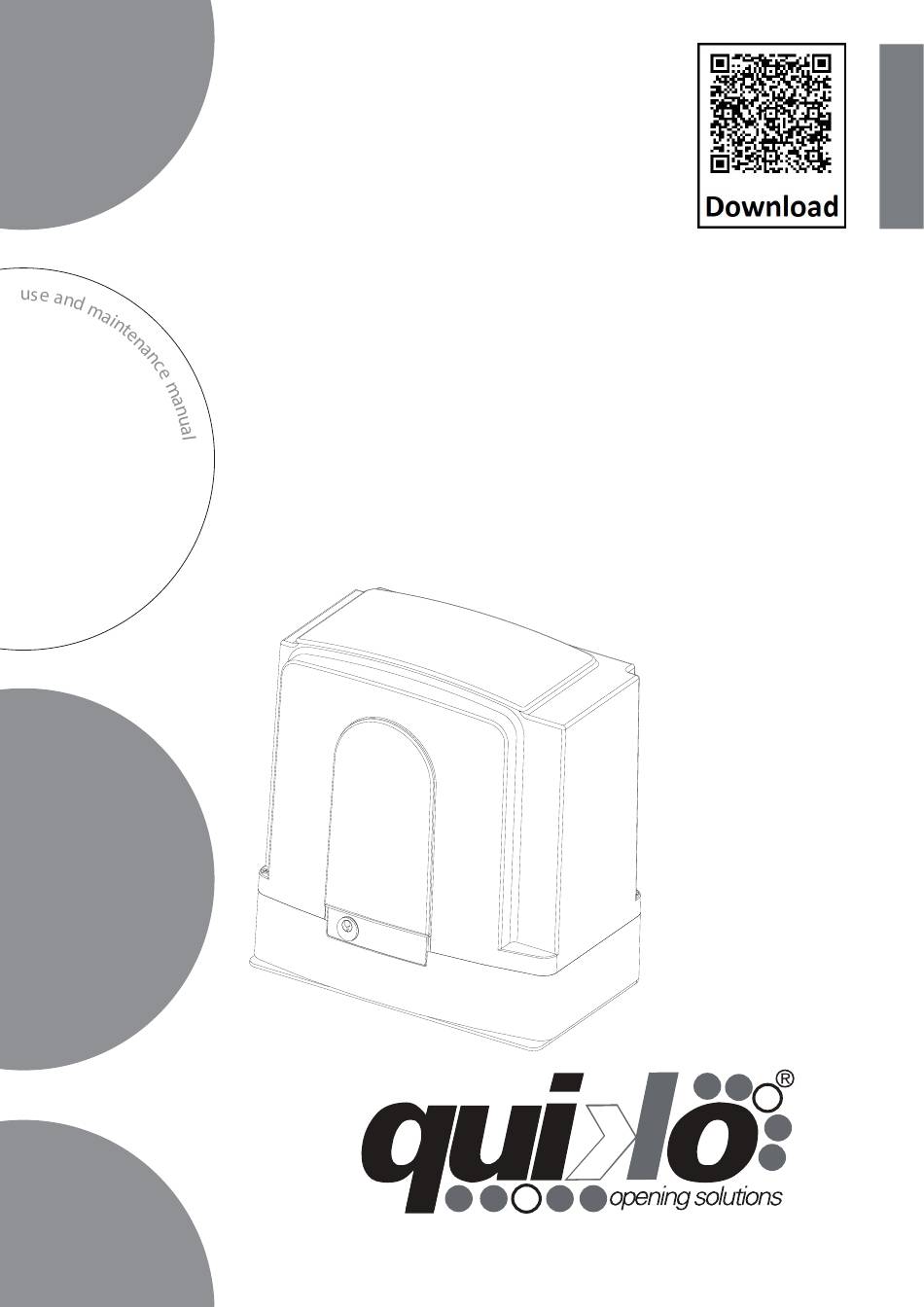

  • Page 1 MOOVY AUTOMATIONS FOR SLIDING GATES (230/110/24V) V11/2023...
  • Page 2: Important Notice

    230V models require our QK-CE220RL4 sliding gate control board, 24V models require our QK-CE24V control board. Quiko motors must be controlled by their relative Quiko control board in order to guarantee correct and safe working operations.
  • Page 3 Quiko Italy Srl gate becomes a machine and is therefore subject to the rules of the “ Machinery Directive”. It is on the installer to verify its security. WARNING: Quiko Italy Srl is not liable for any damages to people, animals or...
  • Page 4: Materials For Installation

    3 - MATERIALS FOR INSTALLATION FIG. 1 1. Gearmotor 2. Counterplate 3. Limit switches brackets (cammes) 4. M4 rack (NOT INCLUDED) 5. M10 Anchor bolts (NOT INCLUDED) 3- POSITIONING THE COUNTERPLATE Dig a concrete foundation base following measurements shown on fig. 2, 3. Position the counterplate making sure it is perfectly levelled and smooth and complying with the measurements shown on fig.
  • Page 5 FIG. 3...
  • Page 6 FIG. 4 6- POSITIONING THE LIMIT SWITCHES BRACKETS (CAMMES) FIG. 5 Manually position the gate completely open and fasten the limit switch brackets (1) (2) onto the rack so that the limit switch lever exceeds the length of the brackets by approximately two/thirds. Repeat the operation with gate completely closed.
  • Page 7 7- UNLOCKING THE MOTOR MANUALLY FIG.6 RELEASE INSTRUCTION In case of fault or power failure, insert the key in the lever lock and turn it of 90°CW. Pull and turn the lever approx. 90°until it stops and the gate move manually. WARNING: - perform locking and lock release operations with motor cut off.
  • Page 8 WARNING: Important safety instructions. It is important for the safety of persons to follow these instructions. Save these instructions. WARNING: The drive shall be disconnected from its power source during cleaning, maintenance and when replacing parts Install a gate’s safety system that complies with current regulations. Choose short routes for cables and keep power cables separate from control ones.
  • Page 9: Maintenance

    MAINTENANCE The MOOVY SERIES geared motors are manufactured for long-term use. Nonetheless, their normal operation can be compromised by the conditions of the gate; therefore, we will list some operations to keep the gate efficient. Warning: Non-specialized staff cannot operate the gate during maintenance. You are advised to cut the network power in order to avoid accidents or shocks.
  • Page 10: Eu Declaration Of Conformity

    EU Declaration of Conformity and Declaration of Incorporation of "quasi-machines" (pursuant to the Machinery Directive 2006/42/CE, Att.II, B) Company name: QUIKO ITALY SRL Postal address: Via Seccalegno, 19 Postcode and City: 36040, Sossano (VI) - Italy Telephone number: +39 0444 785513 E-Mail address: info@quikoitaly.com...
  • Page 11 EU Declaration of Conformity for the Installer Company name: Postal address: Postcode and City: Telephone number: E-Mail address: declare that the DoC is issued under our sole responsibility and belongs to the following product: Apparatus model/Product: Type: Installation location The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: Directive 2006/42/CE (MD Directive) Directive 2014/53/EU (RED Directive) Directive 2011/65/EU (RoHS)
  • Page 12 QUIKO ITALY SRL Via Seccalegno, 19 36040 Sossano (VI) - Italy Tel. +39 0444 785513 Fax +39 0444 782371 info@quikoitaly.com www.quikoitaly.com...

This manual is also suitable for:

Moovy qk-m800Moovy qk-m1200Moovy qk-m2000
