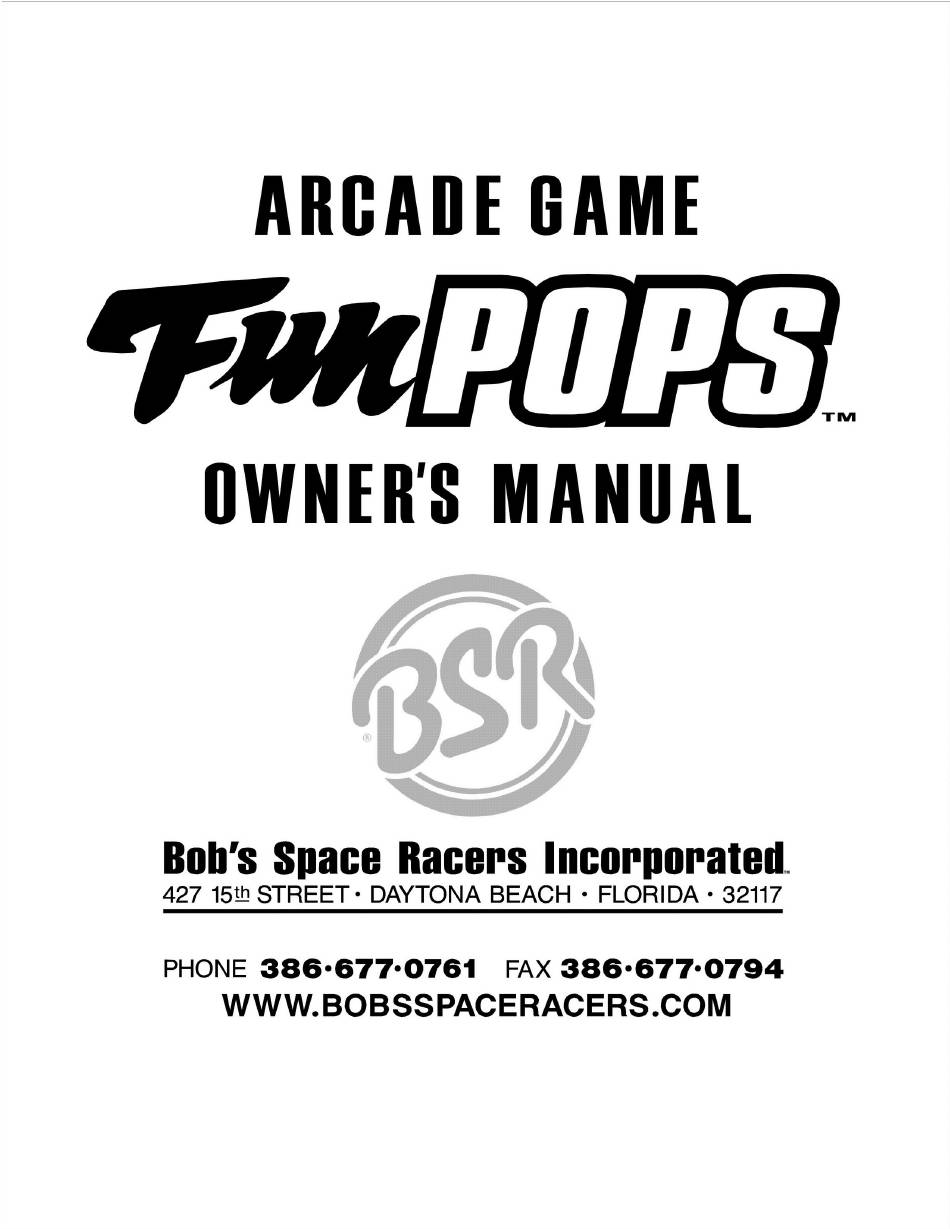

Bob's Space Racers FUN POPS Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUN POPS and is the answer not in the manual?

Questions and answers

Related Manuals for Bob's Space Racers FUN POPS

Summary of Contents for Bob's Space Racers FUN POPS

  • Page 2 Federal Communications Commission (FCC) Statement Note: This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 *SERVICE POLICY* ® At BOB’S SPACE RACERS , INC., our strength lies in the high quality, long lasting equipment we manufacture. Should the need arise; we maintain both Technical Support and Customer Service staff. Technical Support is available whenever you should need it. The direct technical ‘hot line’...
  • Page 4 ® BOB’S SPACE RACERS , INC.’S ONE-YEAR NEW EQUIPMENT WARRANTY ® 1. INCLUDED IN THIS WARRANTY Bob’s Space Racers , Inc. warrants to the original purchaser only that the equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for a one-year period from the original date of delivery.
  • Page 5 ® BOB’S SPACE RACERS , INC.’S ONE-YEAR NEW EQUIPMENT WARRANTY (CONTINUED) 4. REMEDIES LIMITED. UNDER NO CIRCUMSTANCES, EXCEPT TO THE EXTENT ® PROHIBITED BY APPLICABLE LAW, SHALL BOB’S SPACE RACERS , INC. BE LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL ARISING OUT OF THE USE OR INABILITY TO USE THIS EQUIPMENT INCLUDING BUT NOT LIMITED TO ANY CLAIM FOR LOSS OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF USE OF THE EQUIPMENT, OR ANY...
  • Page 6 ADVANCED REPLACEMENT POLICY ® After speaking with our Technical Department it may be necessary for Bob’s Space Racers , Inc. to ship an assembly item or part to repair your game. We will ship the item(s) according to your preference via United Parcel Service, Federal Express, US Postal Service, etceteras. Note: we will not ship anything to P.O.
  • Page 8 ® Bob's Space Racers Fun Pops Arcade Game CONGRATULATIONS! ® ® Congratulations on your purchase of a Bob’s Space Racers Game! Bob’s Space Racers continues to lead the amusement industry in the manufacturing and the operation of amusement games and has operated these games at several of North America’s largest expositions for the last 30 plus years.

  • Page 9: Manual Introduction

    Each section has troubleshooting guides that contain enough information so that the game can be repaired with little difficulty. If this information is not sufficient, a call to Bob's Space Racers will provide additional assistance. Between the manual and the personal assistance, downtime of your game will be minimal.

  • Page 10: Table Of Contents

    Setting the Option Registers........... . . 4 Fun Pops’ Option Register Settings; a Note on Bonus Coins ......5 MAINTENANCE Game Maintenance;...

  • Page 11: Coin Mechanism

    APPENDIX COIN MECHANISM Overview – A Mechanical – A Electrical – A TICKET DISPENSER Electronic Operation – B Mechanical Operation – B Troubleshooting – C/D REDEMPTION Introduction – E What is Redemption? – E What is a Percentage? – E Fixed Payout –...

  • Page 13: Installation

    As these disks go up, down and around, the photo sensors are triggered to increase your score. Depending on how your options are set, tickets will be dispensed at the end of the game. Fun Pops is a very low maintenance game with a minimal amount of mechanical or repairable parts.
  • Page 14 ® Bob's Space Racers Fun Pops Arcade Game FUN POPS COMPLETE ASSEMBLY – SIDE, and FRONT VIEWS, PLUS PLAYFIELD of GAME...

  • Page 15: Fun Pops Tm Graphic

    ® Bob's Space Racers Fun Pops Arcade Game FUN POPS GRAPHIC...
  • Page 16 ® Bob's Space Racers Fun Pops Arcade Game PICTURE OF HEADS LOOKING DOWN Board Layout for Game...

  • Page 18: Setting The Option Registers

    ® Bob's Space Racers Fun Pops Arcade Game SETTING THE OPTION REGISTERS FRONT PANEL BOARDS In order to set the Option Registers, first locate the Front Panel Board and Credit Display. The Front Panel Board (also called the Register Select Board) is located inside the game, behind the Coin Door, and on top of the Coin Box.
  • Page 19 ® Bob's Space Racers Fun Pops Arcade Game FUN POPS OPTION REGISTER SETTINGS 2400 G BOARD; FPOP 2402 V-1.2 Reg# Reg Name Actual Description RESERVED ______ Not Used COIN/GAME ______ Coins per Game 0 = 1 COIN & NO CREDITS...

  • Page 21: Maintenance Information

    If a cleaner is used on a material that it is not listed with it will ® cause damage to that material and Bob's Space Racers will not be held responsible for repair and/or replacement of that damaged material.

  • Page 23: 2400 Series Electronics

    2400 SERIES ELECTRONICS...

  • Page 24: 2400 Series Electronics Microprocessor Board Overview

    ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES ELECTRONICS MICROPROCESSOR BOARD OVERVIEW The basic operation of the processor board is as follows. The inputs on this board are on J9. The J9 connector inputs are ground-seeking. The row of pins closest to the edge of the board is at ground and the row in towards the board is the actual input pins.
  • Page 25 ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES BOARD GRAPHIC...
  • Page 26 ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES BOARD J11 PINOUT...
  • Page 27 ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES BOARD J12 PINOUT...
  • Page 28 ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES BOARD J9 PINOUT...

  • Page 29: 2400 Series Electronics Microprocessor Board J12

    ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES ELECTRONICS MICROPROCESSOR BOARD DIAGRAM...

  • Page 30: 2400 Series Electronics Microprocessor Board Pin-Out

    ® Bob's Space Racers Fun Pops Arcade Game 2400 SERIES ELECTRONICS MICROPROCESSOR BOARD PIN-OUT Register Select Board 3-Segment Display (Front Panel Board) SPI Score Board Relay Board Network Connectors (Multi-Unit Game Only) Rev. G A-D Connector Dip Switch Package 14-Pin...
  • Page 31 ® Bob's Space Racers Fun Pops Arcade Game FRONT PANEL BOARD OVERVIEW The basic operation of the Front Panel Board is as follows. The Front Panel Board is used as a distribution point for the Credit Display Board and gives the customer the ability to change the Option Registers via the four (4) pushbutton switches.

  • Page 32: Front Panel Board Schematic

    ® Bob's Space Racers Fun Pops Arcade Game FRONT PANEL BOARD SCHEMATIC...
  • Page 33 ® Bob's Space Racers Fun Pops Arcade Game CREDIT DISPLAY BOARD OVERVIEW The basic operation of the Credit Display Board is as follows. The Credit Display Board is used to show the Player how many coins or tokens are required for a play and how many credits are remaining.

  • Page 34: Relay Boards - Overview And Diagram

    ® Bob's Space Racers Fun Pops Arcade Game RELAY BOARD OVERVIEW AND DIAGRAM There are three (3) styles of relay boards, and the style of relay board used depends on the application. The coil voltage comes in on a 10-pin ribbon cable connection to turn the relay(s) ON or OFF.
  • Page 35 ® Bob's Space Racers Fun Pops Arcade Game FUN POPS 2400 SERIES ELECTRONICS COMPONENT LAYOUT...

  • Page 36: Troubleshooting

    ® Bob's Space Racers Fun Pops Arcade Game TROUBLESHOOTING – 2400 SERIES ELECTRONICS PROBLEMS/CAUSES SUGGESTED FIX PROBLEMS WITH THE SCORE DISPLAY Score Display Loose Wire Connections Check all Ribbon Cable connections from the Display to the 2400 Control Board, Labeled Score Board; also, Ribbon Cables from one Display to the other.
  • Page 37 ® Bob's Space Racers Fun Pops Arcade Game TROUBLESHOOTING – 2400 SERIES ELECTRONICS (CONTINUED) PROBLEMS/CAUSES SUGGESTED FIX Credit Display Board Won't Accept Changes From the Front Panel Board Bad Connection Check Ribbon Cables from Credit Display Board back to the Main Board.
  • Page 38 ® Bob's Space Racers Fun Pops Arcade Game TROUBLESHOOTING – 2400 SERIES ELECTRONICS (CONTINUED) PROBLEMS/CAUSES SUGGESTED FIX No Power To The 2400 Board No Connection Check wiring from 2400 Board to the 12V power supply. Bad Power Supply Check to the 12V output from the 12V power supply make sure game power is on.

  • Page 40: Game Parts List

    ® Bob's Space Racers Fun Pops Arcade Game GAME PARTS LIST PART # DESCRIPTION E0025100 Meter 12VDC EX000325 EMI Filter EX033658 2400 Board Assembly EX033435 Relay Board BSR1110 EX033492 Display Assembly 4" LED E0027395 Speaker 2.75" EX004033 Coin Box Assembly...
  • Page 43 ® Bob's Space Racers Fun Pops Arcade Game COIN MECHANISMS OVERVIEW In all of our arcade games we use the Coin Mechanisms, Inc. brand of coin mechanism, unless the customer requests a different brand. Mechanical When a player inserts a coin or token, it travels through a chute to the coin mechanism. The coin travels down onto a weighted lever that slows the coin and flips it over in front of a magnet.

  • Page 45: Electronic Operation

    ® Bob's Space Racers Fun Pops Arcade Game TICKET DISPENSER ELECTRONIC OPERATION When the control unit calls for a ticket to be issued, 12V DC is applied to the ticket enable wire causing the motor to turn on. When a ticket is dispensed, the sensor senses a notch in a ticket and sends back a signal to the control unit.
  • Page 46 ® Bob's Space Racers Fun Pops Arcade Game TROUBLESHOOTING – TICKET DISPENSER PROBLEMS/CAUSES SUGGESTED FIX Dispenses Tickets Continuously (Not the same as Too Many Tickets) Bad driver IC Replace the IC that has the ticket enable line – see the output definitions for your controller board.
  • Page 47 ® Bob's Space Racers Fun Pops Arcade Game TROUBLESHOOTING – TICKET DISPENSER (CONTINUED) PROBLEMS/CAUSES SUGGESTED FIX Dispenses No Tickets (continued) Bad ticket dispenser When tickets are to be dispensed, check between the white (enable) wire and the black wire; should be 12V DC. If voltage is okay, ticket dispenser may be bad.
  • Page 49 ® Bob's Space Racers Fun Pops Arcade Game REDEMPTION INTRODUCTION This explanation of redemption procedures is not meant to be an all inclusive document or a ‘cast-in-stone’ rule book. It is designed to outline basic concepts of what redemption is, how it works, and why it is both popular and profitable.
  • Page 50 ® Bob's Space Racers Fun Pops Arcade Game REDEMPTION (CONTINUED) WHY DOES REDEMPTION WORK? (CONTINUED) For example: If a younger child has a small prize (i.e. a novelty pencil eraser) they would like to win, the parents will probably allow him/her to continue to play the game until they have won enough tickets to exchange for that prize.
