Problem:
1. The Marquee Spinner does not line up properly or "slips" during gameplay.
2. The Marquee Spinner makes contact with the front marquee Plexiglas.
Solution:
Adjust the set collar for the marquee spinner for the GEAR IT UP™ arcade game
Procedures:
1. Remove the spinner carriage from the
rear of the marquee by loosening the four
rear bolts on the outside of the marquee
and lift up on the spinner carriage.
2. Detach the two wiring harnesses
connecting the spinner carriage.
3. Lay the spinner carriage on a clean, flat
surface with the spinner facing up.
4. Remove the three bolts on the face of the
spinner. See Figure 1.1.
5. Remove the four screws securing white
backplate located behind the Spinner.
See Figure 1.2.
6. Without removing the sensor or sensor
wiring harness, lay the white backplate
over to expose the spinner set collar.
See Figure 1.3.
Bob's Space Racers® Inc. ©2018
TECH TIP

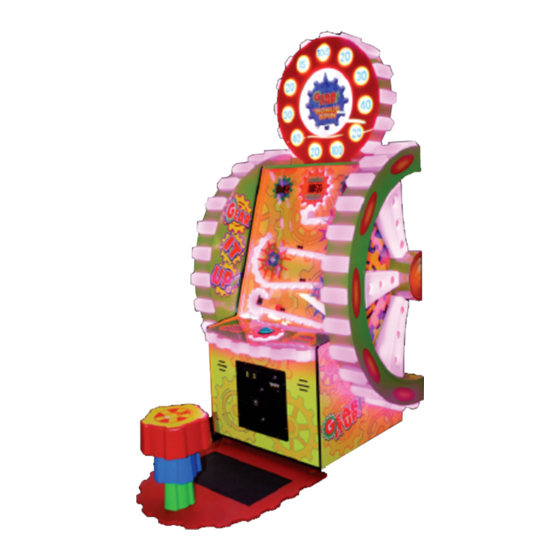

Gear It Up™ Arcade Game
Marquee Spinner Adjustment
Bob's Space Racers® Inc. © 2018
427 15th Street,
Daytona Beach, Florida 32117
Phone - (386) 677-0761
Fax - (386) 677-0794
E-mail: tech@bobsspaceracers.com

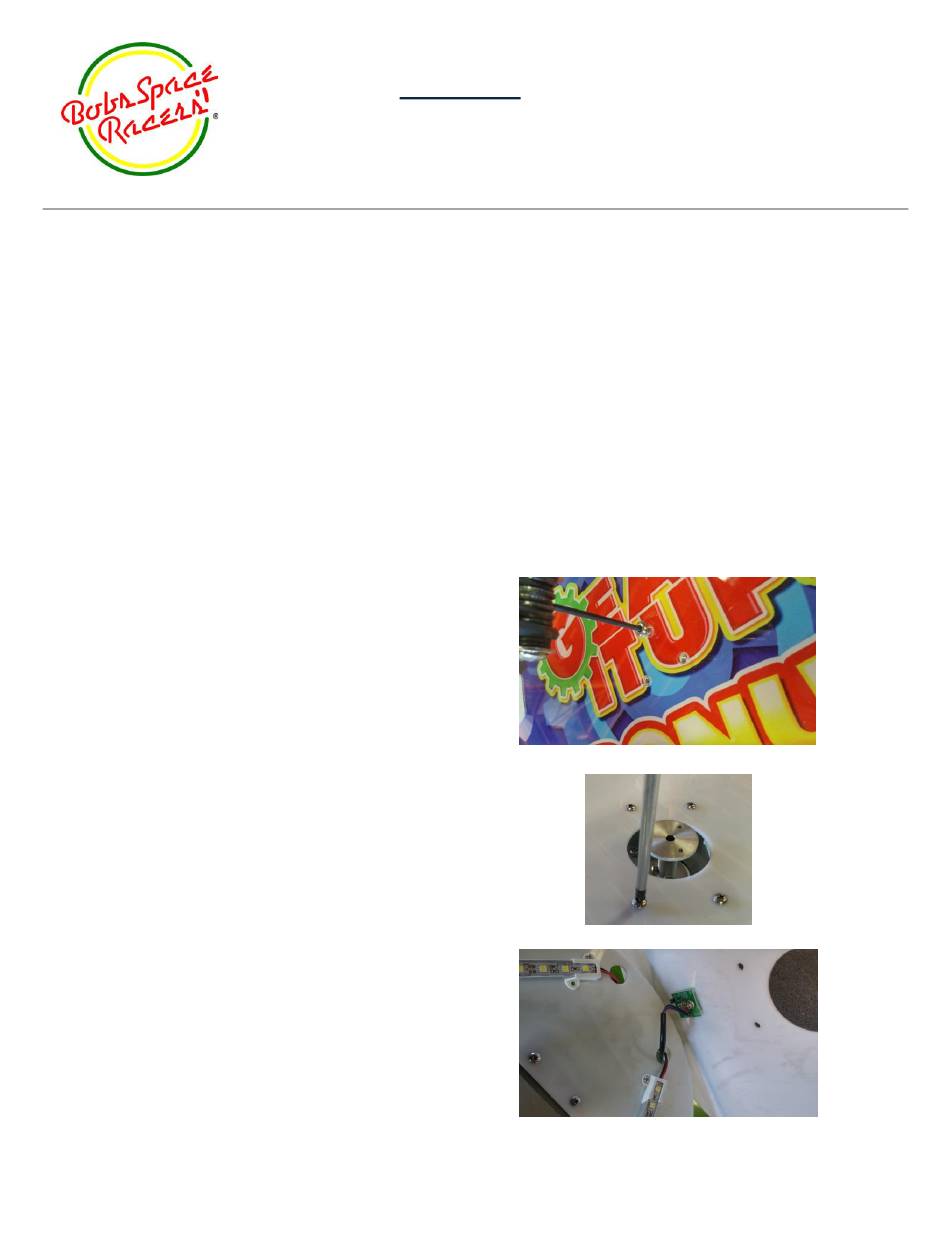

Figure 1.1
Figure 1.2
Figure 1.3
P a g e
| 1
