Summary of Contents for Bob's Space Racers Water Gun Fun Pixel Play

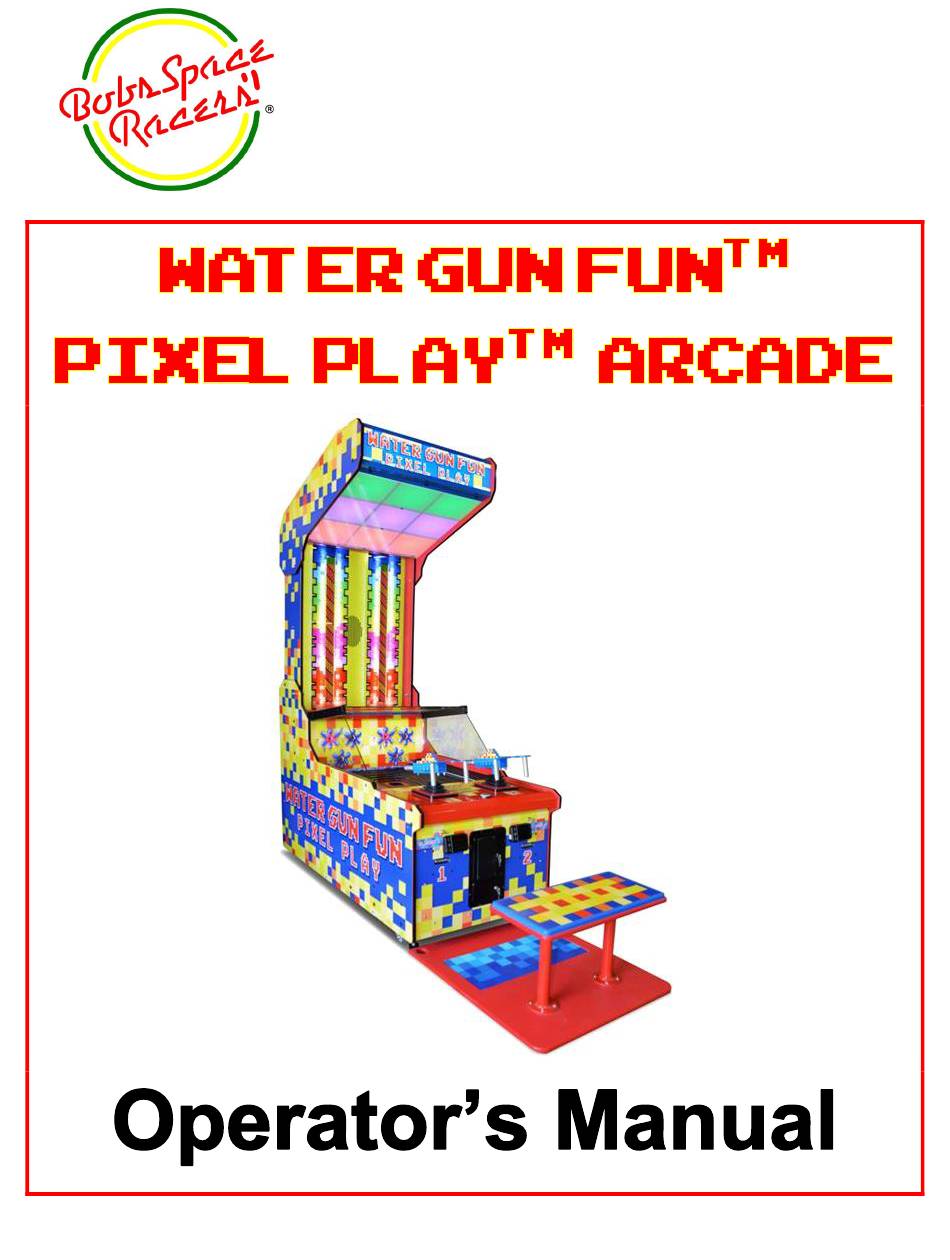

- Page 1 Bob’s Space Racers ® Inc. ©1976-2020 427 Whac-A-Mole Way, Holly Hill, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-4865 E-mail: tech@bobsspaceracers.com...
-
Page 2: Table Of Contents
Table of Contents I. BSR-3000 ARCADE OPERATOR’S MANUAL A. Introduction ……………………………………………………………….……….. ii A.1: Overview ………………………………………………………….………… ii A.2: Use only a GROUNDED AC receptacle. ………...………………….…….. ii A.3: Maintenance for the Games ………..…………………………………….… ii A.4: Average Power Requirements ……………………………………….……… ii A.5: Check Packing List …………………………………………………………. ii Setup …………………………………………………………………………….…... -
Page 3: Introduction

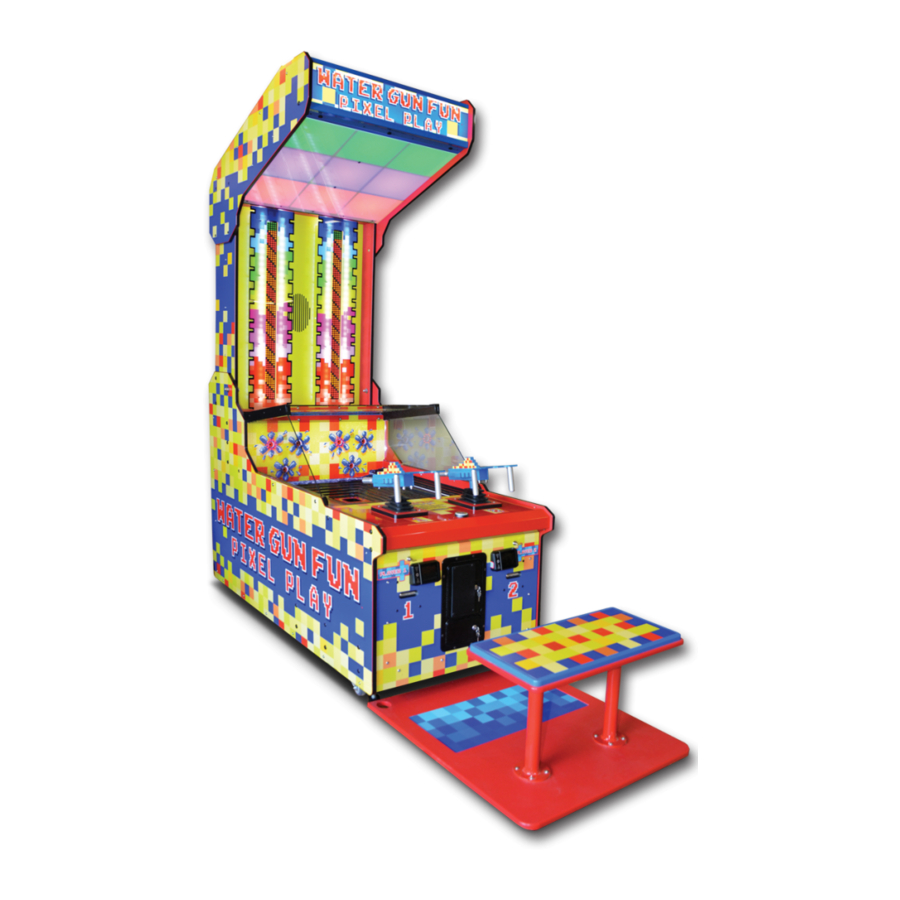

A. Introduction A.1 Overview This manual contains informative information about Water Gun Fun™ Pixel Play™ Arcade water game. Such as: Setup, instructions how to play, maintenance, tech tips, troubleshooting, game options settings, and service. Appendixes A-C contain information about policies, warranty, and service. Appendix D has a choice selection of parts pertaining to this specific game. -
Page 4: Setup
B. Setup B.1 The initial setup up of the game. B.1.1 Initial setup involves creating a location for the game. Figure B.1 B.1.1.1 Unwrapping the Arcade Figure B.2 B.1.1.2 BSR recommends to use at least four helpers to setup the game, seen in Figure B.3. In Figure B.4 use the bolts in Figure B.6 to secure the back, a 5/32-inch Allen will be required. - Page 5 B.1.1.3 Take the seat base, Figure B.7 and slide it under the arcade so that the holes of the seat base align with the stabilizers of the game seen in Figure B.6. B.1.1.3 For seat assembly take the two pedestals, Figure B.9. and align them with mark on the bottom of the seat as seen in Figure B.8.
-
Page 6: Chapter 1 : Operator's Procedure
Chapter 1: Operator’s Procedures 1.1 Object of Game. Shoot lighted target with water gun. The LED lights will climb up the track. Players shoot the target until the LED lights reaches the top of the display. 1.2 Operate / Race Bob’s Space Racers ®... -
Page 7: Chapter 2: Maintenance
Chapter 2: Maintenance 2.1 Periodic Maintenance Never Add Lime-Away®, bleach, or any other corrosives to cleaning solutions. Daily Cleaning 2.2.1 Clean the outer surfaces of the game with a nonabrasive and non-corrosive cleaner. 2.1.1 DO NOT USE commercial chemical sprays on vinyl graphics. 2.1.2 Vacuum the inside of the game occasionally to help keep the dust and ticket debris off 2.1.4... -
Page 8: Chapter 3: Maintenance Tip
Chapter 3: Maintenance Tip 3.1 Unclogging a brass tip of a water gun. This easy step-by-step process will show how to unclog the brass tip of a water gun. 3.1.1 Water Gun Tools Needed ➢ 3/8” Open-Ended Wrench ➢ Drill Bit #59 or BSR Gun tip Cleaner. -
Page 9: Chapter 4 : Cleaning The Filter
Chapter 4: Cleaning the Game Filter 4.1 Clean the Filter The filter valve is normally closed see Figure 4.1. 4.1.1 Rotate valve counter-clockwise to open valve, see Figure 4.2. 4.1.2 Note: See Figure 4.3, This is the latest version of the filtration assembly. There is an attachment to the bottom of the filter, which will need to be removed and a hose attached (Not Supplied) before removal of debris into a container of your choosing. -
Page 10: Chapter 5: Draining The Game's Pump
Chapter 5: Draining the Game’s Pump Note: In the event the Water Gun Fun™ Pixel Play™ Arcade is needed to be moved from one location to another, below shows the procedure to drain the pump 5.1 Draining the Pump Procedure uses gravity The primary drain uses gravity. -
Page 11: Chapter 6: Tech Tip
Chapter 6: Tech Tip 6.1 Tech Tip Introduction A tech tip is a simple guide to quickly identify game problem(s) and how to resolve them. Section 6.2 will discuss the common errors that can occur on the BSR-3000 board. 6.1.1 Note: If at any time you require more assistance, please do not hesitate to call technical support: 386-677-0761. -
Page 12: Chapter 7: Troubleshooting
Chapter 7: Troubleshooting 7.1 Troubleshooting Philosophy. When troubleshooting any product, certain general guidelines should be followed Always check to be sure that your game power is turned on. Ensure that all of the fuses in the 7.1.1 game are functional and that the AC voltage is in the proper operating range for your game. Ensure that all of the game harnessing is plugged in properly and that all of the pins are firmly 7.1.2 seated in the connectors. -
Page 13: Unit(S) Troubleshooting Flowchart
7.2 Unit(s) Troubleshooting Flowchart Before starting this troubleshooting guide, make sure the game has power. The targets are oscillating, LED displays are working, and there are not any errors displayed on the main logic board’s LCD display. This is a flowchart that will provide easy solutions based on a “Yes” or “No” response. 7.2.1 Start from the top and work your way down. - Page 14 Chapter 8: Options Settings – BSR 3000 Electronics Revision Approved BSR’s Water Gun Fun™ Pixel Play™ Arcade Program: WTR3KA.V02 Arcade May 22, 2017 Name Description Default Game Volume The decibel level of the output audio Bell Volume The decibel level of the bell audio Game Speed How fast the LEDs increment when target is pressed.
-
Page 15: Chapter 9: Service
Chapter 9: Service 9.1 Calling for Service When calling for service, please check the operator’s manual first. You may find a solution to 9.1.1 your problem within this manual. Please make sure you have the serial number of the game ready when you call. 9.1.2 If this is a repeat call, please tell the service technician that you have made a previous call 9.1.3... -
Page 16: Appendix A: Policies
Appendix A: Policies A.1 Service Policy Here at BOB’S SPACE RACERS ® INC., we pride ourselves in providing the highest quality, A.1.1 long lasting, and easy to maintain equipment. Technical Support Service hours are from 8:30 am to 5:00 pm, EST, Monday through Friday, A.1.2 excluding holidays. -
Page 17: Appendix B: Warranty
Appendix B: Warranty B.1 Game Warranty BOB’S SPACE RACERS® INC. ©1976-2019 90-DAYS GAME WARRANTY INCLUDED IN THIS WARANTY Bob’s Space Racers® Inc., warrants to the original purchaser only that the B.1.1 equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for 90-days period from the original date of deliver. - Page 18 B.1.6 TIME LIMIT FOR CLAIMS. Any claim for breach of warranty or claims under this warranty must be received in writing by Bob’s Space Racers® Inc. within 90-days following delivery of the equipment FUTURE CHANGES. Bob’s Space Racers® Inc. reserves the right to reserve, change or modify the B.1.7 construction and design of its equipment or any component part or parts thereof without incurring the obligations to make such changes or modifications in present equipment.
-
Page 19: Appendix C : Federal Communications Commission Statement
Appendix C: Federal Communications Commission (FCC) Statement C.1 FCC Statement This equipment has been tested and found to comply with limits for a Class A digital device, C.1.1 pursuant to part 15 of the FCC Rules. These limits designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 20: Appendix D : Parts
Appendix D: Parts List D.1 Water Gun Fun™ Pixel Play™ Arcade Parts List Part # Descriptions Picture BOARD-ASSY EM080318 BSR-3000 REV C BSR3K LED CONTROLLER EM080319 (THERE ARE 2 PER GAME) M0006104 WATER GUN TIP CLEANER M0006103 BRASS TIPS WATER GUN BARREL GUN M0006330 (NEW GUN BARRELS... - Page 21 P0009058 WASHDOWN PUMP 12VDC 1/2-INCH PORTS MX005910 BOOT HURST WATER GAME 1 INCH HOLE A0009000 DECAL SHOOT HERE CLEAR ARWB2014 SENSOR MAGNETIC WIRED E0801028 LED Target Ring (Encapsulated) w/ W/ Ring Holder ARWB2003 SENSOR MAGNETIC MAGNET E0023197 CLASS 2 TRANSFORMER, 40VAC, 24VAC, FOOT PUSH TO START E0013950 PLAY BUTTON...
- Page 22 ALLEN BUTTON HEAD ¼-20 X ½-INCH H0800015 BLACK OXIDE (THERE ARE 8 PER DISPLAY) POWER SUPPLY 12VDC E0803017 SP-320-12 LED BULB E14 BASE: 16RGB DIODES E0029010-14 24VAC #14 (ORDER BY BULB IDENTIFIER NUMBER) TICKET DISPENSER M0800204 (THERE ARE 2 PER GAME) M0008676 COIN MECH OVER/UNDER MINI DOOR SYSTEM 2-ENTRY CRYDOM: SOLID STATE RELAYS - INDUSTRIAL MOUNT SSR DC...
-
Page 23: Appendix E : Revision
Appendix E: Revision Information Revision Date of Revision Description of Revision Approved by August 25, 2017 Jack Cook September 26, 2017 Software updated from V01 to V02. Jack Cook Bob’s Space Racers ® Inc. ©1976-2019... - Page 24 Bob’s Space Racers® Inc. ©1976-2020 427 Whac-A-Mole Way, Holly Hill, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-4865 E-mail: tech@bobsspaceracers.com...
