- Page 1 Bob's Space Racers Inc. © 1976-2020 427 Whac-A-Mole Way Holly Hill, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-4865 Operator's Manual www.bobsspaceracers.com...
-
Page 2: Table Of Contents
Calling For Service................................ Before Calling for Parts/Service..........................Calling for Service..............................Reference Information............................. Replacement Parts............................... Appendix..................................Appendix A: Policies..............................Appendix B: Warranty Information.......................... Appendix C: Federal Communications Commission Statement................Notes..................................... Bob's Space Racers Inc. © 2023 P a g e | 1... - Page 3 REVISION INFORMATION DATE OF REVISION DESCRIPTION OF REVISION February 21, 2023 Preliminary Draft Bob's Space Racers Inc. © 2023 P a g e | 2...
-
Page 4: Introduction

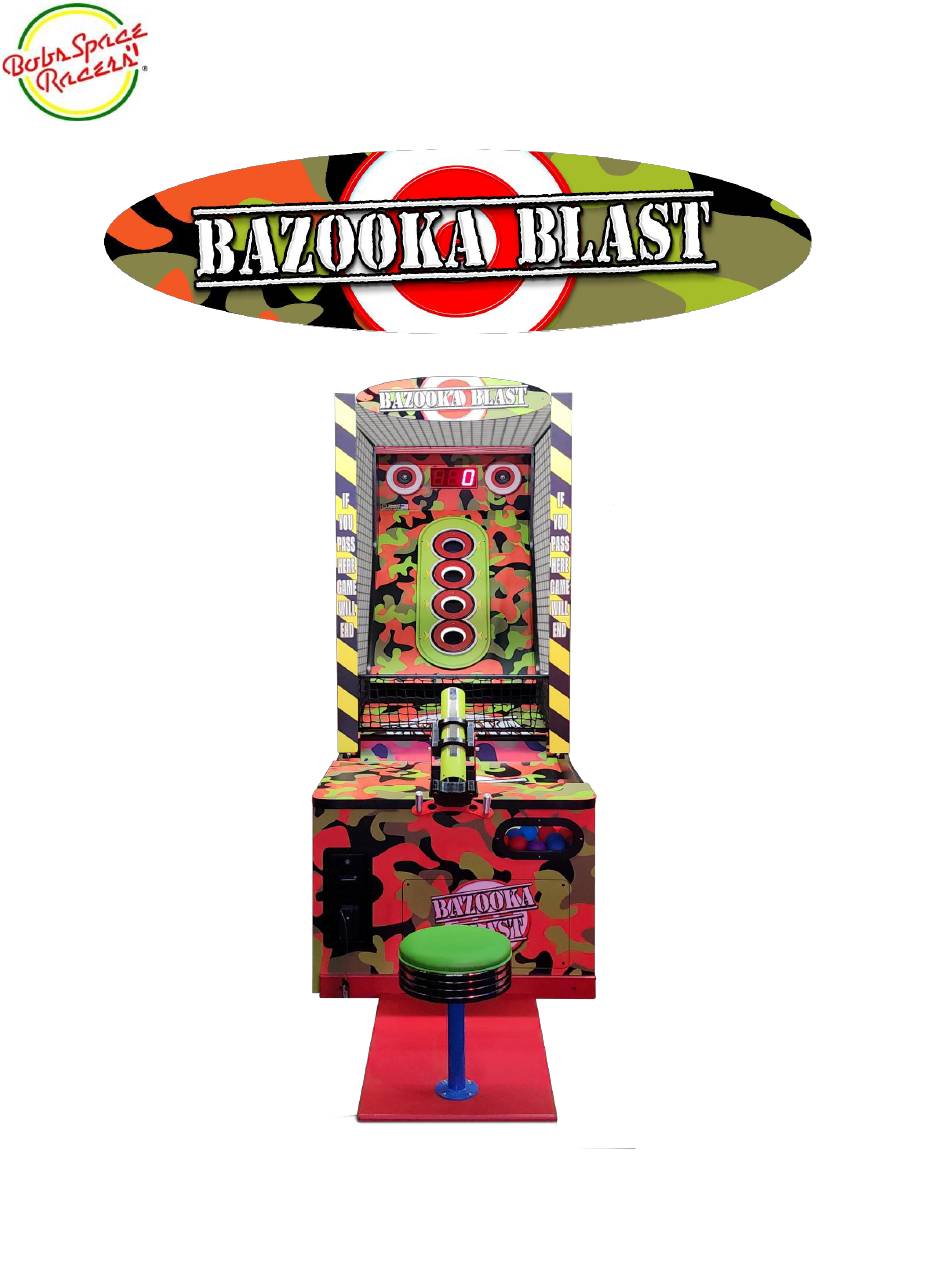

Introduction Overview This manual contains important information about the Bazooka Blast attendant free game manufactured by Bob’s Spacer Racers® Inc, such as: Setup, instructions how to play, maintenance, troubleshooting, game electronics and options settings, and service. Appendixes contain information about policies, warranty, and service. The Replacement parts section contains a list of commonly replaced parts on this game. -
Page 5: Game Setup/Installation
FRL adjustment knob and turning it clockwise to increase air pressure or counter-clockwise to decrease air pressure. Bob's Space Racers Inc. © 2023 P a g e | 4... -
Page 6: Operator's Procedure
Score display if any of the players surpass the high score on games that are linked together. This information will also be displayed on the LED Dot Matrix display attached to the game (if equiped) along with player winner information and other operation information. Bob's Space Racers Inc. © 2023 P a g e | 5... -
Page 7: Maintenance
You will also want to clean the sensor cover asssemblies to remove any dirt, debris and/or finger prints that may be on the sensor cover assembly. This will ensure a better reading from the "Ball Tracking Sensors". Bob's Space Racers Inc. © 2023 P a g e | 6... -
Page 8: Troubleshooting
Recommended Troubleshooting & Testing Tools These are the tools that Bob's Space Racers recommends you keep in/near your game for troubleshooting and repairing game as quickly as possible. These tools can be purchased from most hardware and department stores. -
Page 9: Troubleshooting Quick Reference
One or more of the tagets are activated when the game is idle COMM ERROR One or more of the units are not properly connect to the games network Bob's Space Racers Inc. © 2023 P a g e | 8... -
Page 10: Game Component Layouts
Target Panel Ball Gate assembly Gun assembly Ticket Door Optional RX8 Receiver Sensor assembly for Ball Tracking. Ball Retrieval Gun Valve and Holding Tank Access Panel Seat Base assembly Bob's Space Racers Inc. © 2023 P a g e | 9... - Page 11 Gun assembly Ball Gate Actuator Game Electronics Wire Feed Tube Air Holding Tank Game Component Layout - Gun Gun Pivot Bolts Ball Tube Fire Buttons Gun Pivot Stop Bob's Space Racers Inc. © 2023 P a g e | 10...
- Page 12 Game Component Layout - Back View Speakers Display Target Sensors access panel Mains Power Input Bob's Space Racers Inc. © 2023 P a g e | 11...
-
Page 13: Electronics Schematics
Electronics Schematics Bob's Space Racers Inc. © 2023 P a g e | 12... - Page 14 Bob's Space Racers Inc. © 2023 P a g e | 13...
- Page 15 Bob's Space Racers Inc. © 2023 P a g e | 14...
-
Page 16: Programming Options
Amount of ticket player received (See FEC PAYOUT TABLE) Amout of players in the game 9 10 11 12 FEC Winner Ticket Payout Table Amout of tickets received to winner HIGH SCORE MODE ONLY PROGRAM OPTIONS Bob's Space Racers Inc. © 2023 P a g e | 15... -
Page 17: Setting The Programming Options
Turn the game power off, press and hold the UP and LEFT button and turn the game power back on. The screen will display the game type the board is currently set to. Select the game type by pressing left or right and then pressing SELECT when you are finished. Bob's Space Racers Inc. © 2023 P a g e | 16... -
Page 18: Calling For Service
Depending on the age of your game and the part you need, you may be requested to send a picture to Bob's Space Racers so that we make sure you get the correct part. This can be done using your smart phone and send the picture via text to our parts email address parts@bsrgames.com... -
Page 19: Replacement Parts
EM080320 E0013972 SENSOR PHOTOELECTRIC W/HARNESS REFLECTOR MICRO DETECTOR - AF BAZOOKA M0012428 CS-POWER SUPPLY 12V 12.5AMP E0022720 E0800038 ACTUATOR LINEAR 12V - AFG BAZOOKA BLAST - BALL STOP Bob's Space Racers Inc. © 2023 P a g e | 18... - Page 20 AFG BAZOOKA BLAST BALLS M0004571-S N0003801 RESERVE TANK FOR AF-BAZOOKA BLAST FILTER REGULATOR W/BRACKET N0002701 MAIN GAME UPPER HARNESS PICTURE TBD TICKET DISPENSER 2IN TICKETS ONLY M0020350 TICKET DISPENSER 1IN TICKETS ONLY M0800204 TICKET 2IN X 4IN "YOU’RE A WINNER"...
-
Page 21: Appendix
Note: These credits do not include shipping charges of any kind! Appendix B: Warranty BOB'S SPACE RACERS® INC. © 1976-2020 1 YEAR GAME WARRANTY INCLUDED IN THIS WARANTY Bob’s Space Racers® Inc., warrants to the original purchaser only that the equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for 120-Days period from the original date of deliver. -
Page 22: Appendix C: Federal Communications Commission Statement
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Bob's Space Racers Inc. © 2023 P a g e | 21... -
Page 23: Notes
NOTES Bob's Space Racers Inc. © 2023 P a g e | 22... - Page 24 Bob's Space Racers Inc. © 2020 427 Whac-A-Mole Way Holly Hill, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-0794 Technical Support Email: tech@bobsspaceracers.com Parts Dept. Email: parts@bsrgames.com...
