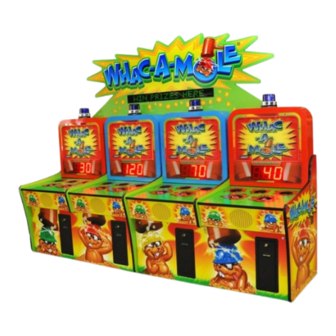

Bob's Space Racers FEC Whac-A-Mole BSR-3000 Operator Instructions Manual
  1. Manuals
  2. Brands
  3. Bob's Space Racers Manuals
  4. Arcade Game Machines
  5. FEC Whac-A-Mole BSR-3000
  6. Operator instructions manual

Bob's Space Racers FEC Whac-A-Mole BSR-3000 Operator Instructions Manual

Hide thumbs Also See for FEC Whac-A-Mole BSR-3000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Instruction Manual
Bob's Space Racers® Inc. © 2017
427 15th Street,
Daytona Beach, Florida 32117
Phone - (386) 677-0761
Fax - (386) 677-0794
E-mail: tech@bobsspaceracers.com
BSR-3000
FEC Whac-A-Mole
Operator's
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FEC Whac-A-Mole BSR-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bob's Space Racers FEC Whac-A-Mole BSR-3000

Summary of Contents for Bob's Space Racers FEC Whac-A-Mole BSR-3000

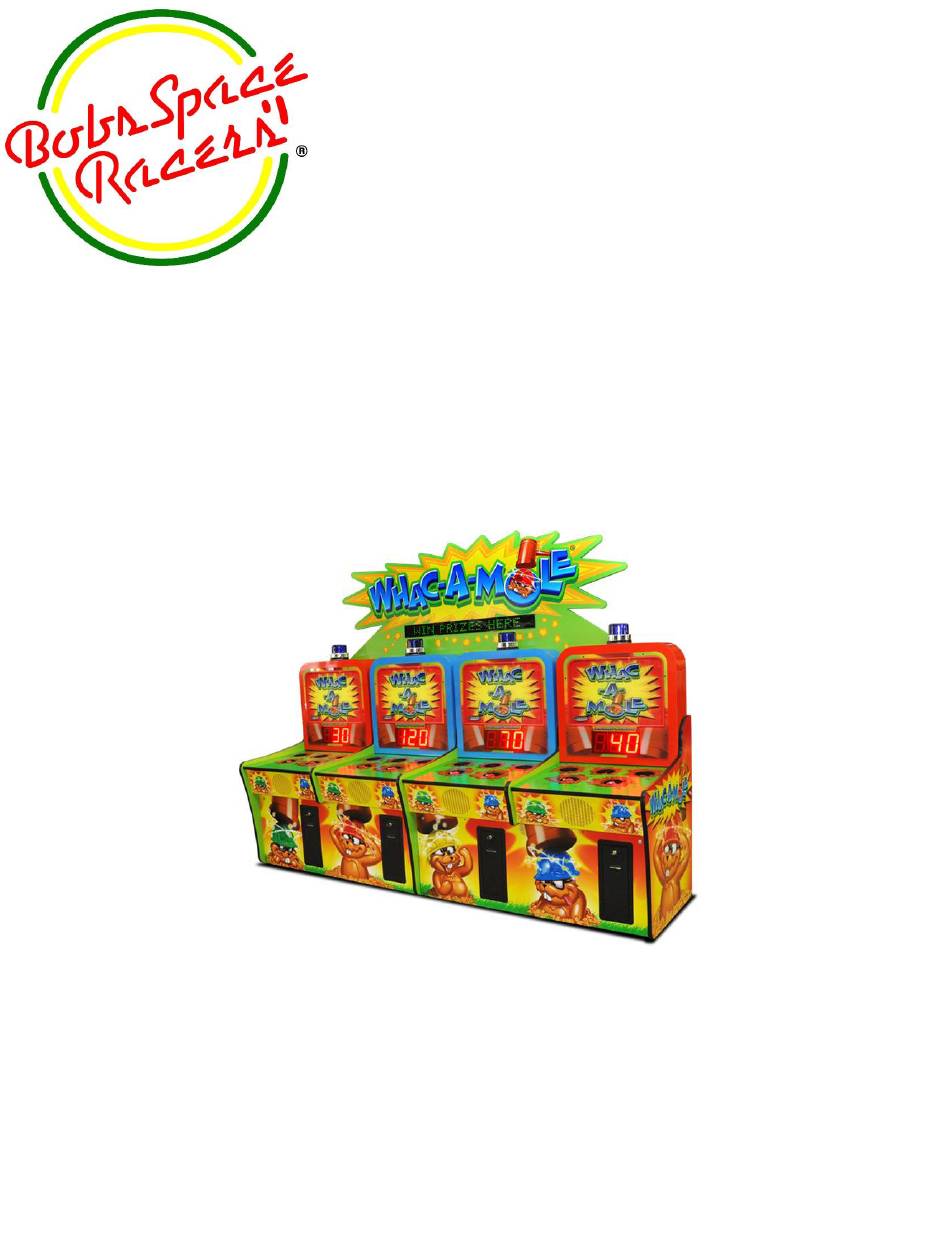

  • Page 1 Bob’s Space Racers® Inc. © 2017 427 15th Street, Daytona Beach, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-0794 E-mail: tech@bobsspaceracers.com BSR-3000 FEC Whac-A-Mole Operator’s Instructions...

  • Page 2: Table Of Contents

    Table of Contents I. BSR-3000 WHAC-A-MOLE OPERATOR’S INSTRUCTIONS A. Introduction ……………………………………………………………….……….. ii A.1: Overview ………………………………………………………….………… ii A.2: Use only a GROUNDED AC receptacle. ………...………………….…….. ii A.3: Maintenance for the Games ………..…………………………………….… ii A.4: Average Power Requirements ……………………………………….……… ii A.5: Check Packing List …………………………………………………………. ii Setup …………………………………………………………………………….…...

  • Page 3: Introduction

    A. Introduction A.1 Overview This manual contains informative information about the Family Entertainment Center (FEC) Whac-A-Mole. Such as: Setup, instructions how to play, printing the account meters, maintenance, troubleshooting, game options settings, and service. Appendixes A-C contain information about policies, warranty, and service. Appendix D has a choice selection of parts pertaining to this specific game.

  • Page 4: Setup

    B. Setup B.1 The initial setup up of the game. Initial setup involves clearing a spot for the game. B.1.1 Ensure the game is level B.1.1.1 Make necessary game connections. B.1.1.2 Hook up the power to the game. B.1.2 Test each unit separately on the game.

  • Page 5: Chapter 1 : Operator's Procedure

    Chapter 1: Operator’s Procedures 1.1 Object of Game. Whack the mole that pops up. This will advance the score by 10 points. Players whack the mole until the scoreboard reaches 150 points. 1.2 Operate / Race Bob’s Space Racers® Inc. © 2017...

  • Page 6: Chapter 2: Maintenance

    Chapter 2: Maintenance 2.1 Maintenance Recommendations Clean the outer surfaces of the game with a commercial spray type cleaner. 2.1.1 DO NOT USE commercial chemical sprays on vinyl graphics. 2.1.2 DO USE a good quality spray type furniture polish to keep the game looking good. 2.1.3 Remove power before vacuuming the inside of the game, because this will help keep the dust 2.1.4...

  • Page 7: Chapter 3: Maintenance Tip

    Chapter 3: Maintenance Tip 3.1 Maintenance Introduction Section 3.2 is the procedure to service the coil bed. 3.1.1 Please Note: If at any time, you require more assistance, please do not hesitate to call BSR’s tech support: 386-677-0761. URN OFF GAME POWER WHEN PERFORMING THIS OPERATION Please Note: Read all the instructions before performing any procedures.
  • Page 8 Remove the four bolts and washers (7/16-inch) that secure the coil bed to the cabinet. 3.3.4 Figure 3.4 Remove the coil bed assembly by carefully lifting it up. 3.3.5 Figure 3.4 Disconnect the two Molex connectors that are connected to the coil bed assembly. 3.3.6 Please Note: Remove with care.
  • Page 9 Remove Mole Head from the Assembly by pulling it out and then remove the three washers 3.3.8 from the shaft. Clean the shaft using a soft cloth and an electrical contact / anti corrosion cleaner such as 3.3.9 ElectriCorr® VPCL–239® or equivalent. 3.3.10 Polish the shaft with Scotch bright Remove any rust spots with an emery cloth.
  • Page 10 Figure 3.16 Figure 3.15 Figure 3.17 Figure 3.18 Coin up or swipe and play the game to ensure everything is running smoothly. 3.3.15 The game is now ready for normal operation. 3.3.16 Bob’s Space Racers® Inc. © 2017...

  • Page 11: Chapter 4: Tech Tip

    Chapter 4: Tech Tip 4.1 Tech Tip Introduction A tech tip is a simple guide to quickly identify game problem(s) and how to resolve them. Section 6.2.1 will discuss the common errors that can happen on the BSR-3000 board. 4.1.1 Note: If at any time you require more assistance, please do not hesitate to call tech support: 386-677-0761.

  • Page 12: Chapter 5: Troubleshooting

    Chapter 5: Troubleshooting 5.1 Troubleshooting Philosophy. When troubleshooting any product, certain general guidelines should be followed Always check to be sure that your game power is turned on. Ensure that all of the fuses in the 5.1.1 game are functional and that the AC voltage is in the proper operating range for your game. Ensure that all of the game harnessing is plugged in properly and that all of the pins are firmly 5.1.2 seated in the connectors.
  • Page 13 5.2 Unit(s) Troubleshooting Chart Symptom Possible Problem Solution Low Volume – Check Optics Sound Problems Check connections and/or repair harnessing -No sound Faulty speaker harnessing Check and/or replace speaker -Low Sound Faulty speaker Check connections -Intermittent Sound Faulty Main P.C. Board Check and/or repair or replace Main P.C.
  • Page 14 Chapter 6: Options Settings – BSR 3000 Electronics Revision Approved BSR Whac-A-Mole Program: WAM3K.V22 FEC – Large Ticket January 30, 2017 Name Description Default UNIT ID NUMBER Each Unit(s) ID assignment. When Programmed: 0 = Master | 33 = Factory Reset Default ID Number # of Players Set to the total number of players in a game.
  • Page 15 WARNING! DO NOT ENTER PROGRAMMING MODE UNLESS YOU ABSOLUTELY HAVE TO! Inadvertently, changing program settings can cause undesirable results to your game. Bob’s Space Racers® Inc. has set these options to achieve the highest turn-around time and optimal game performance. Programming Mode 1.

  • Page 16: Chapter 7: Service

    Chapter 7: Service 7.1 Calling for Service When calling for service, please check the service manual first. You may find a solution to 7.1.1 your problem within this manual. Please make sure you have the serial number of the game ready when you call. 7.1.2 If this is a repeat call, please tell the service technician that you have made a previous call 7.1.3...

  • Page 17: Chapter 8: Family Entertainment Center (Fec) Options

    Chapter 8: Family Entertainment Center (FEC) Options 8.1 FEC Options for Bob’s Space Racer’s Game The FEC swipe card option will allow the game to be operated without an attendant. These 8.1.1 options have a few different types of configurations. BSR will run the wires for the card swipe, but on most occasions the customer usually has their own swipe system.

  • Page 18: Appendix A: Policies

    Appendix A: Policies A.1 Service Policy Here at BOB’S SPACE RACERS® INC., we pride ourselves in providing the highest quality, A.1.1 long lasting, and easy to maintain equipment. Technical Support Service hours are from 8:30 am to 5:00 pm, EST, Monday through Friday, A.1.2 excluding holidays.

  • Page 19: Appendix B: Warranty

    Appendix B: Warranty B.1 Game Warranty BOB’S SPACE RACERS® INC. ©2017 1 YEAR GAME WARRANTY INCLUDED IN THIS WARANTY Bob’s Space Racers® Inc., warrants to the original purchaser only that the B.1.1 equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for one-year period from the original date of deliver.

  • Page 20: B.2: Advanced Replacement Item(S) Shipping Requirements

    TIME LIMIT FOR CLAIMS. Any claim for breach of warranty or claims under this warranty must be received B.1.6 in writing by Bob’s Space Racers® Inc. within 120-days following delivery of the equipment FUTURE CHANGES. Bob’s Space Racers® Inc. reserves the right to reserve, change or modify the B.1.7 construction and design of its equipment or any component part or parts thereof without incurring the obligations to make such changes or modifications in present equipment.
  • Page 21 C. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 22: Appendix D : Parts

    Appendix D: Parts List D.1 Customer Parts List Item # Part # Descriptions Picture BOARD-ASSY EM080318 BSR-3000 REV C E0023200 TRANSFORMER 120/240 12-24 .5KVA BK/BST E0030628 12V BLUE DOME BEACON ASSEMBLY E0029107 BULB: 1156 HAPP BEACON REPLACEMENT M0800606 WHAC-A-MOLE HEAD W/ UPPER SHAFT W0800701 LOWER SHAFT MX010100...

  • Page 23: Appendix E : Revision

    Appendix E: Revision Information Revision Date of Revision Description of Revision Approved by February 1, 2017 Larry Steele Bob’s Space Racers® Inc. © 2017...
  • Page 24 Bob’s Space Racers® Inc. © 2017 427 15th Street, Daytona Beach, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-0794 Email: tech@bobsspaceracers.com...
