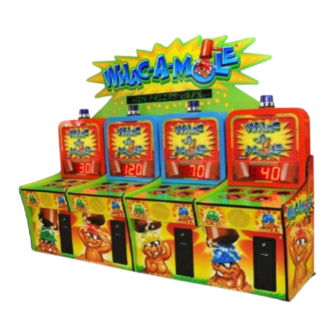

  5. FEC Whac-A-Mole BSR-3000
  6. Operator instructions manual

Bob's Space Racers BSR-3000 Operator Instructions Manual

Water games
Hide thumbs Also See for BSR-3000:
Table of Contents

Advertisement

Quick Links

Download this manual
Bob's Space Racers® Inc. © 2017
427 15th Street,
Daytona Beach, Florida 32117
Phone - (386) 677-0761
Fax - (386) 677-0794
E-mail: tech@bobsspaceracers.com
BSR-3000
Water
Games
Operator's
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSR-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Bob's Space Racers BSR-3000

Summary of Contents for Bob's Space Racers BSR-3000

  • Page 1 Bob’s Space Racers® Inc. © 2017 427 15th Street, Daytona Beach, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-0794 E-mail: tech@bobsspaceracers.com BSR-3000 Water Games Operator’s Instructions...

  • Page 2: Table Of Contents

    Table of Contents I. BSR-3000 WATER GAMES OPERATOR’S INSTRUCTIONS A. Introduction ……………………………………………………………….……….. ii A.1: Overview ………………………………………………………….………… ii A.2: Use only a GROUNDED AC receptacle. ………...………………….…….. ii A.3: Maintenance for the Games ………..…………………………………….… ii A.4: Average Power Requirements ……………………………………….……… ii A.5: Check Packing List …………………………………………………………. ii Setup …………………………………………………………………………….…...

  • Page 3: Introduction

    A. Introduction A.1 Overview This manual contains informative information about single and tri-target water games. Such as: Setup, winterize a game, instructions how to play, printing the accounting report, maintenance, tech tips, troubleshooting, game options settings, and service. Appendixes A-C contain information about policies, warranty, and service.

  • Page 4: Setup

    B. Setup B.1 The initial setup up of the game. Initial setup involves clearing a spot for the game. B.1.1 Ensure the game is level B.1.1.1 Make necessary game connections. B.1.1.2 Hook up the power to the game. B.1.2 Close drain valves. B.1.3 Fill the front tank with water.

  • Page 5: Chapter 1 : Operator's Procedure

    Chapter 1: Operator’s Procedures 1.1 Object of Game. Shoot lighted target with water gun. This will advance the toy upwards. Players shoot the target until the toy reaches the win position. 1.2 Operate / Race How to Start A Game Press Kick Switch ID Light Turns on Unit Push Button...

  • Page 6: Chapter 2: Accounting Report

    Chapter 2: Accounting Report Note: To print account receipt, locate the accounting 2.1 Understanding the Accounting Report module. Then, simply turn the key to the ON position. The first option on the screen will prompt you to print Bobs Space Racers the receipt.

  • Page 7: Chapter 3: Maintenance

    Chapter 3: Maintenance 3.1 Maintenance Recommendations Clean the outer surfaces of the game with a commercial spray type cleaner. 3.1.1 DO NOT USE commercial chemical sprays on vinyl graphics. 3.1.2 DO USE a good quality spray type furniture polish to keep the game looking good. 3.1.3 Vacuum the inside of the game occasionally to help keep the dust and ticket debris off of all the 3.1.4...

  • Page 8: Chapter 4: Maintenance Tip

    Chapter 4: Maintenance Tip 4.1 Maintenance Introduction Section 4.2 is the procedure to unclog the water gun tip 4.1.1 Note: If at any time you require more assistance, please do not hesitate to call BSR’s tech support: 386-677-0761. 4.2 Unclogging a brass tip of a water gun. Water Gun Tools Needed Introduction...

  • Page 9: Chapter 5: Draining The Tank

    Chapter 5: Draining the Tank 5.1 Automatic Draining Procedure requires power and uses the existing pump. Depending on the system, there might be a slight difference in the output valve. Figure 1.1 and 5.1.1 Figure 1.2 will be similar to your setup. Open the valve to allow water to exit the system.

  • Page 10: Manual Draining

    5.3 Manual Draining Procedure uses gravity. The secondary drain uses gravity. The location may vary based on the model. The below, 5.3.1 Figure 1.9 is a close up. Figure 1.8 is from a different model, but gives an idea where it is located. To open the valve turn the red handle 90 degrees, either to the left or right.

  • Page 11: Chapter 6: Tech Tip

    6.1 Tech Tip Introduction A tech tip is a simple guide to quickly identify game problem(s) and how to resolve them. Section 6.2.1 will discuss the common errors that can happen on the BSR-3000 board. 6.1.1 Note: If at any time you require more assistance, please do not hesitate to call tech support: 386-677-0761.

  • Page 12: Chapter 7: Troubleshooting

    Chapter 7: Troubleshooting 7.1 Troubleshooting Philosophy. When troubleshooting any product, certain general guidelines should be followed Always check to be sure that your game power is turned on. Ensure that all of the fuses in the 7.1.1 game are functional and that the AC voltage is in the proper operating range for your game. Ensure that all of the game harnessing is plugged in properly and that all of the pins are firmly 7.1.2 seated in the connectors.

  • Page 13: Unit(S) Troubleshooting Flowchart

    7.2 Unit(s) Troubleshooting Flowchart Introduction Step 1 Start at the Beginning • Each question has a This is a flowchart that will provide easy solutions response. based on a “Yes” or “No” • “Yes” or “No” response. Start from the top and work your way down.
  • Page 14 Chapter 8: Options Settings – BSR 3000 Electronics Revision Approved BSR Water™ Program: WTR3K.V20 January 3, 2017 Name Description Default UNIT ID NUMBER Each Unit(s) ID assignment. When Programmed: 0 = Master | 33 = Factory Reset Default ID Number # of Players Set to the total number of players in a game.
  • Page 15 WARNING! DO NOT ENTER PROGRAMMING MODE UNLESS YOU ABSOLUTELY HAVE TO! Inadvertently, changing program settings can cause undesirable results to your game. Bob’s Space Racers® Inc. has set these options to achieve the highest turn-around time and optimal game performance. Programming Mode 1.

  • Page 16: Chapter 9: Service

    Chapter 9: Service 9.1 Calling for Service When calling for service, please check the service manual first. You may find a solution to 9.1.1 your problem within this manual. Please make sure you have the serial number of the game ready when you call. 9.1.2 If this is a repeat call, please tell the service technician that you have made a previous call 9.1.3...

  • Page 17: Appendix A: Policies

    Appendix A: Policies A.1 Service Policy Here at BOB’S SPACE RACERS® INC., we pride ourselves in providing the highest quality, A.1.1 long lasting, and easy to maintain equipment. Technical Support Service hours are from 8:30 am to 5:00 pm, EST, Monday through Friday, A.1.2 excluding holidays.

  • Page 18: Appendix B: Warranty

    Appendix B: Warranty B.1 Game Warranty BOB’S SPACE RACERS® INC. ©2017 1 YEAR GAME WARRANTY INCLUDED IN THIS WARANTY Bob’s Space Racers® Inc., warrants to the original purchaser only that the B.1.1 equipment that is the subject of this sale conforms to its specifications, and is free from defects under normal service for one-year period from the original date of deliver.

  • Page 19: B.2: Advanced Replacement Item(S) Shipping Requirements

    TIME LIMIT FOR CLAIMS. Any claim for breach of warranty or claims under this warranty must be received B.1.6 in writing by Bob’s Space Racers® Inc. within 120-days following delivery of the equipment FUTURE CHANGES. Bob’s Space Racers® Inc. reserves the right to reserve, change or modify the B.1.7 construction and design of its equipment or any component part or parts thereof without incurring the obligations to make such changes or modifications in present equipment.
  • Page 20 C. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 21: Appendix D : Parts

    Appendix D: Parts List D.1 Customer Parts List Item # Part # Descriptions Picture BOARD-ASSY EM080318 BSR-3000 REV C M0006104 WATER GUN TIP CLEANER BRASS TIPS WATER GUN M0006103 (RUBBER WASHER INCLUDED) BARREL GUN M0006330 (NEW GUN BARRELS DO NOT USE A WASHER) FILTER PVC 1 INCH CLEAR VU-FLO™...
  • Page 22 PLASTIC PUMP: P0008930 ¾ HP CAST IRON PUMP: P0008900 1.0 HP P0007800 WATER PRESSURE REDUCING VALVE CANISTER: ¾ INCH X ¾ INCH P0801009 WATER FILTER HOUSING CANISTER P0008800 WATER FILTER EX007650 MOTOR STEPPING ASSY-NEW VERSION MX005910 BOOT HURST WATER GAME 1 INCH HOLE M0005909 RING BOOT STAINLESS STEEL E0012900...
  • Page 23 E0013300 MICRO SWITCH STANDARD BZ M0002200 DECAL SHOOT HERE CLEAR ARWB2014 SENSOR MAGNETIC WIRED ARWB2003 SENSOR MAGNETIC MAGNET E0024400 FUSEPOST PANEL MOUNT EX033550 ACCOUNTING LCD E0900000 PRINTER DOT IMPACT IN GAME ACCTG THERMAL PRINTER STAR MICRONICS ® – E0900015 PRINTING RIBBON E00900005 PRINTER PAPER 3"...
  • Page 24 E0023200 TRANSFORMER 120/240 12-24 .5KVA BK/BST E0030635 12V BLUE DOME BEACON ASSEMBLY E0029107 BULB: 1156 HAPP BEACON REPLACEMENT E0029800 ID LIGHT 12V AMBER Bob’s Space Racers® Inc. © 2017...

  • Page 25: Appendix E : Revision

    Appendix E: Revision Information Revision Date of Revision Description of Revision Approved by December 30, 2016 Jack Cook...
  • Page 26 Bob’s Space Racers® Inc. © 2017 427 15th Street, Daytona Beach, Florida 32117 Phone - (386) 677-0761 Fax - (386) 677-0794 Email: tech@bobsspaceracers.com...
