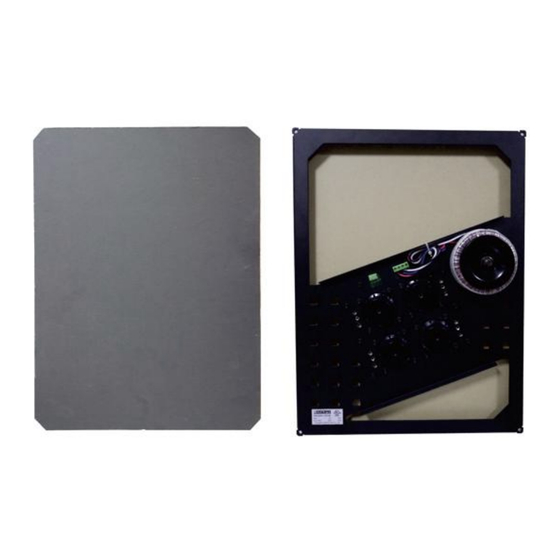

DSP40IL 40W 8Ω Invisible Speaker System
The DSP40IL is a in-wall or in-ceiling speaker of 8 Ω speaker input. Thanks to the special driver unit and
special material used in the surface cover, DSP40IL can perform with wonderful sound when it is installed
inside the wall or ceiling. Totally invisible. When installed in the wall or ceiling and furnished with paint, the
DSP40IL can be integrated with the surrounding and be totally invisible. It is ideal choice for industrial and
commercial applications in shopping malls, office building and museums where background music and
paging is needed.
 Rate power 40W, 8 Ω speaker input available
 Wide Freq. Response: 100Hz -20 kHz
 Max SPL:103±2dB
 High sensitivity:87±2dB
 Totally invisible, installed in the wall or ceiling
 Excellent sound quality, for installation in high-end places
Model
DSP40IL
Freq. Response
100Hz -20 kHz
Sensitivity (1w/1m)
87±2dB
Impedance
export@dsppa.com
/
www.dsppatech.com
The specifications will be subject to change without prior notice.
Copyright © Guangzhou DSPPA Audio Co.,Ltd All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSP40IL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DSPPA DSP40IL

  • Page 1 DSP40IL 40W 8Ω Invisible Speaker System The DSP40IL is a in-wall or in-ceiling speaker of 8 Ω speaker input. Thanks to the special driver unit and special material used in the surface cover, DSP40IL can perform with wonderful sound when it is installed inside the wall or ceiling.
  • Page 2 20W/40W Max SPL 103±2dB Dimension 300mm×400mm×52mm Weight 1.7 kg Coverage The S.P.L fall-off Conventional Cone Loudspeaker DSPPA Flat Panel export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd All rights reserved.
  • Page 3 Figure C export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd All rights reserved.
  • Page 4 15. After the test is over and when your plasterwork is completely dry, decorate the surface of the plaster with paint, wallpaper, fabric or other coatings as required. Figure E export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd All rights reserved.
