- Page 1 MAG6311 User Manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. G u a n g z h o u D S P PA A u d i o C o . , L t d .
- Page 2 Matters needing attention Please read the following before operating the product. Warning The following basic requirements must be strictly observed, to avoid potential personal injury and equipment or property damages to you or any person nearby. The basic requirements include without limitation to the following: Power source/power cable When abnormal conditions are realized...
-
Page 3: Table Of Contents
1.2 Functional Features............................1 2. Description of Appearance............................2 2.1 Description of side panel..........................2 3. Connection Diagram..............................3 3.1 MAG6311 application diagram in system......................3 3.2 MAG6311 connection diagram of interface....................4 3.3 DATA interface instruction..........................5 4. IP Address Setting..............................6 5. Operation Instruction..............................8 Packing List.................................11... -
Page 4: Product Instruction

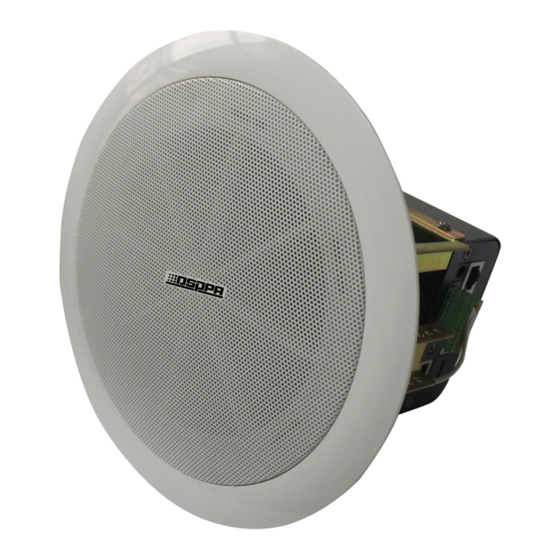

1.Product Instruction 1.1 About MAG6311 MAG6311 IP network ceiling speaker is a network of all-digital analog-digital conversion signal processor based on the TCP / IP transmission protocol. With dual network port design, it can be attached to any place that the network can reach. -
Page 5: Description Of Appearance
IP Network Ceiling Speaker 2.Description of Appearance 2.1 Description of side panel LAN1 LAN2 USB Disk Micro SD Data MIC2 DC +15V (注意:此端口不允许连接网 络交换机,否则会烧毁设备!) 1．Power supply interface Supply working power for the device. 2．Speaker Built-in 2 × 15W digital amplifiers, the output of the power is 15W respectively. Connect two fixed resistance (4Ω) speakers respectively. -
Page 6: Connection Diagram
2.The above figure is for illustrative purposes only, please refer to the system connection diagram. 3.MAG6311 terminal in the system must be connected through the network switch, and set the appropriate address and then can be connected with the host. -
Page 7: Mag6311 Connection Diagram Of Interface
IP Network Ceiling Speaker 3.2 MAG6311 connection diagram of interface In addition to the built-in MP3 player and a network source, the terminal also has 1-channel auxiliary output to connect other sources and amplifiers. The personalized design of the unit can meet the needs of the terminal site of high power and multi-source. -
Page 8: Data Interface Instruction
IP Network Ceiling Speaker 3.3 DATA interface instruction LAN1 LAN2 USB Disk Micro SD Data MIC2 DC +15V (注意:此端口不允许连接网 络交换机,否则会烧毁设备!) 8-bit data plug 8位 数 据 插 头 Note: (1) 8-bit dedicated data plug, respectively, from top to bottom : ① OUT +, ② OUT-, ③ IN +, ④B, ⑤ A, ⑥ IN-, ⑦... -
Page 9: Ip Address Setting
IP Network Ceiling Speaker 4.IP Address Setting The IP network ceiling speaker can be customized to modify the network parameters, if you want to use this function, please read this section: Method 1: 1. Modify the configuration of the computer's IP address, requiring the IP of the configured computer and network indoor ceiling speaker address on the same network segment;... - Page 10 IP Network Ceiling Speaker Method 2: 1. Enter the host software "Settings" -> "System Maintenance" -> "Device Maintenance" 2. Find the IP address of the indoor ceiling speaker label, select and click Modify. 3.As (Figure 2) below, modify the parameters and click OK to see the interface shows success. Figure 2...
-
Page 11: Operation Instruction
IP Network Ceiling Speaker 5.Operation Instruction In the network PA system to expand MAG6311 indoor ceiling speaker terminal, set the following parameters on the host configuration to complete the connection of the terminal and the host. 1.Off-line schedule function: Enable mode and disable mode are optional, to ensure that there is no switch to 100V state, according to their own needs to start offline schedule point function. - Page 12 IP Network Ceiling Speaker Freq. Response characteristic Distortion characteristic (dB SPL、1W、1m) (THD< 3% 1W、1m、70Hz-16kHz) Appearance dimension Installation hole 176mm 210mm Just 15cm above your ceiling Installation method 1. Cut a diameter of 178-190mm installation hole in the ceiling (see above). 2.
- Page 13 For issues and precautions not mentioned in this User Manual, if required, please contact the distributor or visit our website at http://www.DSPPA.com. In case of any failure in the warranty period, please contact service personnel (or distributor) of our ...
-
Page 14: Packing List
IP Network Ceiling Speaker Packing List Item MAG6311 IP network ceiling speaker 1 set 3000MM/8 core network cable 1 piece 14V DC power adapter 1 piece Network cable connector 2 pieces 10P green plug 2.5MM 1 piece User manual 1 copy... - Page 15 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd...
