DSPPA Public Address Series Quick Start Manual

Indoor column speaker

The information is subject to change without prior notice.

Guangzhou DSPPA Audio Co., Ltd

Zip code：510150

Tel：400-800-0230

website：www.dsppa.com

address：NO.1 XIAHELU, JIANGGAO TOWN,

BAIYUN DISTRICT, GUANGZHOU, CHINA

Public Address Series -

Indoor Column Speaker

DSP203Ⅱ

DSP403Ⅱ

Guangzhou DSPPA audio Co., Ltd

DSP203Ⅱ

DSP403Ⅱ

Table of Contents

Need help?

Do you have a question about the Public Address Series and is the answer not in the manual?

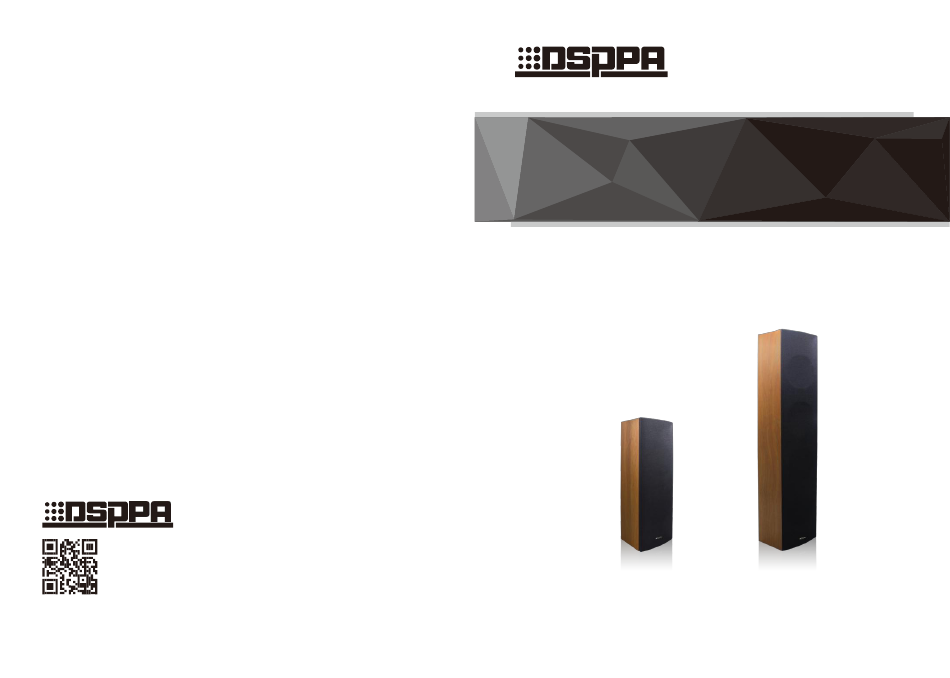

Page 1 The information is subject to change without prior notice. Public Address Series - Indoor Column Speaker DSP203Ⅱ DSP403Ⅱ Guangzhou DSPPA Audio Co., Ltd Zip code：510150 Tel：400-800-0230 website：www.dsppa.com DSP203Ⅱ DSP403Ⅱ address：NO.1 XIAHELU, JIANGGAO TOWN, BAIYUN DISTRICT, GUANGZHOU, CHINA Guangzhou DSPPA audio Co., Ltd...
Page 2 Preface Thank you for choosing of DSPPA audio loudspeaker products. All DSPPA products have passed rigorous tests before leaving the factory. DSPPA public address loudspeakers are widely used in schools, stadiums, squares, parks, car parks, railway stations, airports, villas, shopping malls. It is the ideal choice for you to Surface net purchase DSPPA public broadcasting loudspeakers.
Page 3 Installation instruction Common port 100V Unit：mm Note：70V and 100V port can be connected at the size mode same time DSP203Ⅱ DSP403Ⅱ Pic. 2 Pic. 3 ① Choose a proper place in a vertical surface where the speaker will be installed on and put a nail with diameter 4mm. The distance between the nail cap and the wall should be 4-6mm(as Pic.1 shows).
Page 4 Packing list Technical indicator Component Quantity Frequency response (dB SPL、1W、1m) Indoor column speaker Manual Certificate Warranty card Distortion (THD< 1.5% 1W、1m、200Hz-10kHz) Specification Model DSP203Ⅱ DSP403Ⅱ Speaker unit 4"×2 4"×4 Freq. range 140Hz-12kHz 140Hz-12kHz Sensitivity (1m,1W) 90dB±2dB 94dB±2dB Maximum SP( 1m) 99dB±2dB 108dB±2dB Rated power...

Dsp203 iiDsp403 ii
