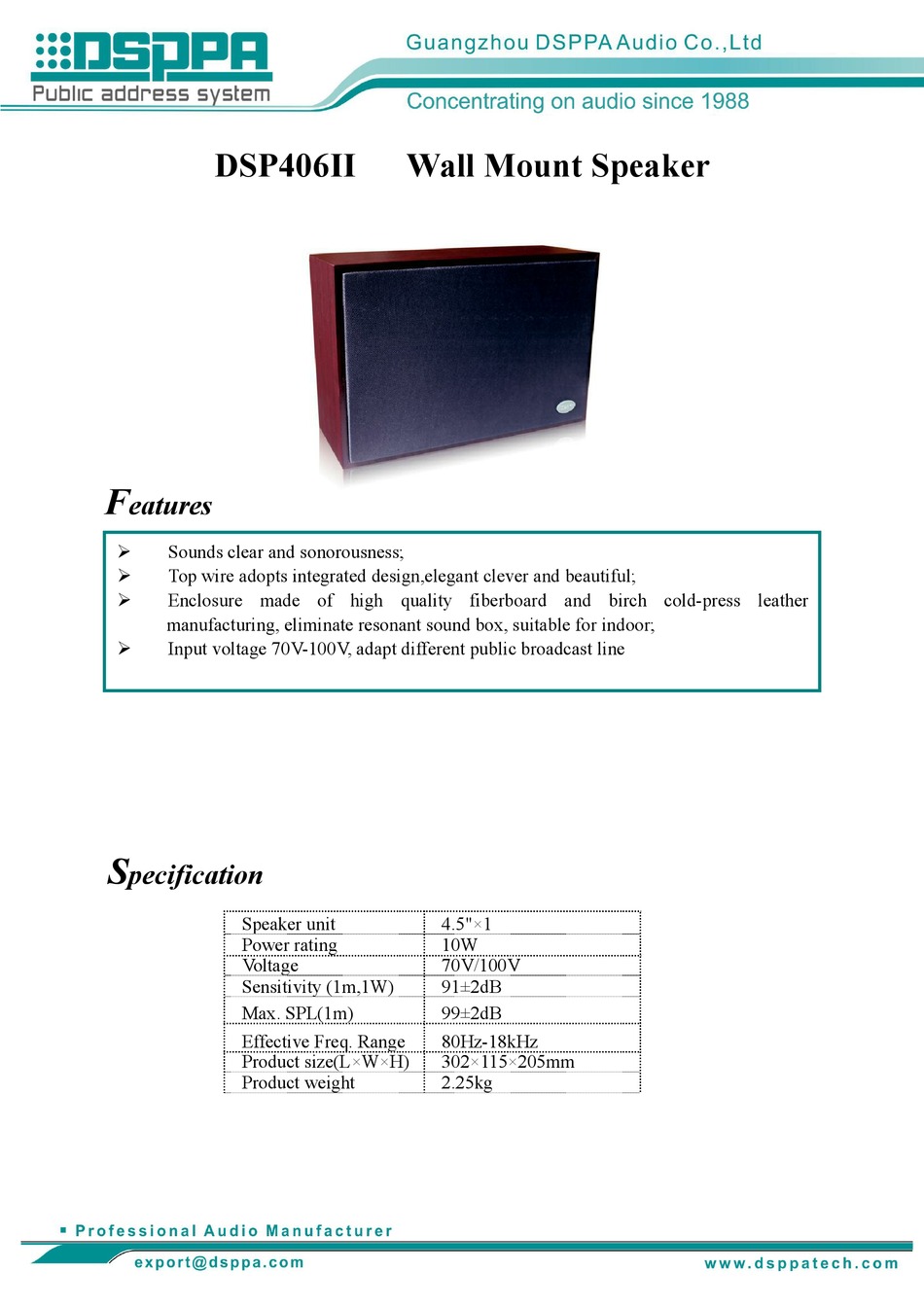

DSP406II
F
eatures
Sounds clear and sonorousness;
Top wire adopts integrated design,elegant clever and beautiful;
Enclosure made of high quality fiberboard and birch cold-press leather
manufacturing, eliminate resonant sound box, suitable for indoor;
Input voltage 70V-100V, adapt different public broadcast line
S
pecification
Speaker unit
Power rating
Voltage
Sensitivity (1m,1W)
Max. SPL(1m)
Effective Freq. Range
Product size(L×W×H)
Product weight

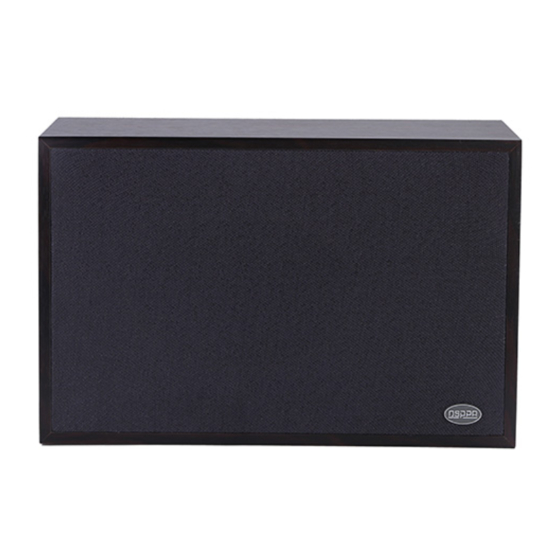

Wall Mount Speaker
4.5"×1
10W
70V/100V
91±2dB
99±2dB
80Hz-18kHz
302×115×205mm
2.25kg
Advertisement
Table of Contents
Related Manuals for DSPPA DSP406II
Summary of Contents for DSPPA DSP406II
- Page 1 DSP406II Wall Mount Speaker eatures Sounds clear and sonorousness; Top wire adopts integrated design,elegant clever and beautiful; Enclosure made of high quality fiberboard and birch cold-press leather manufacturing, eliminate resonant sound box, suitable for indoor; Input voltage 70V-100V, adapt different public broadcast line ...
- Page 2 Installation The unit: mm size Length Width Height Model DSP406Ⅱ The unit: mm Installation 60mm 4-6mm 13mm Figure 1...
- Page 3 Black:70V-100V Red:Com Figure 2 Figure 3 ① Fit two Ø4mm nail on wall where it is needed to install a speaker system as shown above； ② Connect audio broadcasting wire to the terminals according to the table below. Power Line Voltage 100V Terminals Red-Black...
