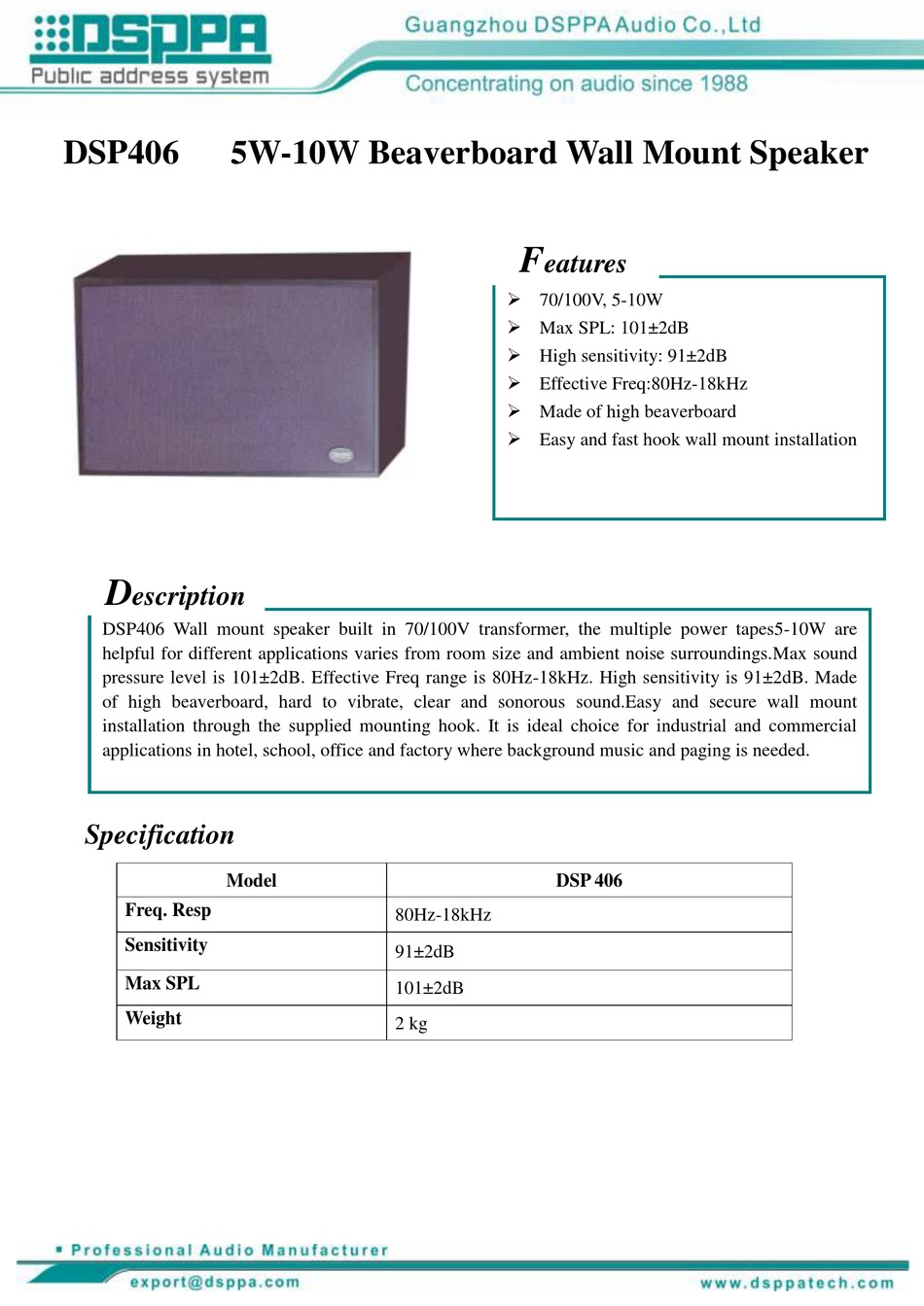

DSPPA DSP406 Quick Start Manual

5w-10w beaverboard wall mount speaker

DSP406

5W-10W Beaverboard Wall Mount Speaker

escription

DSP406 Wall mount speaker built in 70/100V transformer, the multiple power tapes5-10W are

helpful for different applications varies from room size and ambient noise surroundings.Max sound

pressure level is 101± 2dB. Effective Freq range is 80Hz-18kHz. High sensitivity is 91± 2dB. Made

of high beaverboard, hard to vibrate, clear and sonorous sound.Easy and secure wall mount

Installation through the supplied mounting hook. It is ideal choice for industrial and commercial

applications in hotel, school, office and factory where background music and paging is needed.

Model

Freq. Resp

Sensitivity

Max SPL

Weight

eatures

 70/100V, 5-10W

 Max SPL: 101± 2dB

 High sensitivity: 91± 2dB

 Effective Freq:80Hz-18kHz

 Made of high beaverboard

 Easy and fast hook wall mount installation

DSP 406

80Hz-18kHz

91± 2dB

101± 2dB

2 kg

Table of Contents

Need help?

Do you have a question about the DSP406 and is the answer not in the manual?

Page 1  Easy and fast hook wall mount installation escription DSP406 Wall mount speaker built in 70/100V transformer, the multiple power tapes5-10W are helpful for different applications varies from room size and ambient noise surroundings.Max sound pressure level is 101± 2dB. Effective Freq range is 80Hz-18kHz. High sensitivity is 91± 2dB. Made of high beaverboard, hard to vibrate, clear and sonorous sound.Easy and secure wall mount...
Page 2 Installation 1. Fit two Ø4mm nails on wall where it is needed to install a speaker system as shown above. 2. Connect audio broadcasting wire to the terminals according to the table below. Line Power 100V Voltage Terminals Red-Black 3. Position the speaker, then adjust the direction of it and examine whether it is steady. Freq.
