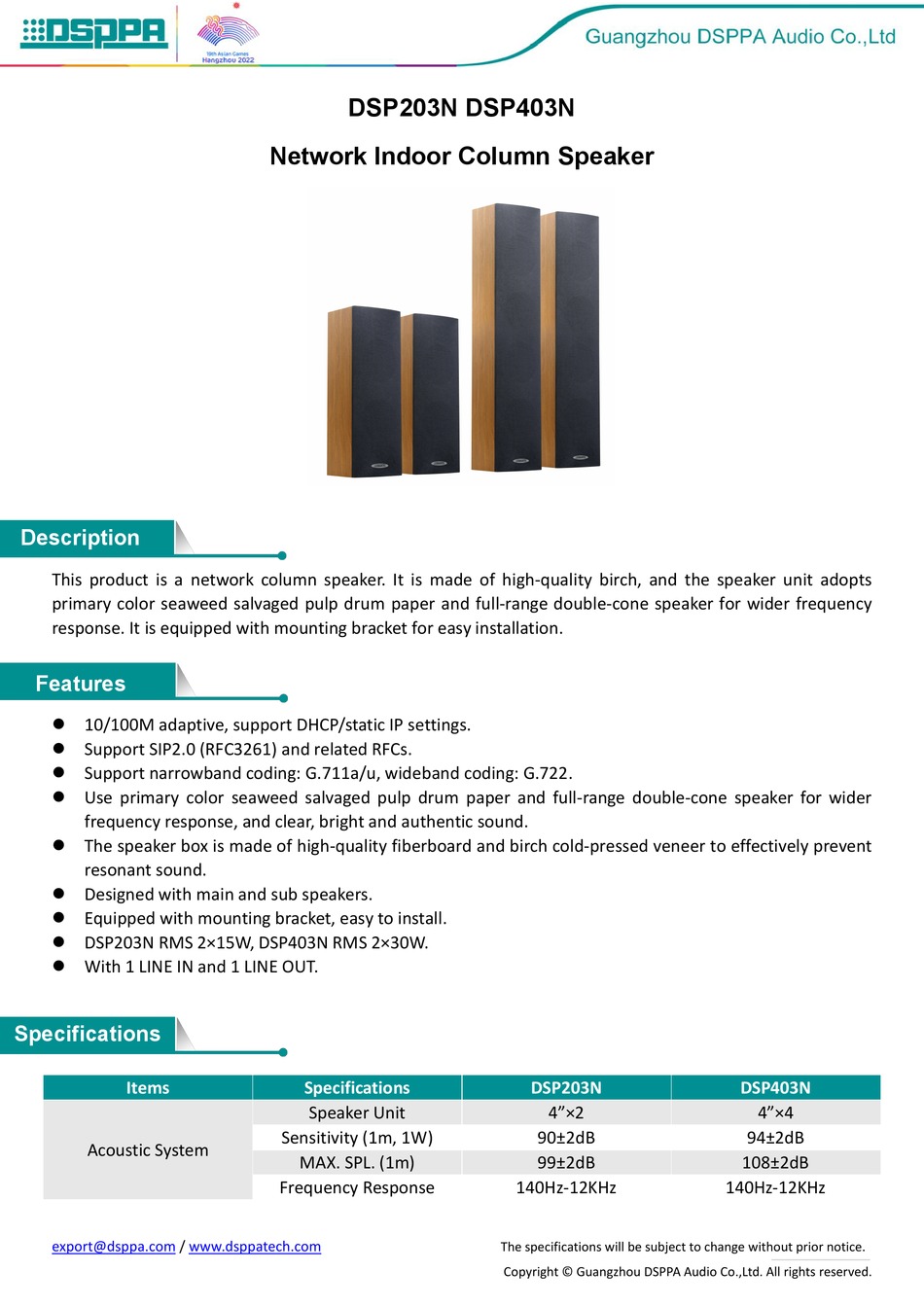

DSPPA DSP203N Quick Start Manual

DSPPA DSP203N Quick Start Manual

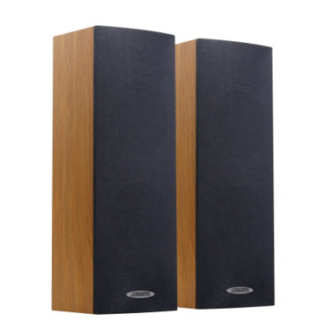

Network indoor column speaker

Advertisement

Quick Links

Description
This product is a network column speaker. It is made of high-quality birch, and the speaker unit adopts
primary color seaweed salvaged pulp drum paper and full-range double-cone speaker for wider frequency
response. It is equipped with mounting bracket for easy installation.
Features
 10/100M adaptive, support DHCP/static IP settings.
 Support SIP2.0 (RFC3261) and related RFCs.
 Support narrowband coding: G.711a/u, wideband coding: G.722.
 Use primary color seaweed salvaged pulp drum paper and full-range double-cone speaker for wider
frequency response, and clear, bright and authentic sound.
 The speaker box is made of high-quality fiberboard and birch cold-pressed veneer to effectively prevent
resonant sound.
 Designed with main and sub speakers.
 Equipped with mounting bracket, easy to install.
 DSP203N RMS 2×15W, DSP403N RMS 2×30W.
 With 1 LINE IN and 1 LINE OUT.
Specifications
Items
Acoustic System
export@dsppa.com
/
DSP203N DSP403N
Network Indoor Column Speaker
Specifications
Speaker Unit
Sensitivity (1m, 1W)
MAX. SPL. (1m)
Frequency Response
www.dsppatech.com
DSP203N
4"×2
90±2dB
99±2dB
140Hz-12KHz
The specifications will be subject to change without prior notice.
Copyright © Guangzhou DSPPA Audio Co.,Ltd. All rights reserved.
DSP403N
4"×4
94±2dB
108±2dB
140Hz-12KHz

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSP203N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DSPPA DSP203N

  • Page 1 Speaker Unit 4”×2 4”×4 Sensitivity (1m, 1W) 90±2dB 94±2dB Acoustic System MAX. SPL. (1m) 99±2dB 108±2dB Frequency Response 140Hz-12KHz 140Hz-12KHz export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd. All rights reserved.
  • Page 2 RFC3261, RTP, RTSP, RTCP, UPnP. Power Input ~100-240V 50Hz/60Hz 1A Dimensions (H×W×D) 390×138×120mm 682×138×120mm Weight 3.0kg 5.0kg Production Information export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd. All rights reserved.
  • Page 3 Technical Parameters export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd. All rights reserved.
  • Page 4 ⑥ Finally, adjust the angle of the speaker, check whether the speaker is installed firmly, and complete the installation. export@dsppa.com www.dsppatech.com The specifications will be subject to change without prior notice. Copyright © Guangzhou DSPPA Audio Co.,Ltd. All rights reserved.

This manual is also suitable for:

Dsp403n
