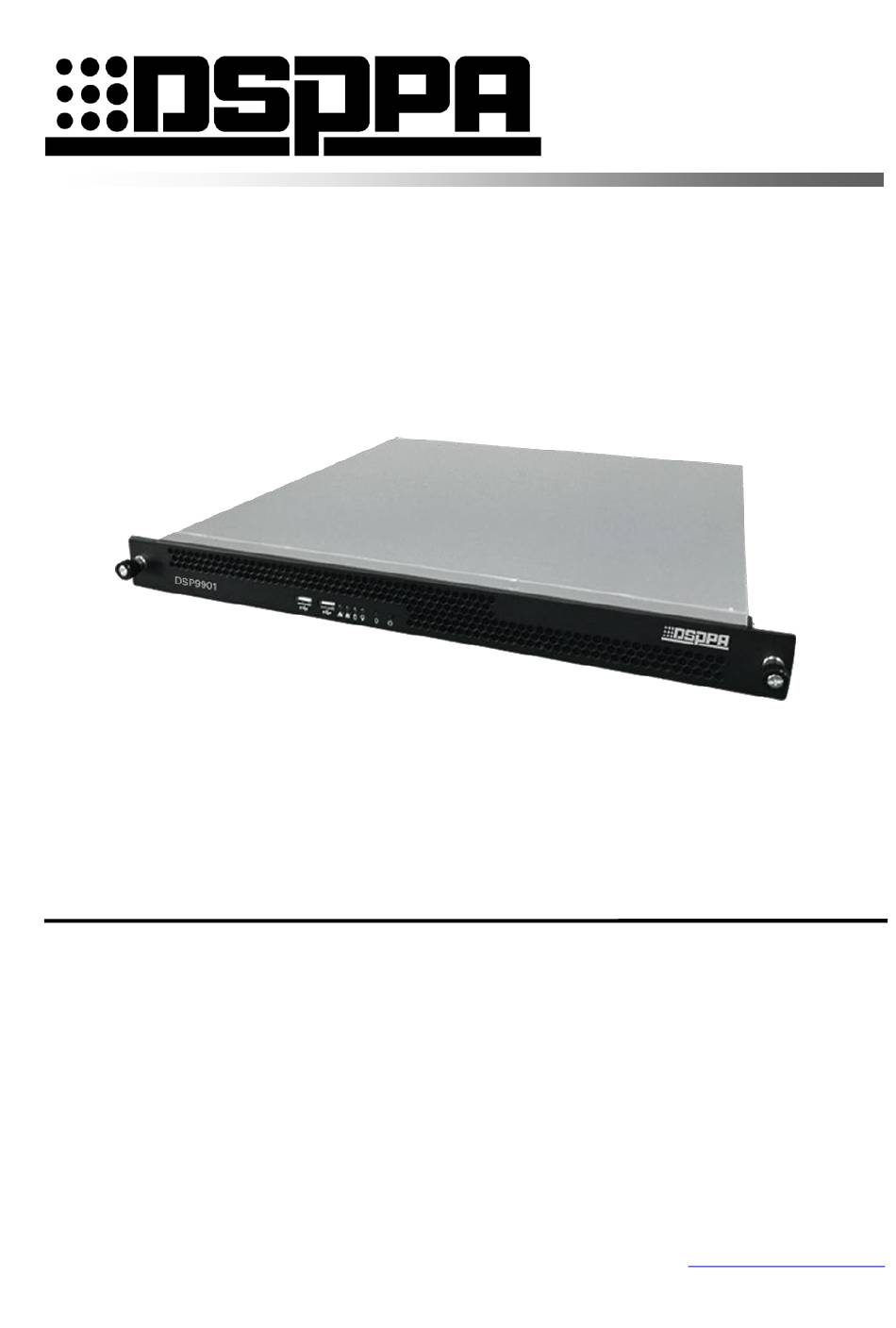

- Page 1 Intelligent School System A/V All in One Intelligent Host DSP9901 User Manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. Guangzhou DSPPA Audio Co., Ltd. http://www.DSPPA.com...
- Page 2 Matters needing attention Please read the following before operating the product. Warning The following basic requirements must be strictly observed, to avoid potential personal injury and equipment or property damages to you or any person nearby. The basic requirements include without limitation to the following: Power source/power cable When abnormal conditions are realized...
-
Page 3: Table Of Contents
A/V All in One Intelligent Host Content http://www.dsppatech.com ............................1 System Introduction............................1 2 System Topology ..............................1 3. System Function ..............................2 3.1 A/V Broadcast .............................. 2 3.2 Paging business ............................2 3.3 Audio and video live ............................. 2 3.4 Interactive class ............................ -
Page 4: Http://Www.dsppatech.com
A/V All in One Intelligent Host 1. System Introduction A/V All in One Intelligent school system is an integrated system that combines transmission and control of audio and video and recording. It has super strong coding and decoding capacity which satisfies the need of A/V broadcast, A/V live, A/V interaction, recording and intelligent control. -
Page 5: System Function
A/V All in One Intelligent Host 3. System Function 3.1 A/V Broadcast 1) With timing function 2) Support simultaneous play of 64 channels of audio and video stream; 3) Support prevailing audio and video formats, support creating program source and uploading to PC software; 4) Support public space and private space of program source. -
Page 6: Interactive Class
A/V All in One Intelligent Host 3.4 Interactive class 1) With timing function; 2) Support signal stitching of 2 channels of SDI and 3 channels of HDMI 3) Three modes: Single screen, Power mode, and Three screen; 4) Support double stream mode; 5) Support camera tracking mode;... -
Page 7: Fire Broadcast
A/V All in One Intelligent Host 6) Support open, control, and open degree of curtains. 3.7 Fire broadcast 1) Support 32-channel fire signal of fire alarm machine; 2) IP communication, easy to deploy; 3) Extendable to 32 fire alarm machines; 4) Support audio fire broadcast and video fire broadcast. -
Page 8: System Log
A/V All in One Intelligent Host Interactive class Business broadcast, could be interrupted by fire broadcast and paging broadcast, and could restore after being interrupted Class recording Business broadcast, could be interrupted by fire broadcast and paging broadcast, and could restore after being interrupted 3.10 System log 1) Support search by requirements;... -
Page 9: Function Introduction
A/V All in One Intelligent Host 4.2 Function introduction Terminal control, task management, resource management, device management, user management, system log, and network settings. 4.2.1 Terminal control After logging in, you will see the following control interface: File play To play audio and video files. Click “File play” and choose classrooms and programs. Online live To give live broadcast and interaction among classrooms and to save class videos. - Page 10 A/V All in One Intelligent Host and on the right is Host recording) Interactive class To make interaction among classrooms. Click “Interactive class” and you will be able to choose mode (Single screen, Movie, Three screen, Double stream), host recording (Not record and Host record), live time, main classroom and sub-classrooms.
- Page 11 A/V All in One Intelligent Host Playback progress To show playback progress of audio and video. Select all To select all devices except offline device. When selected, the border will turn yellow.
- Page 12 A/V All in One Intelligent Host Stop Select working device and click “Stop” and the device will stop playing. When the device is playing, it is orange. When stop, it is green. Search Click “Search” and the window will pop up. Input device name and star searching. Task Management Click “Task Management”...
- Page 13 A/V All in One Intelligent Host cannot be deleted.) Timing task After choosing scheme, you can set up timing task. Input task name to view its timing point. “Modify” is to modify name and “Delete” is to delete timing point that is not needed. Click “Create timing point”...
-
Page 14: Resource Management
A/V All in One Intelligent Host 4.2.2 Resource management Click “Resource management” and you will see the following interface, including Teaching resource and My resource. Teaching resource Mainly are public resources. “Preview” is to preview video. “Download” is to download video. “Rename” is to rename file. -
Page 15: My Resource
A/V All in One Intelligent Host Note: files in recording directory of teaching resource is the ones when there is no user name. 4.3.3 My resource To view the program source of private account. “Preview” is to preview video. “Download” is to download video. -
Page 16: Device Management
A/V All in One Intelligent Host 4.3.4 Device management Click “Device management” to enter the interface. You can sort and rename devices. “Delete” is to delete offline devices. 4.3.5 User Management Click “User management” to enter the interface. You can set up basic information and user access. - Page 17 A/V All in One Intelligent Host Account management To modify current account. Click “Edit” and the window will pop up. You can change user information. “Delete” is to delete the selected account. Permission management To set up permissions. Click “Edit”. Then you can change character name, module settings and permission settings.
-
Page 18: System Log
A/V All in One Intelligent Host 4.3.6 System log Click “System log” to enter the interface. You can view and delete logs. “Log level” is to view level of logs. 4.3.7 Network settings Click “Network settings” to enter the interface. You can modify IP address, subnet, and gateway. -
Page 19: 2． Matters Needing Attention
A/V All in One Intelligent Host Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device, otherwise the device may be damaged. - Page 20 A/V All in One Intelligent Host...
-
Page 21: Packing List
A/V All in One Intelligent Host Packing List List Quantity DSP9901 Intelligent host User manual Certificate Warranty card 4*8 countersunk head screw Specification Note: The performance specifications are subject to changes without further notification. Operation System Linux server IntelXeon E5-2600V3/V4,15MB cache Processor 2T 7200 RPM SATAIII 3.5 inch Hard disk... - Page 22 ● All terminals on the device marked with are live and dangerous, and should be connected by trained Guangzhou DSPPA Audio Co., Ltd personnel. ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access.
