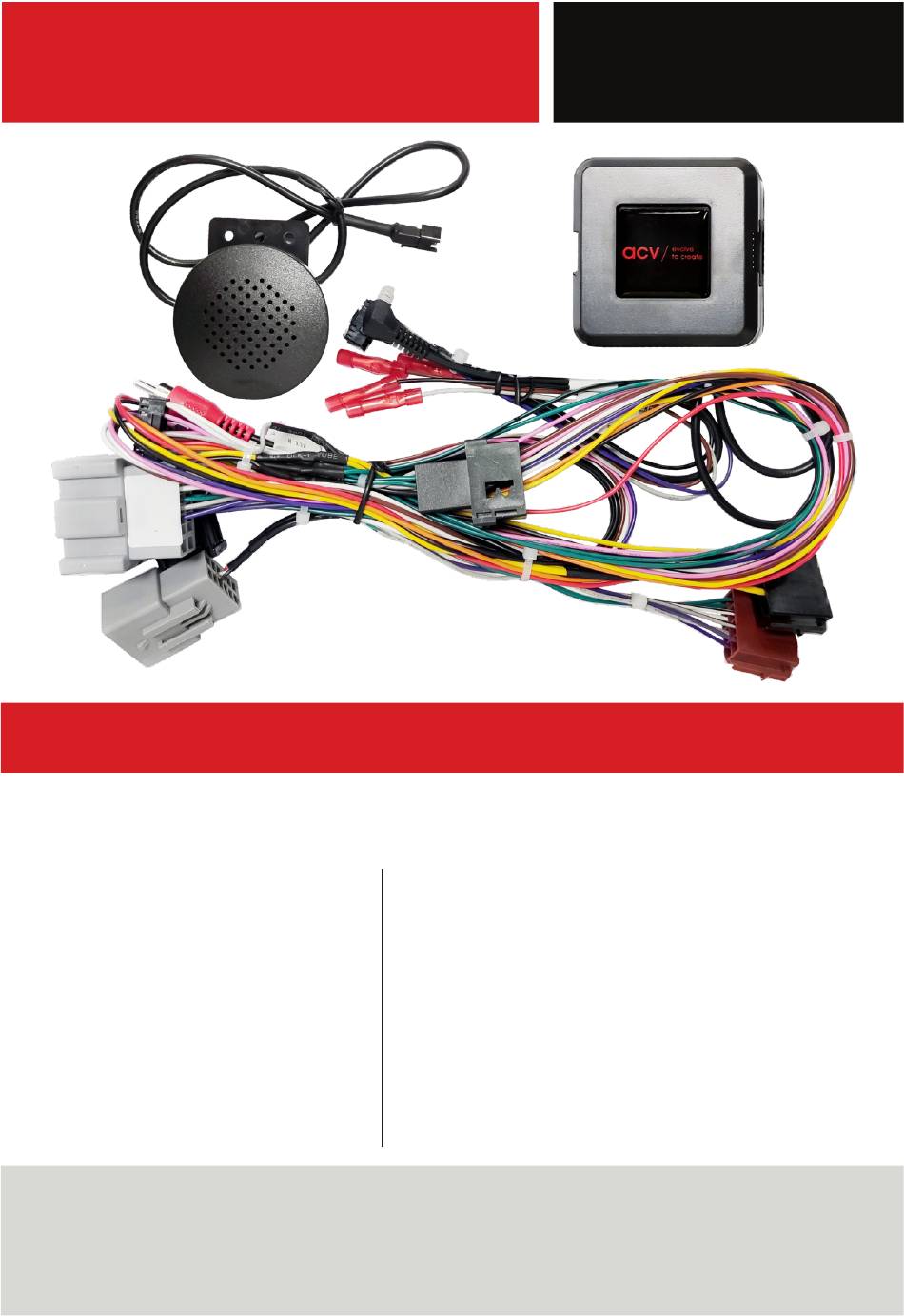

STEERING WHEEL CONTROL INTERFACE
FOR FORD VEHICLES
The 42xfo005-0 allows for the retention of the steering wheel controls as well as other vital features when
installing an aftermarket unit into the vehicle. This interface features selectable dipswitches for dedicated
applications, simply refer to the provided table for the correct configuration ensuring seamless integration.
VEHICLE APPLICATION
FORD
Fiesta (JA8) 2008 - 2010
CAN Bus Interface
Vehicles with Visteon OEM HU, OK steering wheel
button functionality, red OEM display
Vehicle settings supported
Installation requires a certain level of technical knowledge. Prior to installation, it is important to read the manual. Select a
location for installation that is dry and free from heat sources. It is essential to use the correct tools during installation to
prevent any damage to the vehicle or the product itself. Please note that we cannot be held liable for any issues arising
Before proceeding with installation, disconnect the negative battery terminal and ensure the key is removed from the ignition.
I N S T A L L A T I O N G U I D E
KEY FEATURES
• RETAIN STEERING WHEEL CONTROL FUNCTIONALITY
• REPLACE FACTORY RADIO
• OUTPUTS FOR SPEED PULSE, REVERSE & PARK BRAKE
• RETAINS TIME & DATE SETTINGS
• RETAINS PARKING SENSOR AUDIO
• SOFTWARE UPDATEABLE
• REMAPPABLE BUTTONS
PRIOR TO INSTALLATION
from improper installation.
42xfo005-0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACV 42xfo005-0
Summary of Contents for ACV 42xfo005-0
- Page 1 I N S T A L L A T I O N G U I D E The 42xfo005-0 allows for the retention of the steering wheel controls as well as other vital features when installing an aftermarket unit into the vehicle. This interface features selectable dipswitches for dedicated applications, simply refer to the provided table for the correct configuration ensuring seamless integration.
- Page 2 WIRING KEY Purple Right Rear Speaker + Grey Right Front Speaker + Yellow Permanent 12V ISO CONNECTOR Purple/Black Right Rear Speaker - Grey/Black Right Front Speaker - Black Ground WIRING KEY Green White Left Rear Speaker + Left Front Speaker + Ignition 12V Green/Black Left Rear Speaker - White/Black Left Front Speaker -...
- Page 3 CONNECTION GUIDE BEFORE INSTALLATION Prior to installing the interface, it is essential to remove and disconnect the factory stereo. For guidance on this process, please refer to the vehicle owner’s manual/handbook or seek assistance from a professional. SETTING THE DIPSWITCHES This interface includes a set of dipswitches.
- Page 4 CONNECTION DIAGRAM...
