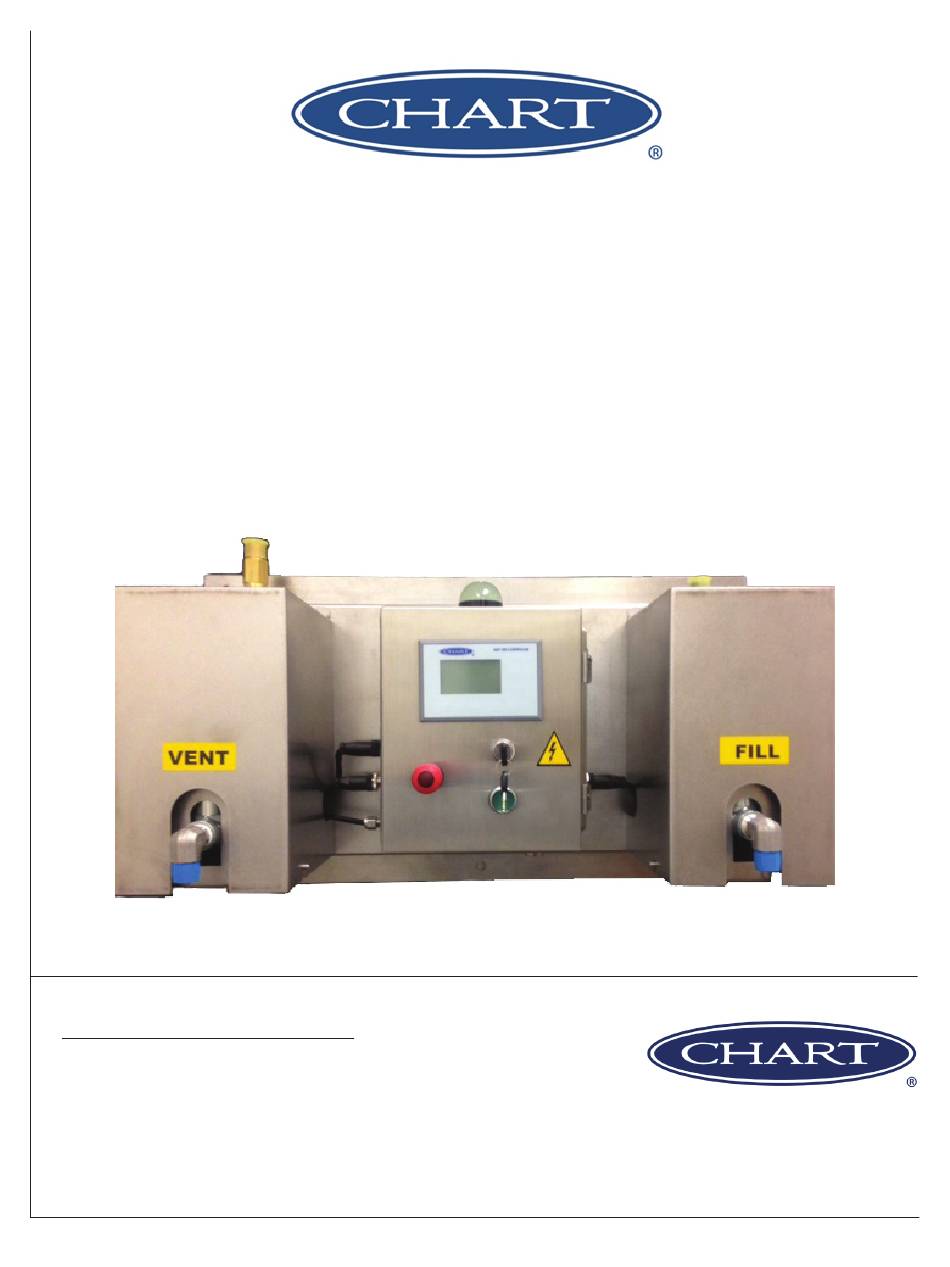

- Page 1 Product Manual ADF105 ™ Automatic Dewar Filling Station Designed and Built by: Chart Inc. 1300 Airport Drive Ball Ground, GA 30107 techservice.dosing@chartindustries.com Part Number 15929 Rev. G © 2025 Chart Inc.
-
Page 3: Table Of Contents
ADF105 Station Dimensions ........ -
Page 4: Revision Log
Table of Contents Product Manual - ADF105 Automatic Dewar Filling Station ™ Revision Log Revision Level Date Description 07/18/2014 Reformat with new layout 07/30/2014 Update cover photo; add wording to Preface ‘not intended for oxygen use’ 11/09/2015 Update address to Fremont, CA 06/09/2017 Change max pressure to 125 psi;... -
Page 5: Preface
The liquid cylinder is ready for immediate • use. wasted labor and downtime The ADF105 station is suitable for indoor and outdoor • facility resources bulk tank. The station is not intended for oxygen use. Product Manual... -
Page 6: Terms
Preface Product Manual - ADF105 Automatic Dewar Filling Station ™ Terms Acronyms / Abbreviations The following acronyms / abbreviations are used throughout as follows: this manual: Warning! Description of a condition that can result in personal injury or Gaseous Nitrogen death. -
Page 7: Safety
The remainder of this safety bulletin addresses those adverse Caution! If the ADF105 system is to be environments that may be encountered when a cryogenic used in a small enclosed area, it container has been severely damaged. -
Page 8: Nitrogen
Safety Product Manual - ADF105 Automatic Dewar Filling Station ™ Nitrogen Warning! Nitrogen vapors in air may dilute the concentration of oxygen necessary to support or sustain life. Exposure to such an oxygen to unconsciousness and serious injury, including death. -
Page 9: Receiving And Installation
Automatic Dewar Filling Station is a manual ™ locating the unit outside of a building. • If the ADF105 station is located in an enclosed area or room, an oxygen monitor and alarm system is highly recommended. Contact Chart at techservice.dosing@ chartindustries.com for information about oxygen... -
Page 10: Adf105 Station Controller
From dewar vent To power cord Figure 1 - ADF 105 connections Light tower ADF105 Station Controller The ADF105 station controller includes a Siemens PLC/ switch switch Note! internal clock will time-out and stop the Push start button... -
Page 11: Operation
Note: Make sure the red EMO button is pulled out. device that senses when there is liquid in the vent side of the ADF105 station. The sensitivity of the device and will shut off when the dewar is full or when the maximum from exiting out of the vent. -
Page 12: Troubleshooting
Operation Product Manual - ADF105 Automatic Dewar Filling Station ™ Troubleshooting dosing@chartindustries.com. Symptom Possible Cause Solution Station starts for a few seconds and Vent is not connected to the dewar or Make sure the vent valve on the dewar then shuts off. -
Page 13: Utility Requirements
Product Manual - ADF105 Automatic Dewar Filling Station ™ Utility Requirements Weight: Liquid Nitrogen: Dimensions: 26.0” L x 14.7” W x 9.7” D Electrical Supply: 100-240 Volt AC 50-60 Hz 110 W Exterior Case: Stainless Steel ADF105 Station Dimensions ADF105 Station Components... -
Page 14: Mechanical Schematic
™ Mechanical Schematic Liquid Nitrogen Service Valve 1 psi check valve Cryogenic Switch Vent Solenoid Input Solenoid Valve Safety Relief Valve Low Pressure Switch 150 psi Vent Port Liquid Port... -
Page 15: Controller Wiring Schematic
™ Controller Wiring Schematic... -
Page 16: Replacement Parts
SRV, 150 psi C6010.4 Check Valve, 1 psi C6127 Thermistor Sensor Assembly CR_8000.19 Thermistor Cable Assembly 8000.31 Low Pressure Switch Tubing CR_2273 ADF105 Station Controller Parts Controller Assembly 8000.30 Display 5560.14 EMO Switch 8000.34 Start Button (green) 8000.33 Key Switch 8000.22... -
Page 17: Warranty
OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, OTHER THAN OR WHICH EXTEND THOSE WARRANTIES EXPRESSED ADF105, and, if said ADF105 station is found defective, result of the use, sale, or lease of the ADF105 station.
